Fit with a Thiele-Innes Basis

This example shows how to fit relative astrometry using a Thiele-Innes orbital parameterization instead of the traditional Campbell parameterization used in other tutorials. Thiele-Innes replaces the semi-major axis a and the angular elements (inclination i, longitude of ascending node Ω, and argument of periastron ω) with the four Thiele-Innes constants (A, B, F, G). This avoids the coordinate singularities where ω, Ω, and tp become poorly defined as eccentricity and/or inclination approach zero. It implies quite a different prior than uniform-in-Campbell though, so choose thoughtfully.

At the end, we will convert our results back into the Campbell parameterization to compare.

using Octofitter
using CairoMakie
using PairPlots
using Distributions
using PlanetOrbits

astrom_dat = Table(;
    epoch = [50000, 50120, 50240, 50360, 50480, 50600, 50720, 50840],
    ra    = [-505.7637580573554, -502.570356287689, -498.2089148883798, -492.67768482682357, -485.9770335870402, -478.1095526888573, -469.0801731788123, -458.89628893460525],
    dec   = [-66.92982418533026, -37.47217527025044, -7.927548139010479, 21.63557115669823, 51.147204404903704, 80.53589069730698, 109.72870493064629, 138.65128697876773],
    σ_ra  = [10, 10, 10, 10, 10, 10, 10, 10],
    σ_dec = [10, 10, 10, 10, 10, 10, 10, 10],
    cor   = [0, 0, 0, 0, 0, 0, 0, 0]
)

A = Body(
    name="A",
    variables=@variables begin
        mass ~ truncated(Normal(1.2, 0.1), lower=0.1)
    end
)

planet_b = Body(
    name="b",
    about=A,
    variables=@variables begin
        mass = 0.0
        e ~ Uniform(0.0, 0.5)
        # Thiele-Innes constants A, B, F, G are in milliarcseconds (not AU like semi-major axis).
        # Set the prior width to encompass the expected angular separation of your target.
        # A rough guide: if your astrometry spans ~500 mas, use Normal(0, 1000) or similar.
        A ~ Normal(0, 1000) # milliarcseconds
        B ~ Normal(0, 1000) # milliarcseconds
        F ~ Normal(0, 1000) # milliarcseconds
        G ~ Normal(0, 1000) # milliarcseconds

        # Convert to the size and orientation elements. `plx` is needed because
        # the constants are in angular units.
        ti = PlanetOrbits.ThieleInnes(; A, B, F, G, plx=system.plx)
        a = ti.a
        i = ti.i
        ω = ti.ω
        Ω = ti.Ω

        θ ~ UniformCircular()
        epoch = 50000.0   # reference epoch for θ. Choose an MJD date near your data.
    end
)

astrom_obs = RelAstromObs(
    astrom_dat;
    target = planet_b,
    ref = A,
    name = "GPI",
    variables = @variables begin
        # Fixed values for this example - could be free variables:
        jitter = 0        # mas [could use: jitter ~ Uniform(0, 10)]
        northangle = 0    # radians [could use: northangle ~ Normal(0, deg2rad(1))]
        platescale = 1    # relative [could use: platescale ~ truncated(Normal(1, 0.01), lower=0)]
    end
)

sys = System(
    name="TutoriaPrime",
    bodies=[A, planet_b],
    observations=[astrom_obs],
    variables=@variables begin
        plx ~ truncated(Normal(50.0, 0.02), lower=0.1)
    end
)

model = Octofitter.LogDensityModel(sys)

LogDensityModel for System TutoriaPrime of dimension 9 and 8 epochs with fields .ℓπcallback and .∇ℓπcallback

Initialize the starting points, and confirm the data are entered correcly:

init_chain = initialize!(model)

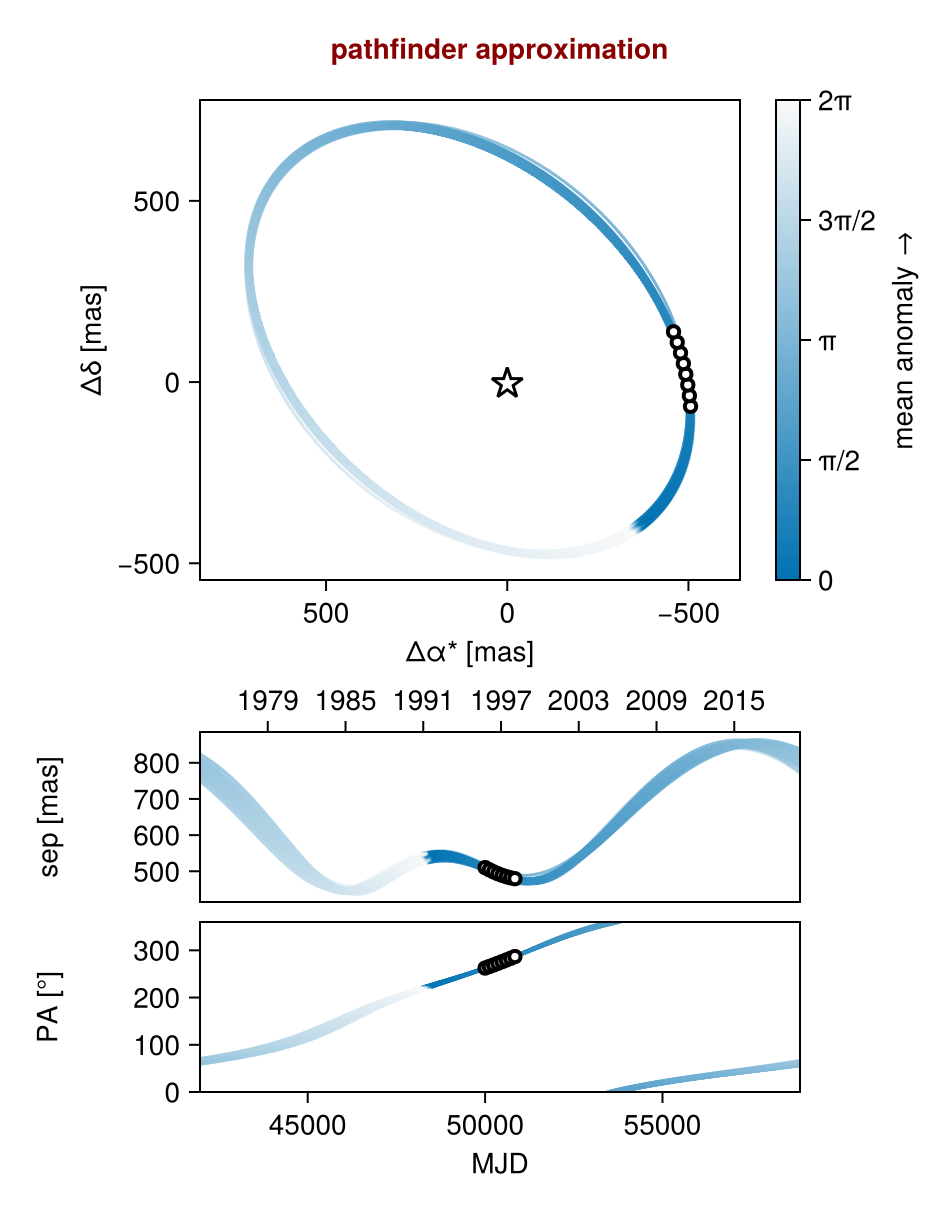

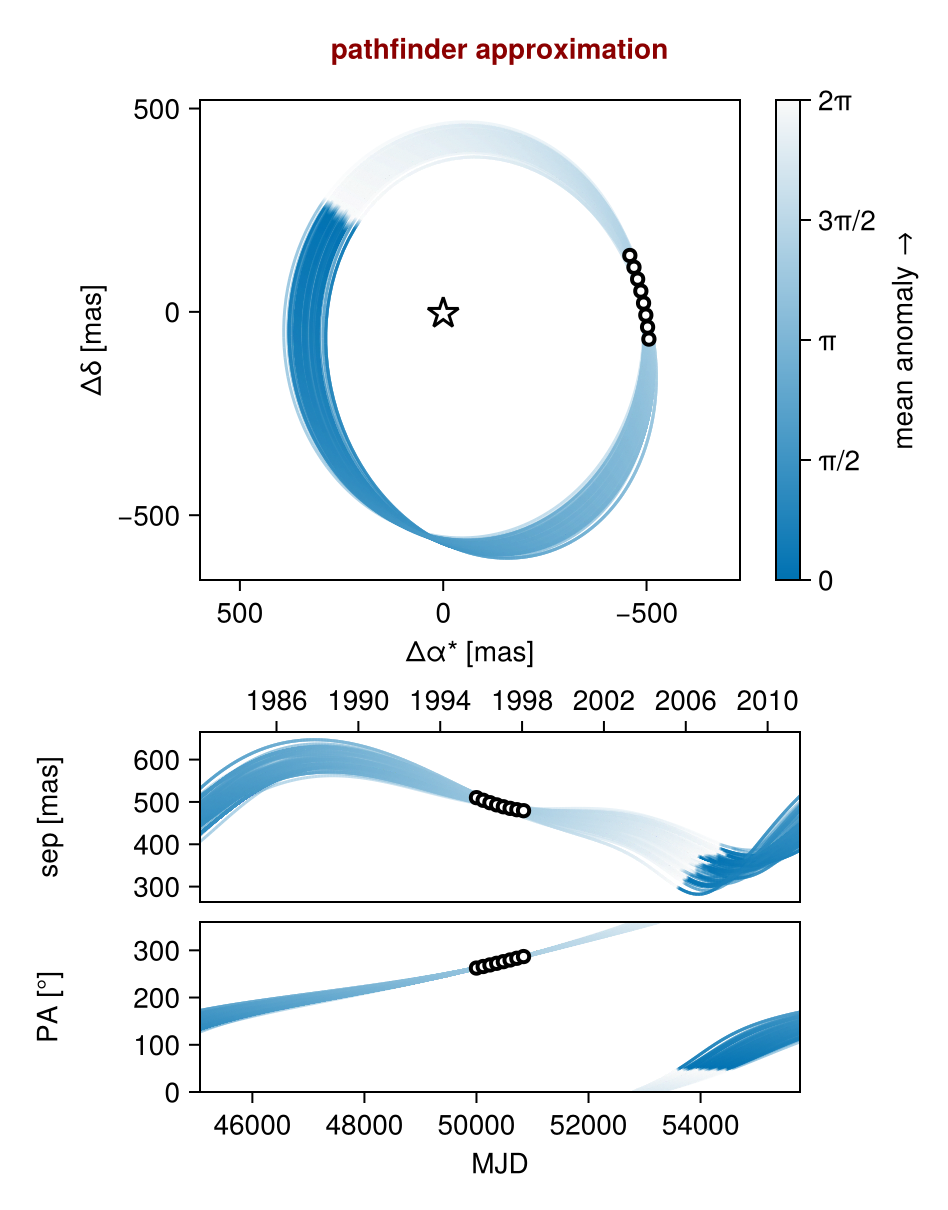

octoplot(model, init_chain)

We now sample from the model as usual:

results = octofit(model)

Chains MCMC chain (1000×33×1 Array{Float64, 3}):

Iterations        = 1:1:1000
Number of chains  = 1
Samples per chain = 1000
Wall duration     = 2.66 seconds
Compute duration  = 2.66 seconds
parameters        = plx, A_mass, b_e, b_A, b_B, b_F, b_G, b_θx, b_θy, b_θ, b_mass, b_a, b_i, b_ω, b_Ω, b_epoch, GPI_jitter, GPI_northangle, GPI_platescale
internals         = n_steps, is_accept, acceptance_rate, hamiltonian_energy, hamiltonian_energy_error, max_hamiltonian_energy_error, tree_depth, numerical_error, step_size, nom_step_size, is_adapt, loglike, logprior, logpost, tree_depth, numerical_error

Use `describe(chains)` for summary statistics and quantiles.

We now display the results:

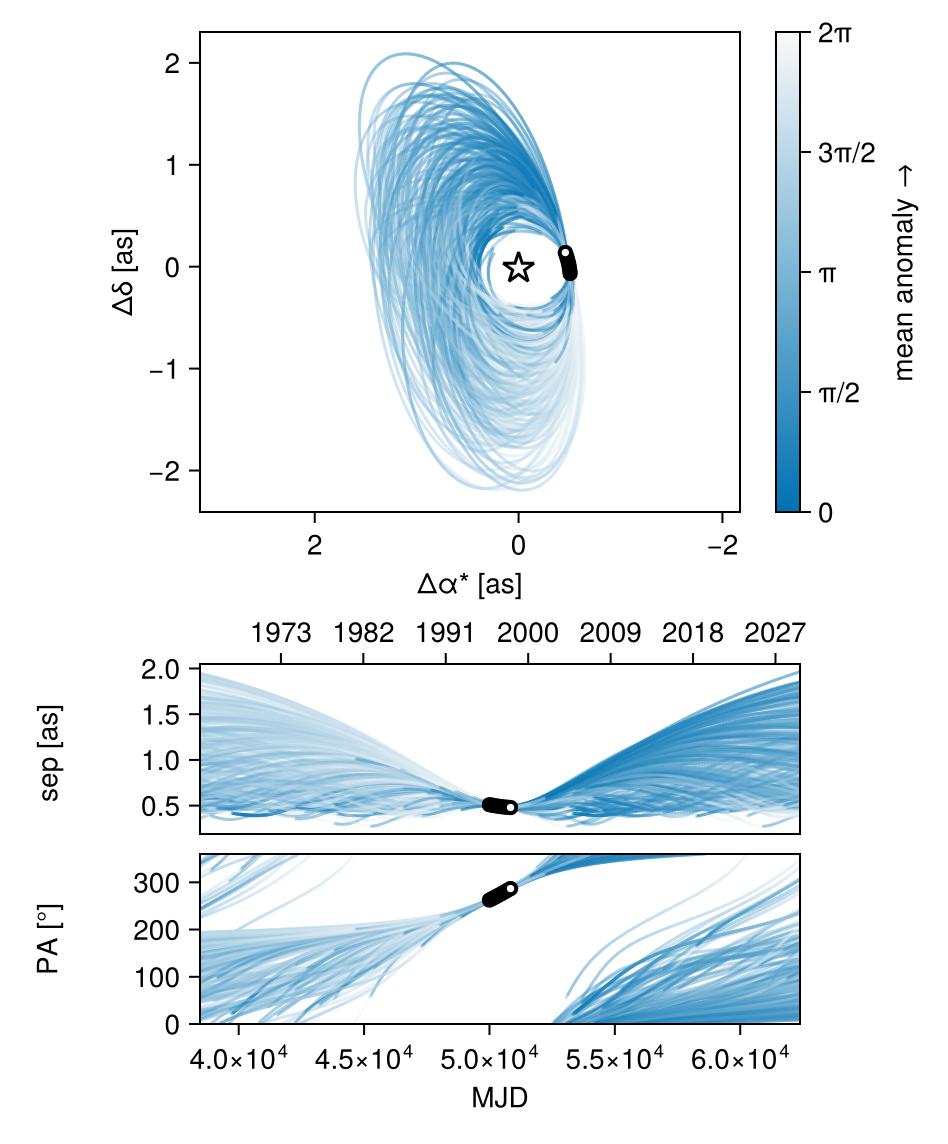

octoplot(model,results)

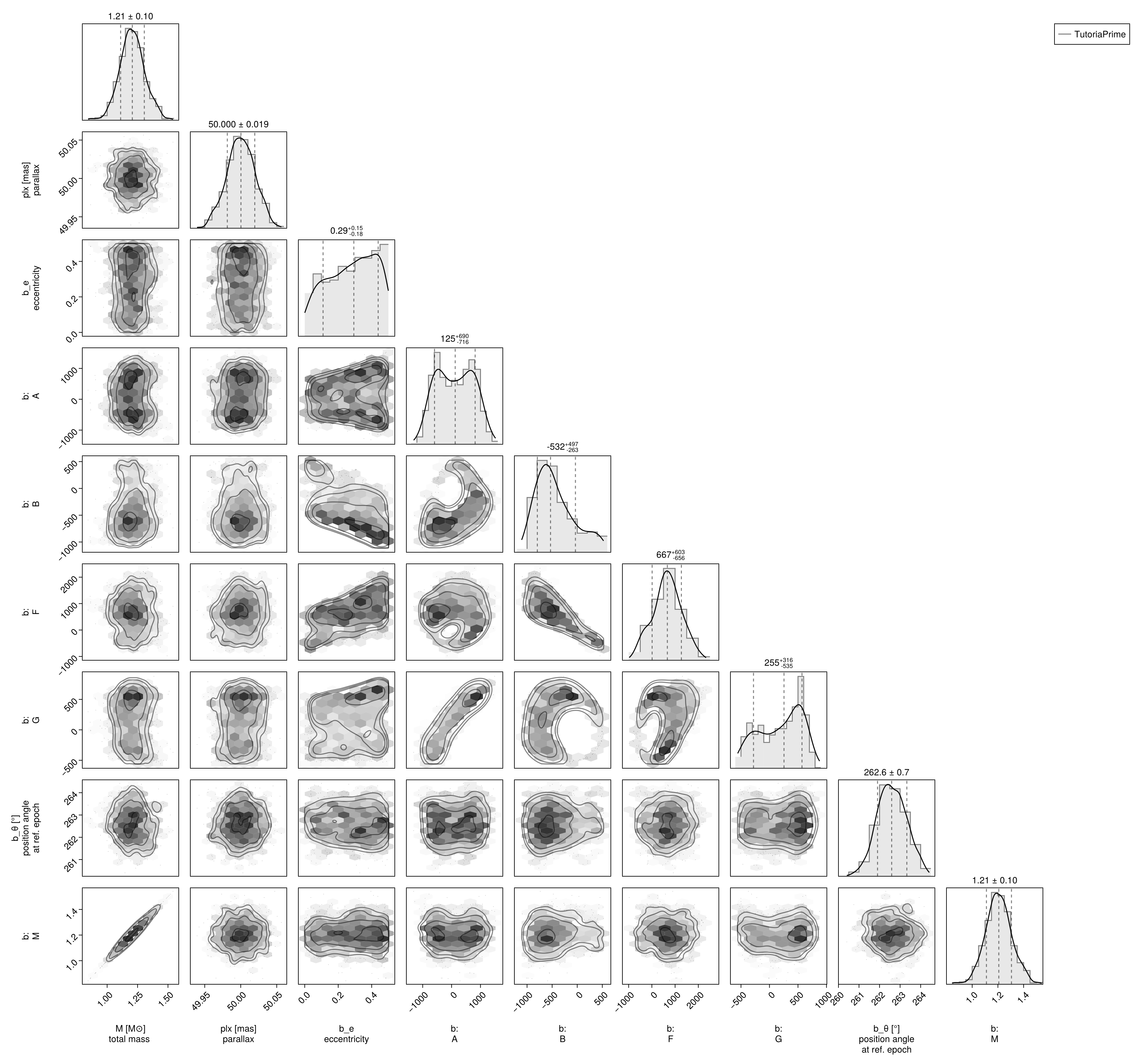

octocorner(model, results, small=false)

Working in Campbell Elements

Because the Campbell elements are ordinary derived variables of this model, they are already in the chain — there is no conversion step:

table = (;
    B_a = results[:b_a][:],
    B_e = results[:b_e][:],
    B_i = rad2deg.(results[:b_i][:]),
)

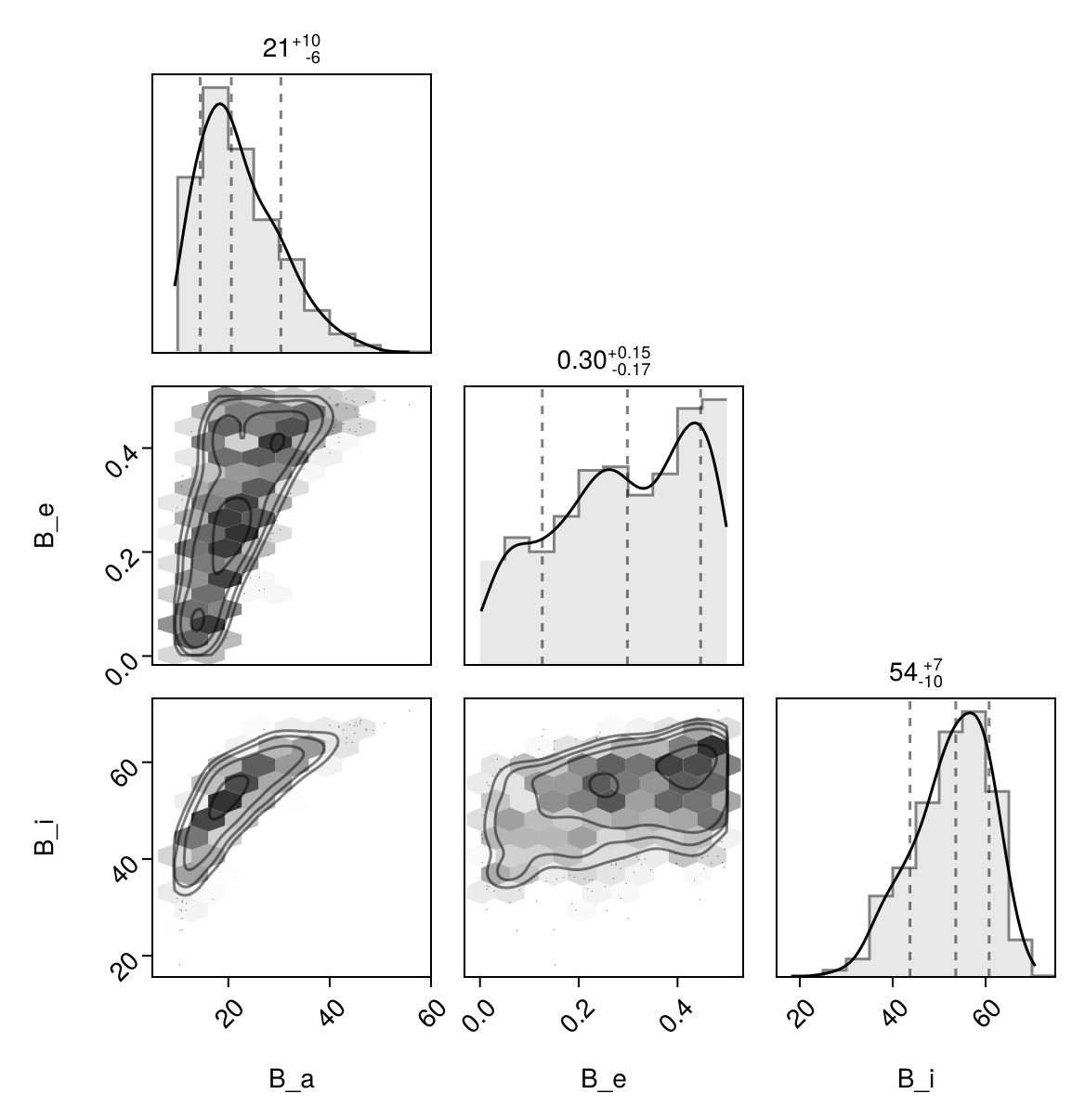

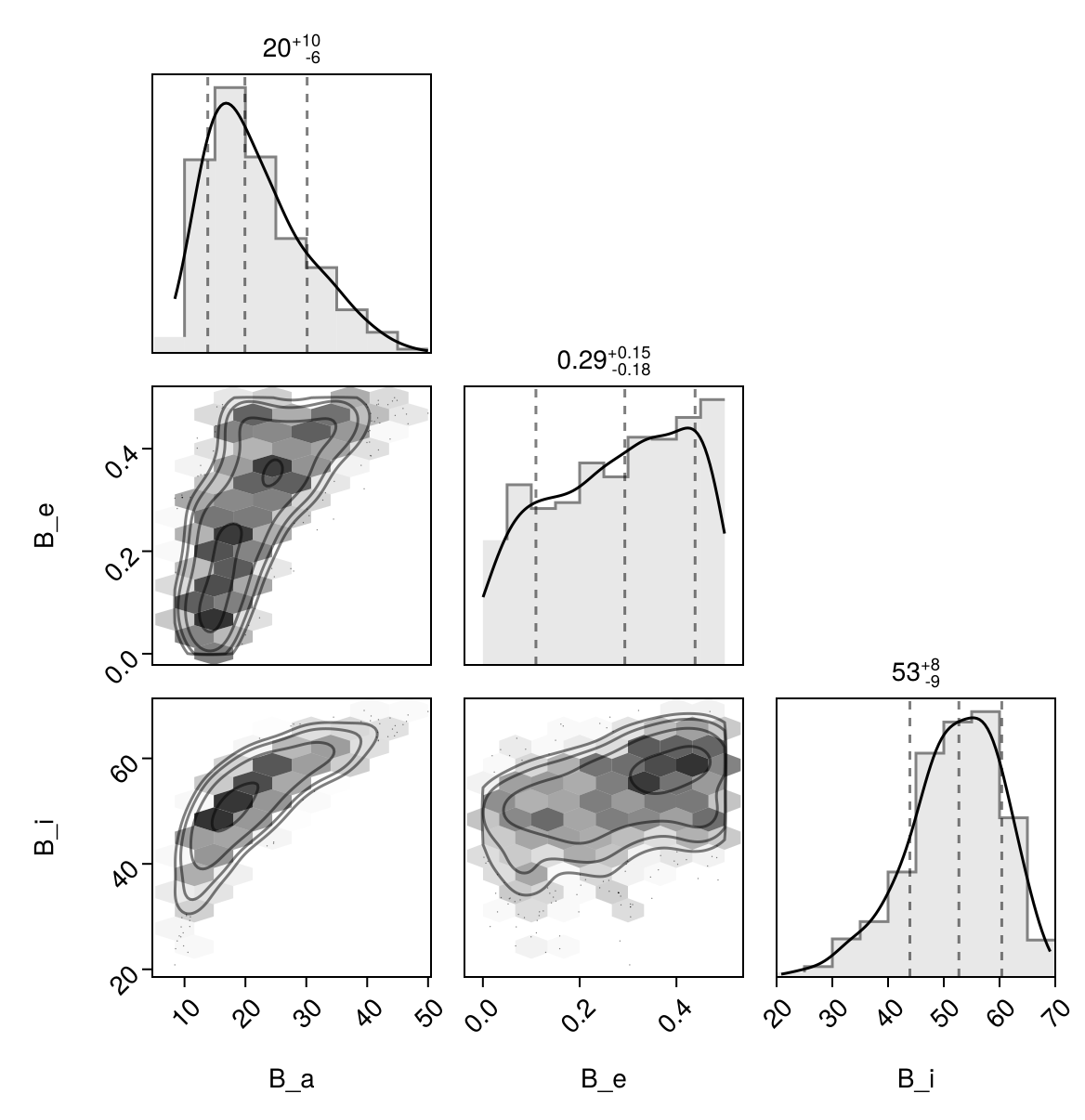

pairplot(table)

You can also just construct the concrete PlanetOrbits.System object for a given draw and query it directly:

posys = construct_system(model, results, 1)
(; a = semimajoraxis(posys, 1),
   e = eccentricity(posys, 1),
   i = rad2deg(inclination(posys, 1)),
   P_days = period(posys, 1))

(a = 15.407332640996355, e = 0.36069118221550395, i = 45.28985319032397, P_days = 20474.547890967548)

The inverse conversion is also available: PlanetOrbits.thieleinnes(posys, 1; plx=50.0) returns the (A, B, F, G) constants of hierarchy row 1 in milliarcseconds.
