Basic Astrometry Fit

Here is a worked example of a one-planet model fit to relative astrometry (positions measured between the planet and the host star).

Start by loading the Octofitter and Distributions packages:

using Octofitter, Distributions

Creating the bodies

We start by specifying what bodies (stars, planets, etc) we want to model. In Octofitter, we specify models using a "probabilistic programming language" Quantities with a ~ are random variables. The distributions on the right hand sides are priors. You must specify a proper prior for any quantity which is allowed to vary. Quantities with an = are derived: constants, or fixed mathematical functions of the other variables. You can also apply priors to derived quantities.

The host star is a body like any other –- start by creating it and specifying its mass in solar masses:

A = Body(
    name="A",
    variables=@variables begin
        mass ~ truncated(Normal(1.2, 0.1), lower=0.1) # [M⊙]
    end
)

Body A  (root)
            mass ~ Truncated(Distributions.Normal{Float64}(μ=1.2, σ=0.1); lower=0.1)

Now we create another body to represent the planet. We indicate that the planet orbits the star with the about=A argument. Then, the orbit parameters in the @variables block are describe its orbit versus A.

planet_b = Body(
    name="b",
    about=A,
    variables=@variables begin
        mass = 0.0             # [M⊙] fix to zero for this example
        a ~ Uniform(0, 100)    # [AU]
        e ~ Uniform(0.0, 0.5)
        i ~ Sine()             # [rad]
        ω ~ UniformCircular()  # [rad]
        Ω ~ UniformCircular()  # [rad]
        θ ~ UniformCircular()  # [rad] position angle at `epoch`
        epoch = 50420.0        # [MJD] reference epoch for θ. Choose a date near your data.
    end
)

name: Try to give each body a short name consisting only of letters and/or trailing numbers. It is used to name that body's columns in the output chain (b_a, b_e, ...).

about: which body (or barycentre) this one orbits. Exactly one body, normally the host star, must be unplaced (no about argument). about=(A, b) would place a third body about the barycentre of A and b creating a Jacobi chain. This is what you usually want for outer planets. See Jacobi vs. astrocentric in the PlanetOrbits manual for which to pick.

variables: pass a block of variables: priors, derived quantities, and so on. You need to provide the mass, and a sufficient set of orbital parameters. Some models also want flux or flux_<band>.

For orbital elements, you must supply exactly one of these options: | group | alternatives | |–-|–-| | size | a [AU] or P [days] | | shape | (e, ω) or (secosω, sesinω) or (ecosω, esinω) | | phase | tp or M0 + epoch or θ + epoch | | orientation | i, Ω |

Here we used θ (the planet's position angle on the sky at epoch) to fix the phase, which is usually much better constrained by relative data than the epoch of periastron.

Priors can be any continuous univariate distribution from the Distributions.jl package. Many are supported, including Uniform, LogNormal, LogUniform, Sine, and Beta. See the section on Priors for more information. The variables can be specified in any order.

You can also hardcode a particular value for any parameter if you don't want it to vary. Simply replace eg. e ~ Uniform(0, 0.999) with e = 0.1. This = syntax works for arbitrary mathematical expressions and even functions. The = syntax also works to access variables from the system level, e.g. plx = system.plx.

Creating the observations

We will create an observation object to contain our relative astrometry data. We can specify this data in several formats. It can be listed in the code or loaded from a file (eg. a CSV file, FITS table, or SQL database). You can use any Julia table object.

astrom_dat_1 = Table(;
    epoch= [50000,  50120, 50240, 50360,50480, 50600, 50720, 50840,], # MJD (days)
    ra   = [-505.764, -502.57, -498.209, -492.678,-485.977, -478.11, -469.08, -458.896,], # mas
    dec  = [-66.9298, -37.4722, -7.92755, 21.6356, 51.1472,  80.5359,  109.729,  138.651, ], # mas
    # Tip! Type this as \sigma + <TAB key>!
    σ_ra = [10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, ],  # mas
    σ_dec = [10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, ], # mas
    cor =  [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, ]
)
astrom_obs_1 = RelAstromObs(astrom_dat_1; target=planet_b, ref=A, name="relastrom")

Each observation must be given a name, which is used to label it in plots and the chains.

The arguments target=planet_b and ref=A are required. They explain to Octofitter that the relative astrometry positions are measured between planet b and the star A. You could just as easily supply observations measured between one planet and a second planet, or an entirely different star.

In Octofitter, epoch is always the modified Julian date (measured in days). If you're not sure what this is, you can get started by just putting in arbitrary time offsets measured in days.

In this case, we specified ra and dec offsets in milliarcseconds. We could instead specify sep (projected separation) in milliarcseconds and pa in radians. You cannot mix the two formats in a single RelAstromObs but you can create two different observation objects, one for each format, and add them both to your model:

astrom_dat_2 = Table(
    epoch = [42000, ], # MJD
    sep = [505.7637580573554, ], # mas
    pa = [deg2rad(24.1), ], # radians
    # Tip! Type this as \sigma + <TAB key>!
    σ_sep = [70, ],
    σ_pa = [deg2rad(10.2), ],
)
astrom_obs_2 = RelAstromObs(astrom_dat_2; target=planet_b, ref=A, name="relastrom2")

    using CSV
    astrom_dat = CSV.read("mydata.csv", Table)

Every observation says what it observes (target) and what it is measured against (ref). Relative astrometry of the planet with respect to the star is target=planet_b, ref=A:

Advanced Options

You can group your data in different observation objects, each with their own instrument name. Each group can have its own platescale, northangle, and astrometric jitter variables for modelling instrument-specific systematics.

astrom_obs_1 = RelAstromObs(
    astrom_dat_1;
    target = planet_b,
    ref = A,
    name = "GPI astrom",
    variables = @variables begin
        jitter ~ Uniform(0, 10) # mas [optional]
        northangle ~ Normal(0, deg2rad(1)) # radians of offset [optional]
        platescale ~ truncated(Normal(1, 0.01), lower=0) # 1% relative platescale uncertainty
    end
)

astrom_obs_2 = RelAstromObs(
    astrom_dat_2;
    target = planet_b,
    ref = A,
    name = "SPHERE astrom",
    variables = @variables begin
        jitter ~ Uniform(0, 10) # mas [optional]
        northangle ~ Normal(0, deg2rad(1)) # radians of offset [optional]
        platescale ~ truncated(Normal(1, 0.01), lower=0) # 1% relative platescale uncertainty
    end
)

Creating a system

Now we assemble the bodies and observations into a "system". Properties of the whole system or reference frame are specified here, like parallax distance. For multi-planet systems, it makes sense to create shared variables here — for example a single inclination used by two planets.

sys = System(
    name = "Tutoria",
    bodies=[A, planet_b],
    observations=[astrom_obs_1, astrom_obs_2],
    variables=@variables begin
        plx ~ truncated(Normal(50.0, 0.02), lower=0.1)
    end
)

[ Info: [Tutoria] observing_geometry = false (auto): worst accumulated bias 0.0307σ, 3.25× inside the 0.1σ limit — over 300 prior draws (seed 0xc70f177e5000001)
[ Info: [Tutoria] barycentric_lighttime = false (auto): changes no prediction at all — over 300 prior draws (seed 0xc70f177e5000001)

The name of your system will be used for output file names by default. We suggest naming it something like "PDS70-astrom-model".

Prepare model

We now convert our model into efficient, compiled code:

model = Octofitter.LogDensityModel(sys)

LogDensityModel for System Tutoria of dimension 17 and 9 epochs with fields .ℓπcallback and .∇ℓπcallback

This object implements the julia LogDensityProblems.jl interface and can be passed to a wide variety of samplers.

Initialize starting points for chains

Run the initialize! function to find good starting points for the chain. You can provide guesses for parameters if you want to. Body variables are nested under bodies:

init_chain = initialize!(model) # No guesses provided, slower global optimization will be used

init_chain = initialize!(model, (;
    plx = 50,
    bodies = (;
        A = (; mass = 1.21),
        b = (;
            a = 10.0,
            e = 0.01,
        )
    )
))

[ Info: Initializing with 4 fixed parameters
┌ Info: Starting values not provided for all parameters! Guessing starting point using global optimization:
│   num_params = 13
└   num_fixed = 4
┌ Info: Found sample of initial positions
│   logpost_range = (-63.41366816312347, -50.17193171749208)
└   mean_logpost = -54.157002565357324

Visualize the starting points

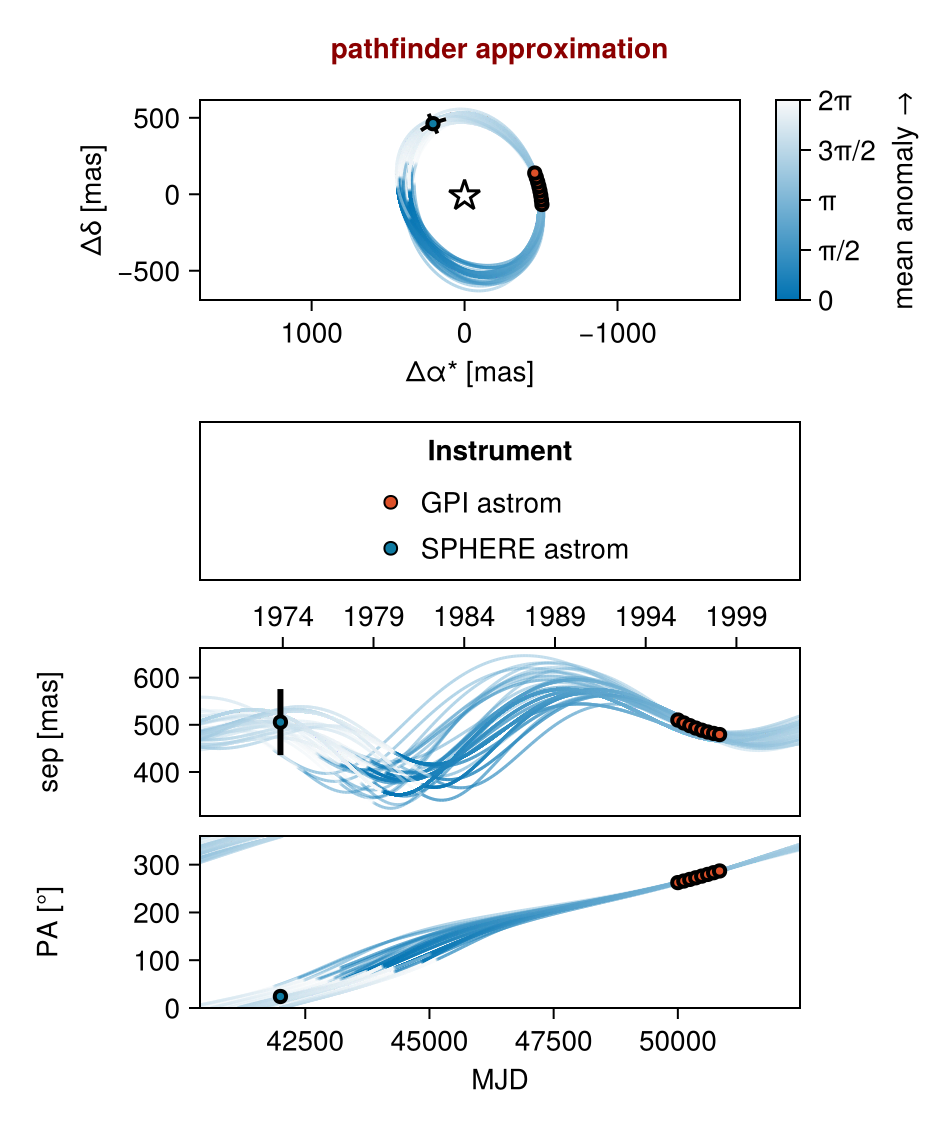

Plot the inital values to make sure that they are reasonable, and match your data. This is a great time to confirm that your data were entered in correctly.

using CairoMakie
octoplot(model, init_chain)

The starting points for sampling look reasonable!

Sampling

Now we are ready to draw samples from the posterior:

chain = octofit(model, iterations=1000)

Chains MCMC chain (1000×36×1 Array{Float64, 3}):

Iterations        = 1:1:1000
Number of chains  = 1
Samples per chain = 1000
Wall duration     = 3.12 seconds
Compute duration  = 3.12 seconds
parameters        = plx, A_mass, b_a, b_e, b_i, b_ωx, b_ωy, b_Ωx, b_Ωy, b_θx, b_θy, b_ω, b_Ω, b_θ, b_mass, b_epoch, GPI_astrom_jitter, GPI_astrom_northangle, GPI_astrom_platescale, SPHERE_astrom_jitter, SPHERE_astrom_northangle, SPHERE_astrom_platescale
internals         = n_steps, is_accept, acceptance_rate, hamiltonian_energy, hamiltonian_energy_error, max_hamiltonian_energy_error, tree_depth, numerical_error, step_size, nom_step_size, is_adapt, loglike, logprior, logpost, tree_depth, numerical_error

Use `describe(chains)` for summary statistics and quantiles.

You will get an output that looks something like this with a progress bar that updates every second or so. You can reduce or completely silence the output by reducing the verbosity value down to 0 from a default of 2 (or get more info with verbosity=4).

Once complete, the chain object will hold the posterior samples. Displaying it prints out a summary table like the one shown above.

For a basic model like this with few epochs and well-specified uncertainties, sampling should take less than a minute on a typical laptop.

Sampling can take much longer when you have measurements with very small uncertainties (e.g. VLTI-GRAVITY).

Diagnostics

The first thing you should do with your results is check a few diagnostics to make sure the sampler converged as intended.

A few things to watch out for: check that you aren't getting many numerical errors (ratio_divergent_transitions). This likely indicates a problem with your model: either invalid values of one or more parameters are encountered (e.g. the prior on semi-major axis includes negative values) or that there is a region of very high curvature that is failing to sample properly. This latter issue can lead to a bias in your results.

One common mistake is to use a distribution like Normal(10,3) for semi-major axis. This left tail of this distribution includes negative values, and our orbit model is not defined for negative semi-major axes. A better choice is a truncated(Normal(10,3), lower=0.1) distribution (not including zero, since a=0 is not defined).

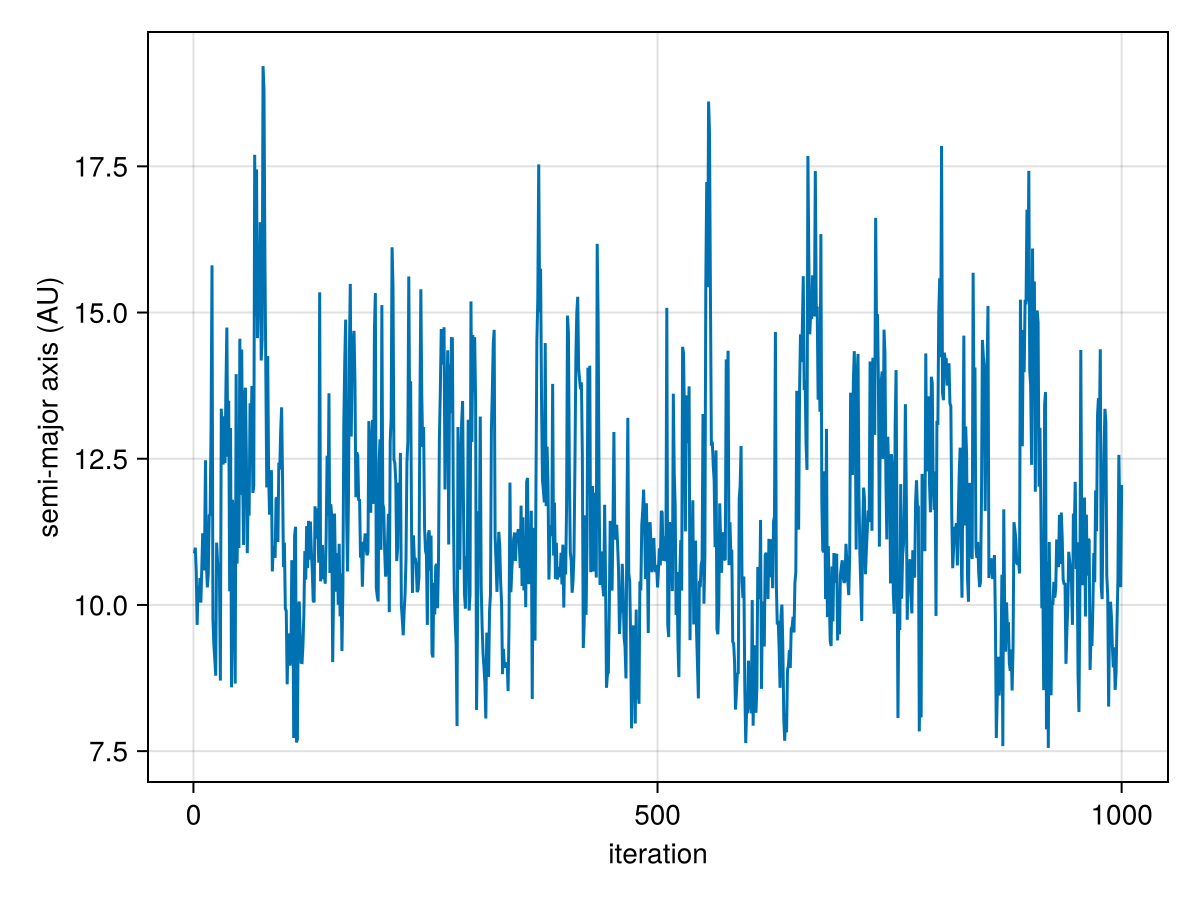

Next, you can make a trace plot of different variabes to visually inspect the chain:

using CairoMakie
lines(
    chain["b_a"][:],
    axis=(;
        xlabel="iteration",
        ylabel="semi-major axis (AU)"
    )
)

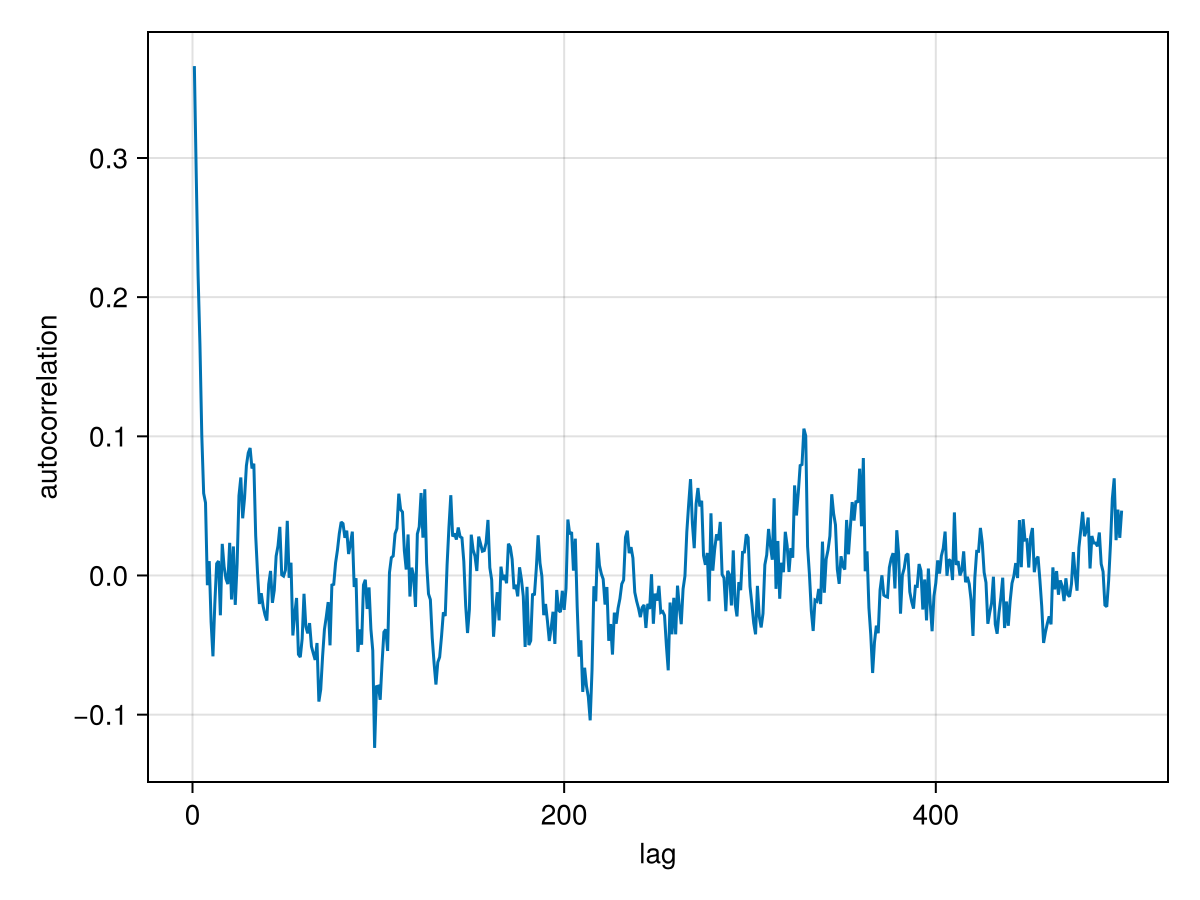

And an auto-correlation plot:

using StatsBase
using CairoMakie
lines(
    autocor(chain["b_e"][:], 1:500),
    axis=(;
        xlabel="lag",
        ylabel="autocorrelation",
    )
)

This plot shows that these samples are not correlated after only about 5 iterations. No thinning is necessary.

To confirm convergence, you may also examine the rhat column from chains. This diagnostic approaches 1 as the chains converge and should at the very least equal 1.0 to one significant digit (3 recommended).

Finaly, you might consider running multiple chains. Simply run octofit multiple times, and store the result in different variables. Then you can combine the chains using chainscat and run additional inter-chain convergence diagnostics:

using MCMCChains
chain1 = octofit(model)
chain2 = octofit(model)
chain3 = octofit(model)
merged_chains = chainscat(chain1, chain2, chain3)
gelmandiag(merged_chains)

Gelman, Rubin, and Brooks diagnostic

                parameters      psrf    psrfci
                    Symbol   Float64   Float64

                       plx    1.0017    1.0029
                    A_mass    1.0014    1.0027
                       b_a    1.0035    1.0102
                       b_e    1.0059    1.0190
                       b_i    1.0031    1.0106
                      b_ωx    1.0096    1.0356
                      b_ωy    1.0255    1.0897
                      b_Ωx    1.3601    2.0399
                      b_Ωy    1.2378    1.7239
                      b_θx    1.0003    1.0022
                      b_θy    1.0009    1.0030
                       b_ω    1.0139    1.0484
                       b_Ω    1.3033    1.8547
                       b_θ    1.0002    1.0012
                    b_mass       NaN       NaN
                   b_epoch       NaN       NaN
         GPI_astrom_jitter    1.0009    1.0032
     GPI_astrom_northangle    1.0000    1.0007
     GPI_astrom_platescale    1.0009    1.0019
      SPHERE_astrom_jitter    1.0001    1.0016
  SPHERE_astrom_northangle    1.0002    1.0019
  SPHERE_astrom_platescale    1.0030    1.0055

This will check that the means and variances are similar between chains that were initialized at different starting points.

Analysis

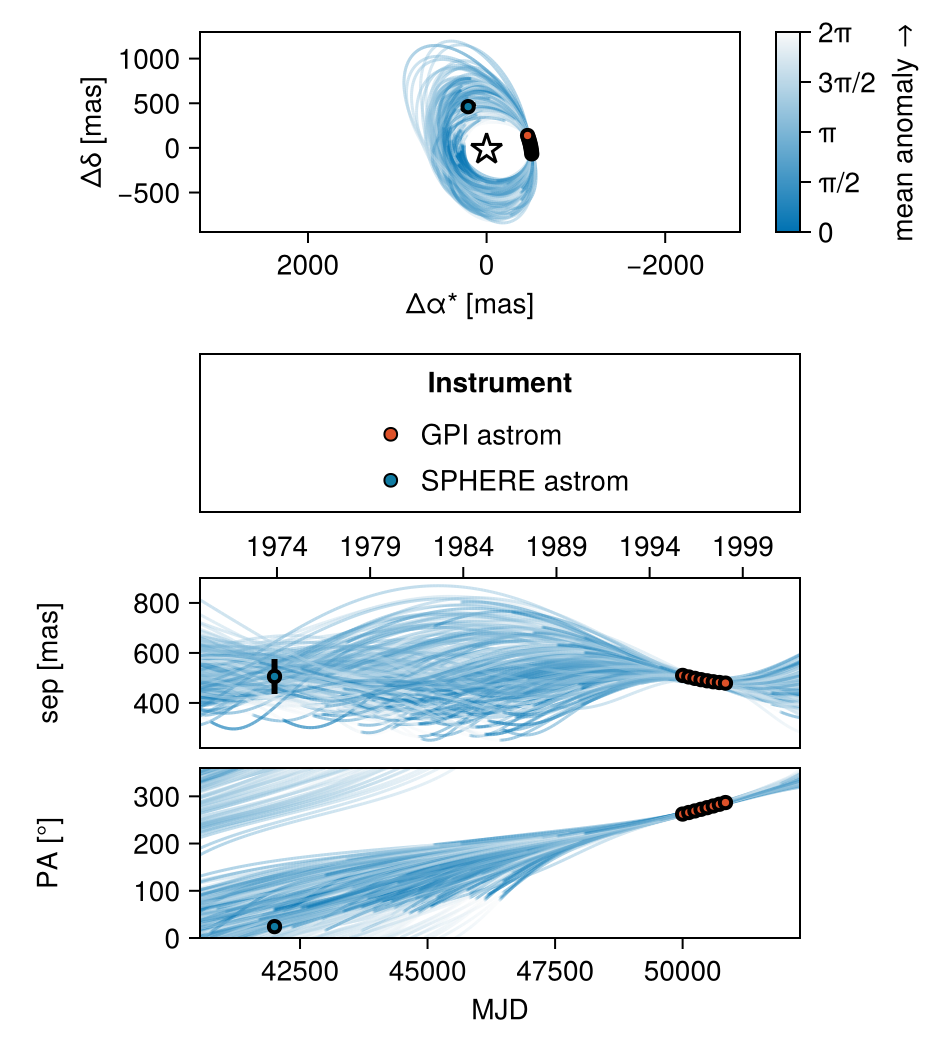

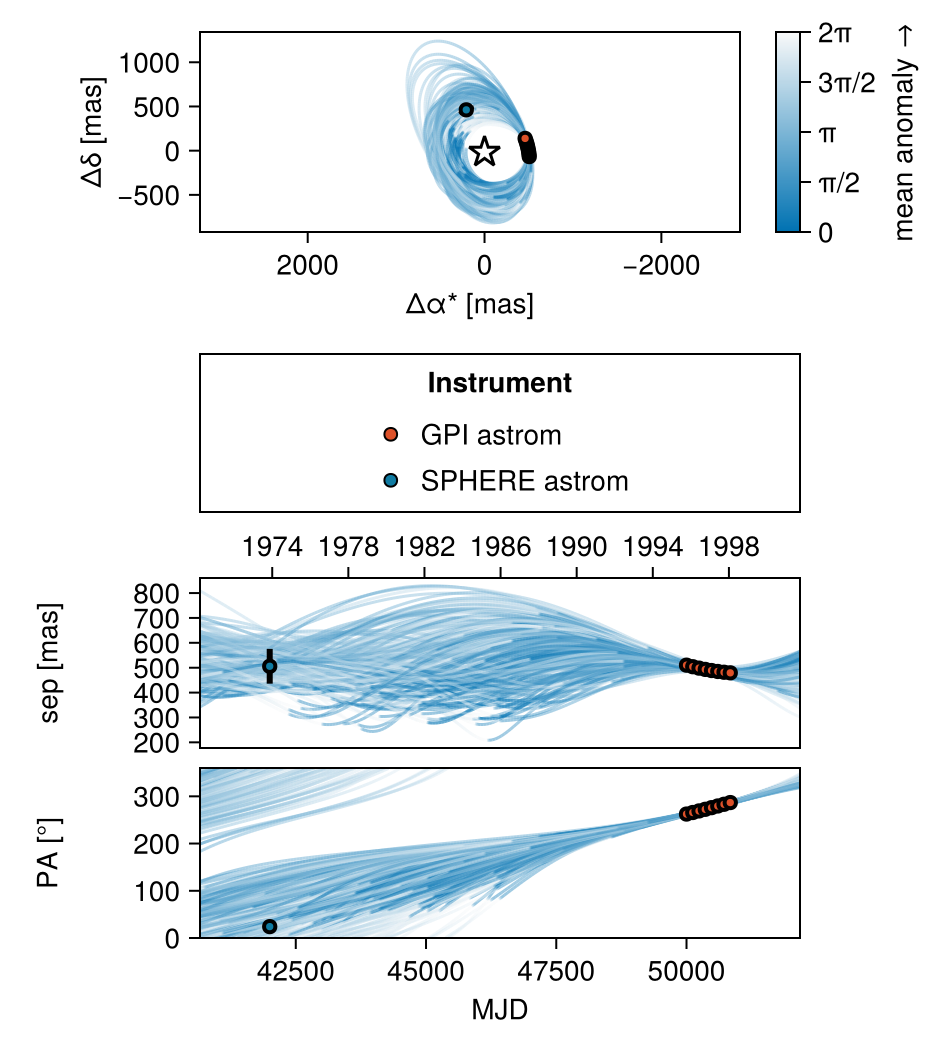

As a first pass, let's plot a sample of orbits drawn from the posterior. The function octoplot is a conveninient way to generate a multi-panel plot of the orbits and every data channel in the model:

using CairoMakie
octoplot(model,merged_chains)

This function draws orbits from the posterior and displays them in a plot. Any astrometry points are overplotted.

You can control how many orbits are drawn, the figure scale, and which panels appear. See octoplot for more details.

Predicting quantities you did not observe

octoplot is not restricted to the data in the model. Ask channels= for an observable the fit has no data for at all, and it draws the posterior's prediction for that quantity instead — the curves alone, with nothing to overlay:

# What radial velocity would a spectrograph see, given this astrometry?
octoplot(model, merged_chains; channels=radvel, show_sky=false)

# The star's reflex proper motion, likewise.
octoplot(model, merged_chains; channels=pmra, show_sky=false)

This is the figure to make when deciding whether a target is worth spectroscopic or absolute-astrometry time. Note that it needs the companion to have mass: with mass = 0.0, as in the model above, the host's reflex signal is identically zero. Give planet_b a mass prior first.

The natural follow-up is to take the observation, keep it out of the fit, and check the prediction against it — see Predicting data the model never saw, which also shows how to score the result numerically.

Pair Plot

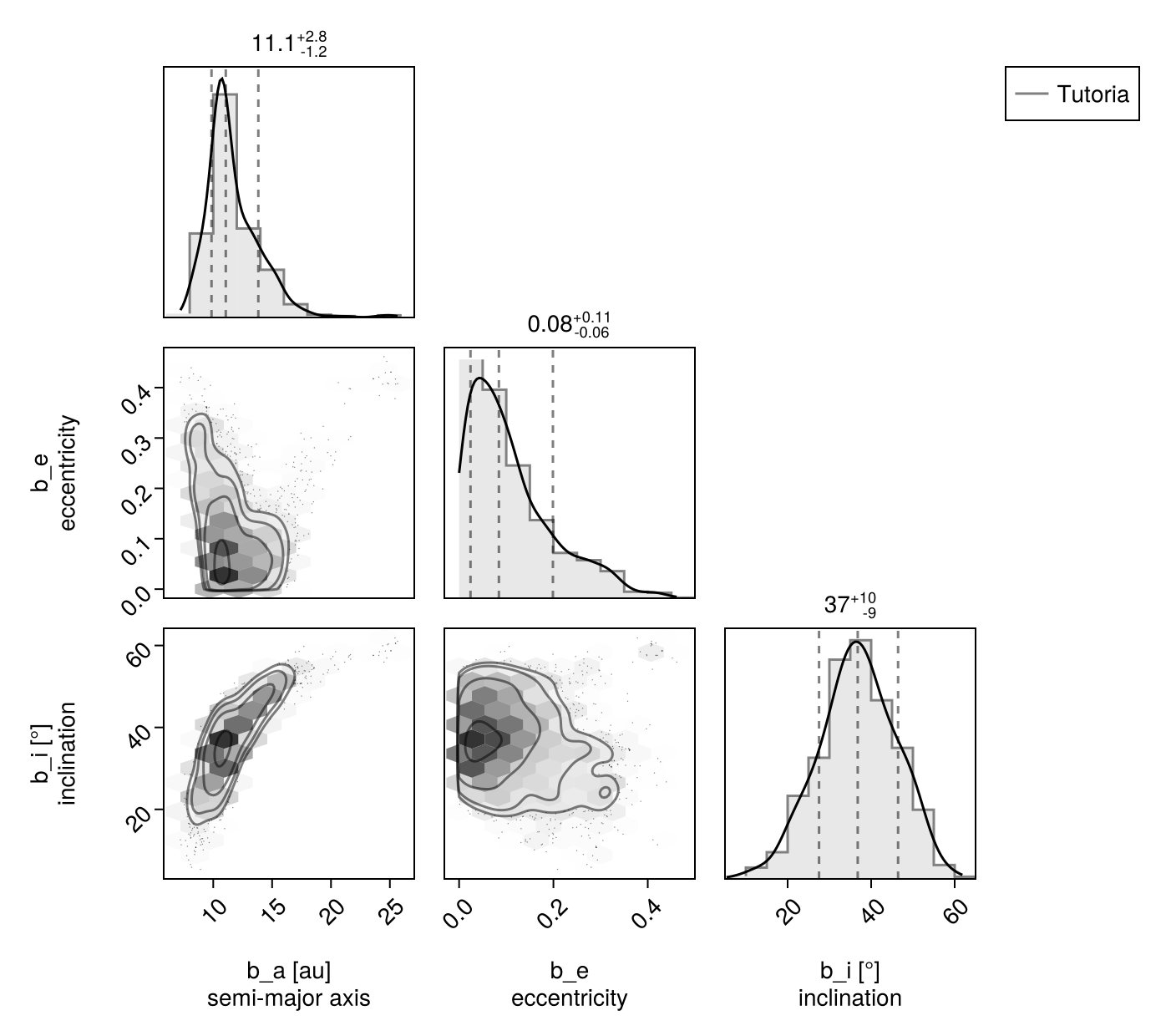

A very useful visualization of our results is a pair-plot, or corner plot. We can use the octocorner function and our PairPlots.jl package for this purpose:

using CairoMakie
using PairPlots
octocorner(model, merged_chains, small=true)

Remove small=true to display all variables.

In this case, the sampler was able to resolve the complicated degeneracies between eccentricity, the longitude of the ascending node, and argument of periapsis.

Working with the fitted orbits

Chain columns are named <body>_<variable> for body variables, <observation>_<variable> for observation variables, and are unprefixed for system variables:

sma_planet_b = chain["b_a"]      # a (samples × chains) matrix

To evaluate the orbits themselves, rebuild the whole PlanetOrbits.System for a draw and query it. Every observable takes (solution, target, reference):

posys = construct_system(model, chain, 1)        # draw #1
traj = orbitsolve(posys, [mjd("2025-01-01"), mjd("2030-01-01")])
raoff(traj[1], :b, :A), decoff(traj[1], :b, :A)   # [mas]

(-29.573434580504916, 302.8765065583068)

Saving your chain

You can save your chain in FITS table format by running:

Octofitter.savechain("mychain.fits", chain)

You can load it back via:

chain = Octofitter.loadchain("mychain.fits"; model)

Passing model is recommended: loadchain then checks the chain's column names against the model, and errors with a rename hint instead of silently giving you missing values.

Saving your model

You may choose to save your model so that you can reload it later to make plots, etc:

using Serialization
serialize("model1.jls", model)

Which can then be loaded at a later time using:

using Serialization
using Octofitter # must include all the same imports as your original script
model = deserialize("model1.jls")

Comparing chains

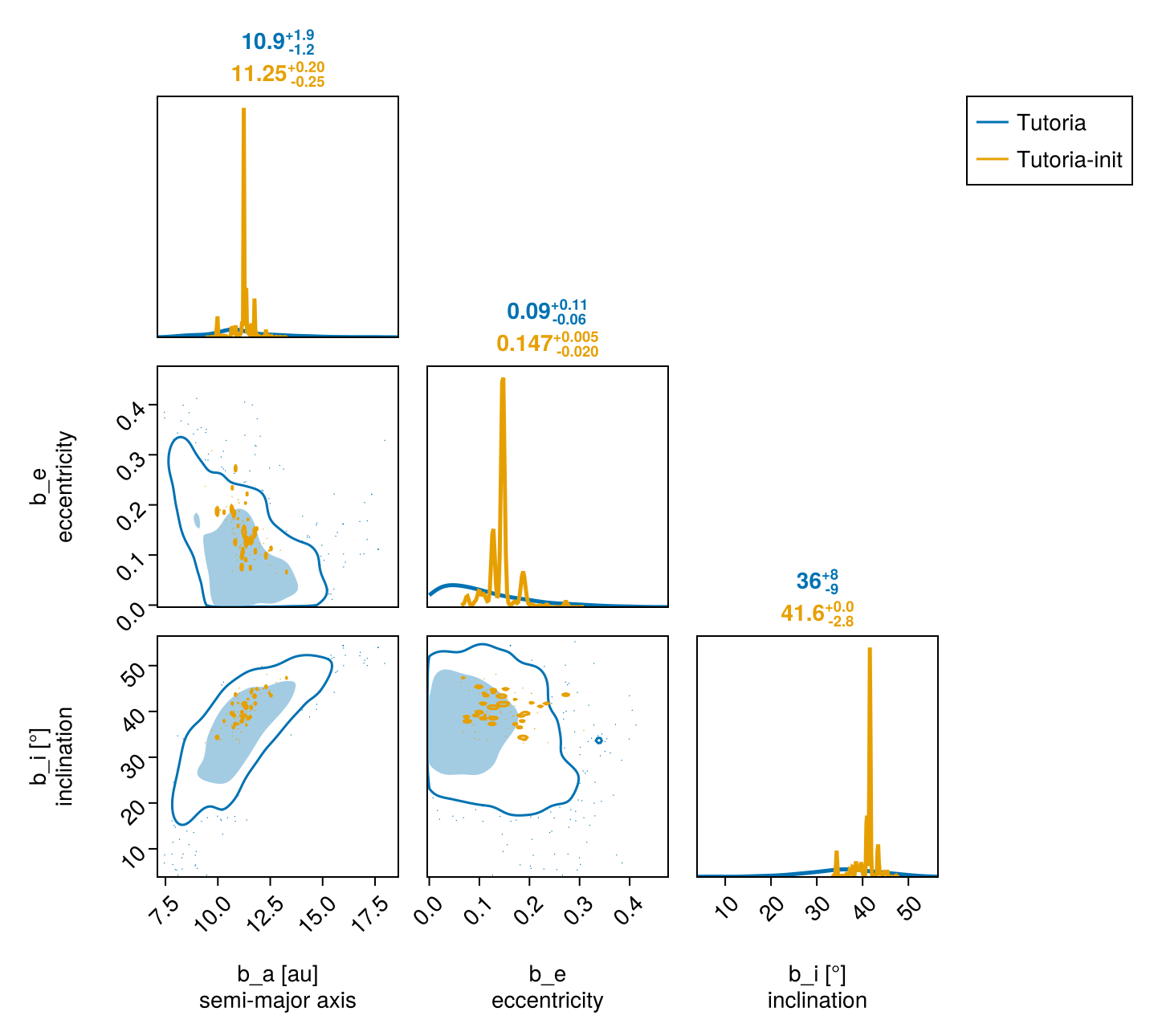

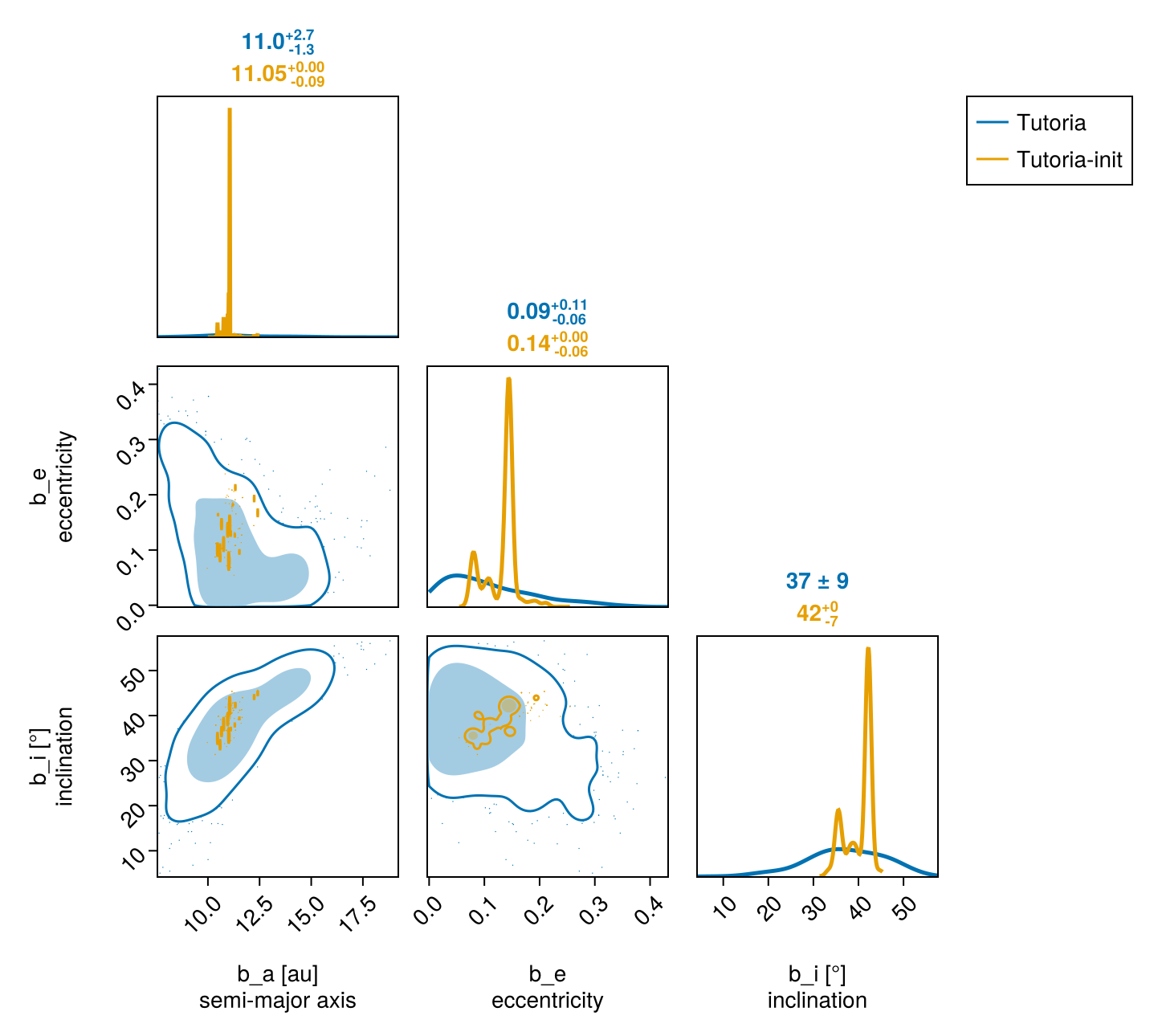

We can compare two different chains by passing them both to octocorner. Let's compare the init_chain with the full results from octofit:

octocorner(model, chain, init_chain, small=true)
