Hipparcos IAD

This tutorial explains how to model Hipparcos intermediate astrometric data (IAD) with HipparcosIADObs. The first example reproduces the catalog values of position, parallax, and proper motion. The second uses Hipparcos to constrain the mass of a directly imaged planet.

You can also model Hipparcos IAD jointly with Gaia and HGCA proper motion anomaly with G23HObs.

The frame offset block

Hipparcos IAD fits allow you to specify variables for the 5 parameter solutions. This lets you marginalize over Hipparcos IAD reference frame systematics if you're combining this data with other absolute astrometry. If you only have Hipparcos IAD absolute astrometry, you can just set these to zero or forward the system reference frame ones (like plx):

Reproduce Catalog Values

This is the so-called "Nielsen" test from Nielsen et al (2020) and shown in the Orbitize! docs. It re-fits the IAD to get back the original Hipparcos 5-parameter solution as a test.

We start with a model that contains only the star itself — a single body and no orbits. A lone body simply is the system barycentre, so the only thing the model can do is fit the star's parallax and proper motion (the "straight-line", five-parameter sky path).

using Octofitter
using Distributions
using CairoMakie
using Pigeons

A = Body(
    name="A",
    variables=@variables begin
        mass = 1.0   # host mass is not important for this example
    end
)


hip_obs = Octofitter.HipparcosIADObs(
    hip_id=21547,
    target=A,
    blends=(),
    ref=Barycentre,
    renormalize=true, # default: true
)

sys = System(
    name="c_Eri_straight_line",
    bodies=[A,],
    observations=[hip_obs],
    variables=@variables begin
        plx ~ Uniform(10, 100)
    end
)

model = Octofitter.LogDensityModel(sys)

LogDensityModel for System c_Eri_straight_line of dimension 6 and 104 epochs with fields .ℓπcallback and .∇ℓπcallback

We can now sample from the model using parallel tempering. This should only take about 15 seconds.

init_chain = initialize!(model)
chain, pt = octofit_pigeons(model, n_rounds=7)
chain

Chains MCMC chain (128×14×1 Array{Float64, 3}):

Iterations        = 1:1:128
Number of chains  = 1
Samples per chain = 128
Wall duration     = 9.65 seconds
Compute duration  = 9.65 seconds
parameters        = plx, A_mass, Hipparcos_IAD_hip_iad_jitter, Hipparcos_IAD_iad_Δra, Hipparcos_IAD_iad_Δdec, Hipparcos_IAD_iad_Δpmra, Hipparcos_IAD_iad_Δpmdec, Hipparcos_IAD_iad_Δplx, Hipparcos_IAD_iad_pmra, Hipparcos_IAD_iad_pmdec
internals         = loglike, logpost, logprior, pigeons_logpotential

Use `describe(chains)` for summary statistics and quantiles.

Plot the a sample from the posterior:

Octofitter.hipparcosplot(model, chain)

We now visualize the model fit compared to the Hipparcos catalog values. The parallax is compared directly; the position and proper motion are compared through the frame offsets, which should recover zero offset and the catalog proper motion respectively:

using LinearAlgebra, StatsBase

# The catalog five-parameter solution this fit should reproduce.
hip_sol = hip_obs.hip_sol

comparisons = (
    (; prop=:plx,                      μ=hip_sol.plx,    σ=hip_sol.e_plx,  label="plx [mas]"),
    (; prop=:Hipparcos_IAD_iad_Δra,    μ=0.0,            σ=hip_sol.e_ra,   label="Δα⋆ [mas]"),
    (; prop=:Hipparcos_IAD_iad_Δdec,   μ=0.0,            σ=hip_sol.e_de,   label="Δδ [mas]"),
    (; prop=:Hipparcos_IAD_iad_pmra,   μ=hip_sol.pm_ra,  σ=hip_sol.e_pmra, label="μα⋆ [mas/yr]"),
    (; prop=:Hipparcos_IAD_iad_pmdec,  μ=hip_sol.pm_de,  σ=hip_sol.e_pmde, label="μδ [mas/yr]"),
)

fig = Figure(size=(1080, 720))
ax = nothing
j = i = 1
for prop in comparisons
    global i, j, ax, chain
    ax = Axis(fig[j, i], xlabel=prop.label)
    i += 1
    if i > 3
        j += 1
        i = 1
    end
    n = Normal(prop.μ, prop.σ)
    n0, n1 = quantile.(n, (1e-4, 1 - 1e-4))
    nxs = range(n0, n1, length=200)
    h = fit(Histogram, chain[prop.prop][:], nbins=55)
    h = normalize(h, mode=:pdf)
    barplot!(ax, (h.edges[1][1:end-1] .+ h.edges[1][2:end]) ./ 2, h.weights,
             gap=0, color=:red, label="posterior")
    lines!(ax, nxs, pdf.(n, nxs), label="Hipparcos Catalog", color=:black, linewidth=2)
end
Legend(fig[i-1, j+1], ax, tellwidth=false)
fig

Every panel should sit on top of the catalog curve. A 500-sample run of this model recovers HIP 21547's published five-parameter solution to well within 1σ on all five:

Constrain Planet Mass

We now allow the planet to have a non-zero mass and a free orbit. We start by specifying relative astrometry data on the planet, collated by Jason Wang and co. on whereistheplanet.com.

astrom_dat = Table(;
    epoch = [57009.1, 57052.1, 57053.1, 57054.3, 57266.4, 57332.2, 57374.2, 57376.2, 57415.0, 57649.4, 57652.4, 57739.1, 58068.3, 58442.2],
    sep   = [454.24, 451.81, 456.8, 461.5, 455.1, 452.88, 455.91, 455.01, 454.46, 454.81, 451.43, 449.39, 447.54, 434.22],
    σ_sep = [1.88, 2.06, 2.57, 23.9, 2.23, 5.41, 6.23, 3.03, 6.03, 2.02, 2.67, 2.15, 3.02, 2.01],
    pa    = [2.98835, 2.96723, 2.97038, 2.97404, 2.91994, 2.89934, 2.89131, 2.89184, 2.8962, 2.82394, 2.82272, 2.79357, 2.70927, 2.61171],
    σ_pa  = [0.00401426, 0.00453786, 0.00523599, 0.0523599, 0.00453786, 0.00994838, 0.00994838, 0.00750492, 0.00890118, 0.00453786, 0.00541052, 0.00471239, 0.00680678, 0.00401426]
)

astrom_obs = RelAstromObs(
    astrom_dat,
    target = :b,      # the body the measurement is *of*
    ref    = :A,      # …and the body it is measured *against*
    name = "VLT/SPHERE",
    variables = @variables begin
        # Fixed values for this example - could be free variables:
        jitter = 0        # mas [could use: jitter ~ Uniform(0, 10)]
        northangle = 0    # radians [could use: northangle ~ Normal(0, deg2rad(1))]
        platescale = 1    # relative [could use: platescale ~ truncated(Normal(1, 0.01), lower=0)]
    end
)

We specify our full model.

A_mass = Body(
    name="A",
    variables=@variables begin
        mass ~ truncated(Normal(1.75, 0.05), lower=0.03)   # Msol
    end
)

planet_b_mass = Body(
    name="b",
    about=A_mass,
    variables=@variables begin
        mass ~ LogUniform(0.1mjup, 100mjup)  # Msol (mjup is a constant, not a unit system)
        a ~ truncated(Normal(10, 1), lower=0.1)
        e ~ Uniform(0, 0.99)
        ω ~ Uniform(0, 2pi)
        i ~ Sine()
        Ω ~ Uniform(0, 2pi)
        θ ~ Uniform(0, 2pi)
        epoch = 58442.2
    end
)

hip_obs_mass = Octofitter.HipparcosIADObs(
    hip_id=21547,
    target=A_mass,
    blends=(planet_b_mass,),
    ref=Barycentre,
)

sys_mass = System(
    name="cEri",
    bodies=[A_mass, planet_b_mass],
    observations=[hip_obs_mass, astrom_obs],
    variables=@variables begin
        plx ~ Uniform(20, 40)
    end
)

model = Octofitter.LogDensityModel(sys_mass)

LogDensityModel for System cEri of dimension 14 and 118 epochs with fields .ℓπcallback and .∇ℓπcallback

Initialize the starting points, and confirm the data are entered correctly:

init_chain = initialize!(model, (;
    plx = 34.0,
    observations = (;
        Hipparcos_IAD = (;
            iad_Δra = 0.0,
            iad_Δdec = 0.0,
            iad_Δpmra = 0.0,
            iad_Δpmdec = 0.0,
        ),
    ),
))

Chains MCMC chain (1000×22×1 Array{Float64, 3}):

Iterations        = 1:1:1000
Number of chains  = 1
Samples per chain = 1000
Wall duration     = 6.81 seconds
Compute duration  = 6.81 seconds
parameters        = plx, A_mass, b_mass, b_a, b_e, b_ω, b_i, b_Ω, b_θ, b_epoch, Hipparcos_IAD_hip_iad_jitter, Hipparcos_IAD_iad_Δra, Hipparcos_IAD_iad_Δdec, Hipparcos_IAD_iad_Δpmra, Hipparcos_IAD_iad_Δpmdec, Hipparcos_IAD_iad_Δplx, Hipparcos_IAD_iad_pmra, Hipparcos_IAD_iad_pmdec, VLT_SPHERE_jitter, VLT_SPHERE_northangle, VLT_SPHERE_platescale
internals         = logpost

Use `describe(chains)` for summary statistics and quantiles.

Now we sample:

chain, pt = octofit_pigeons(model, n_rounds=8, explorer=SliceSampler())
chain

Chains MCMC chain (256×25×1 Array{Float64, 3}):

Iterations        = 1:1:256
Number of chains  = 1
Samples per chain = 256
Wall duration     = 40.14 seconds
Compute duration  = 40.14 seconds
parameters        = plx, A_mass, b_mass, b_a, b_e, b_ω, b_i, b_Ω, b_θ, b_epoch, Hipparcos_IAD_hip_iad_jitter, Hipparcos_IAD_iad_Δra, Hipparcos_IAD_iad_Δdec, Hipparcos_IAD_iad_Δpmra, Hipparcos_IAD_iad_Δpmdec, Hipparcos_IAD_iad_Δplx, Hipparcos_IAD_iad_pmra, Hipparcos_IAD_iad_pmdec, VLT_SPHERE_jitter, VLT_SPHERE_northangle, VLT_SPHERE_platescale
internals         = loglike, logpost, logprior, pigeons_logpotential

Use `describe(chains)` for summary statistics and quantiles.

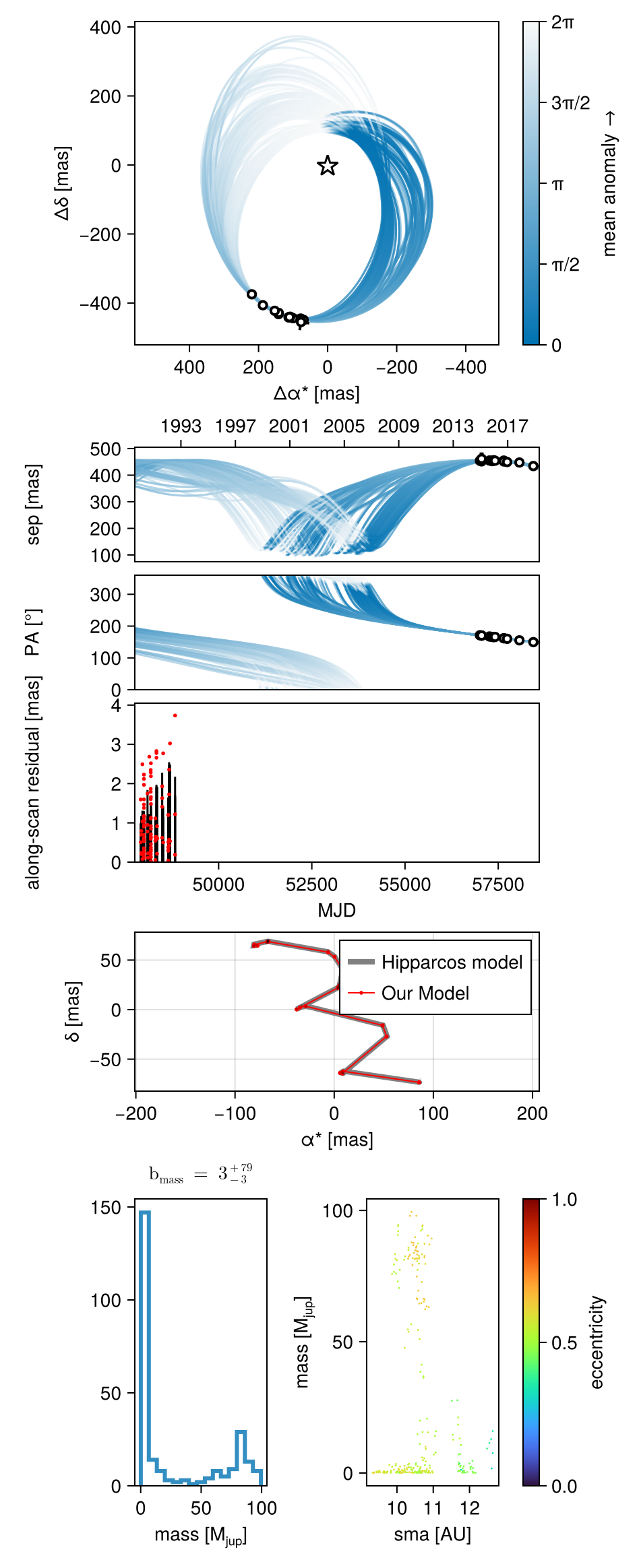

octoplot(model, chain)

We see that we constrained both the orbit and the parallax. The mass is not strongly constrained by Hipparcos alone; chain["b_mass"] is in solar masses, so divide by mjup to read it in Jupiter masses:

using StatsBase
mass_mjup = chain["b_mass"][:] ./ mjup
println("b mass [Mjup]: ", round.(quantile(mass_mjup, (0.16, 0.5, 0.84)), digits=2))

b mass [Mjup]: (0.35, 3.38, 34.89)

See Also

• Joint Gaia-Hipparcos (G23H) — the same abscissae as one channel of a joint Gaia + Hipparcos fit.
• Proper Motion Anomaly — HGCA-style proper motion anomaly.
