Fit with a Thiele-Innes Basis

This example shows how to fit relative astrometry using a Thiele-Innes orbital basis instead of the traditional Campbell basis used in other tutorials. The Thiele-Innes basis is more suitable then Campbell for fitting low-eccentricity orbits, because it does not have the issues where ω, Ω, and tp become degenerate as eccentricity and/or inclination fall to zero.

At the end, we will convert our results back into the Campbell basis to compare.

using Octofitter
using CairoMakie
using PairPlots
using Distributions

astrom_dat = Table(;
    epoch = [50000, 50120, 50240, 50360, 50480, 50600, 50720, 50840],
    ra    = [-505.7637580573554, -502.570356287689, -498.2089148883798, -492.67768482682357, -485.9770335870402, -478.1095526888573, -469.0801731788123, -458.89628893460525],
    dec   = [-66.92982418533026, -37.47217527025044, -7.927548139010479, 21.63557115669823, 51.147204404903704, 80.53589069730698, 109.72870493064629, 138.65128697876773],
    σ_ra  = [10, 10, 10, 10, 10, 10, 10, 10],
    σ_dec = [10, 10, 10, 10, 10, 10, 10, 10],
    cor   = [0, 0, 0, 0, 0, 0, 0, 0]
)

astrom_like = PlanetRelAstromLikelihood(
    astrom_dat,
    name = "GPI",
    variables = @variables begin
        # Fixed values for this example - could be free variables:
        jitter = 0        # mas [could use: jitter ~ Uniform(0, 10)]
        northangle = 0    # radians [could use: northangle ~ Normal(0, deg2rad(1))]
        platescale = 1    # relative [could use: platescale ~ truncated(Normal(1, 0.01), lower=0)]
    end
)

planet_b = Planet(
    name="b",
    basis=ThieleInnesOrbit,
    likelihoods=[astrom_like],
    variables=@variables begin
        e ~ Uniform(0.0, 0.5)
        A ~ Normal(0, 1000) # milliarcseconds
        B ~ Normal(0, 1000) # milliarcseconds
        F ~ Normal(0, 1000) # milliarcseconds
        G ~ Normal(0, 1000) # milliarcseconds

        M = system.M
        θ ~ UniformCircular()
        tp = θ_at_epoch_to_tperi(θ, 50000.0; system.plx, M, e, A, B, F, G)  # reference epoch for θ. Choose an MJD date near your data.
    end
)

sys = System(
    name="TutoriaPrime",
    companions=[planet_b],
    likelihoods=[],
    variables=@variables begin
        M ~ truncated(Normal(1.2, 0.1), lower=0.1)
        plx ~ truncated(Normal(50.0, 0.02), lower=0.1)
    end
)

model = Octofitter.LogDensityModel(sys)
LogDensityModel for System TutoriaPrime of dimension 9 and 9 epochs with fields .ℓπcallback and .∇ℓπcallback

Initialize the starting points, and confirm the data are entered correcly:

init_chain = initialize!(model)

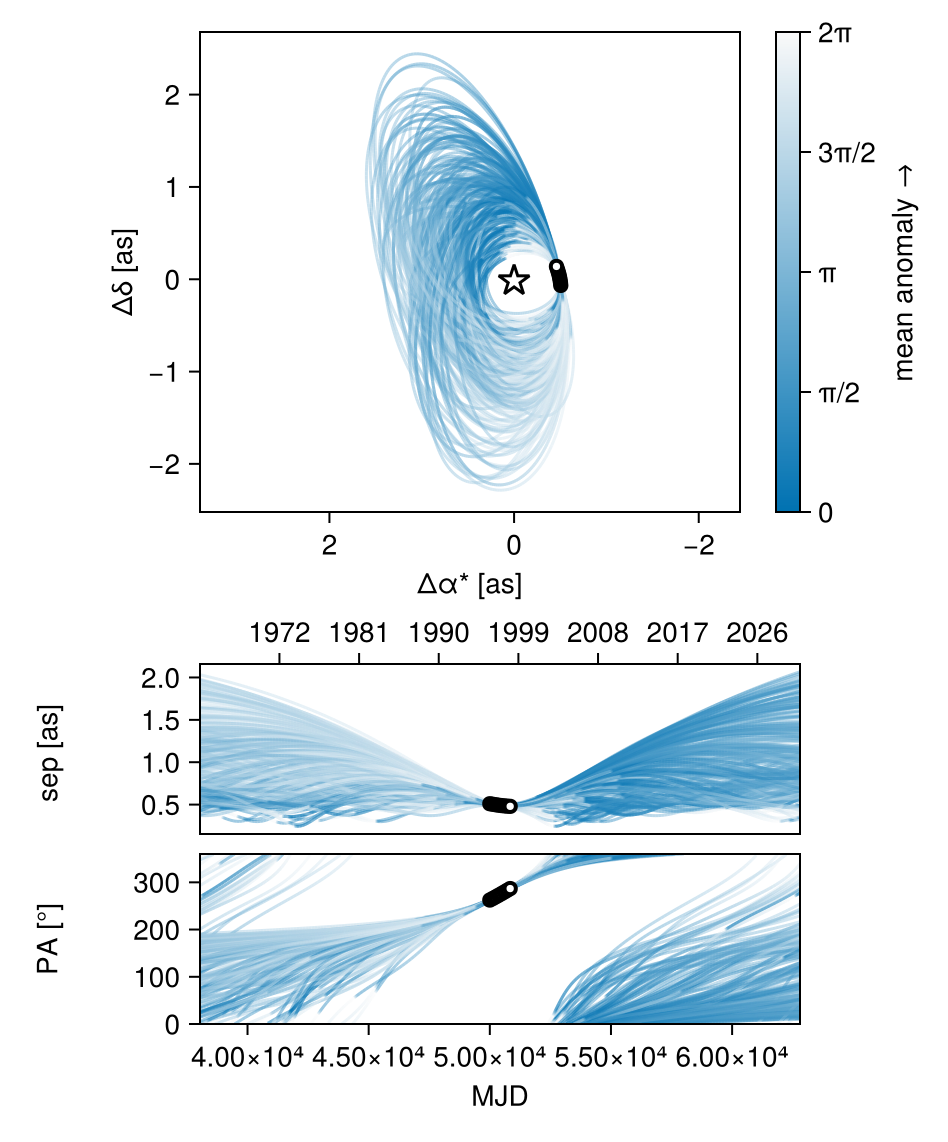

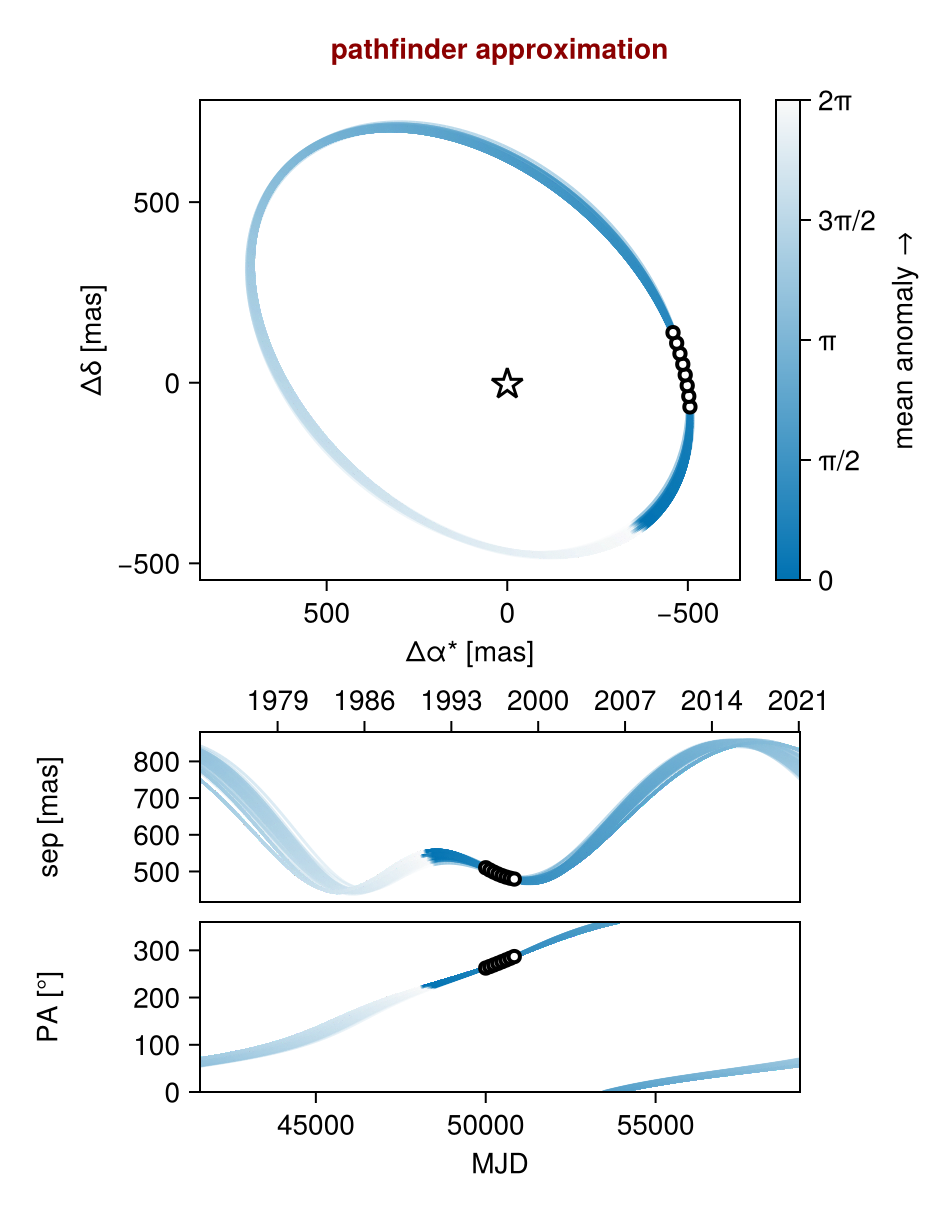

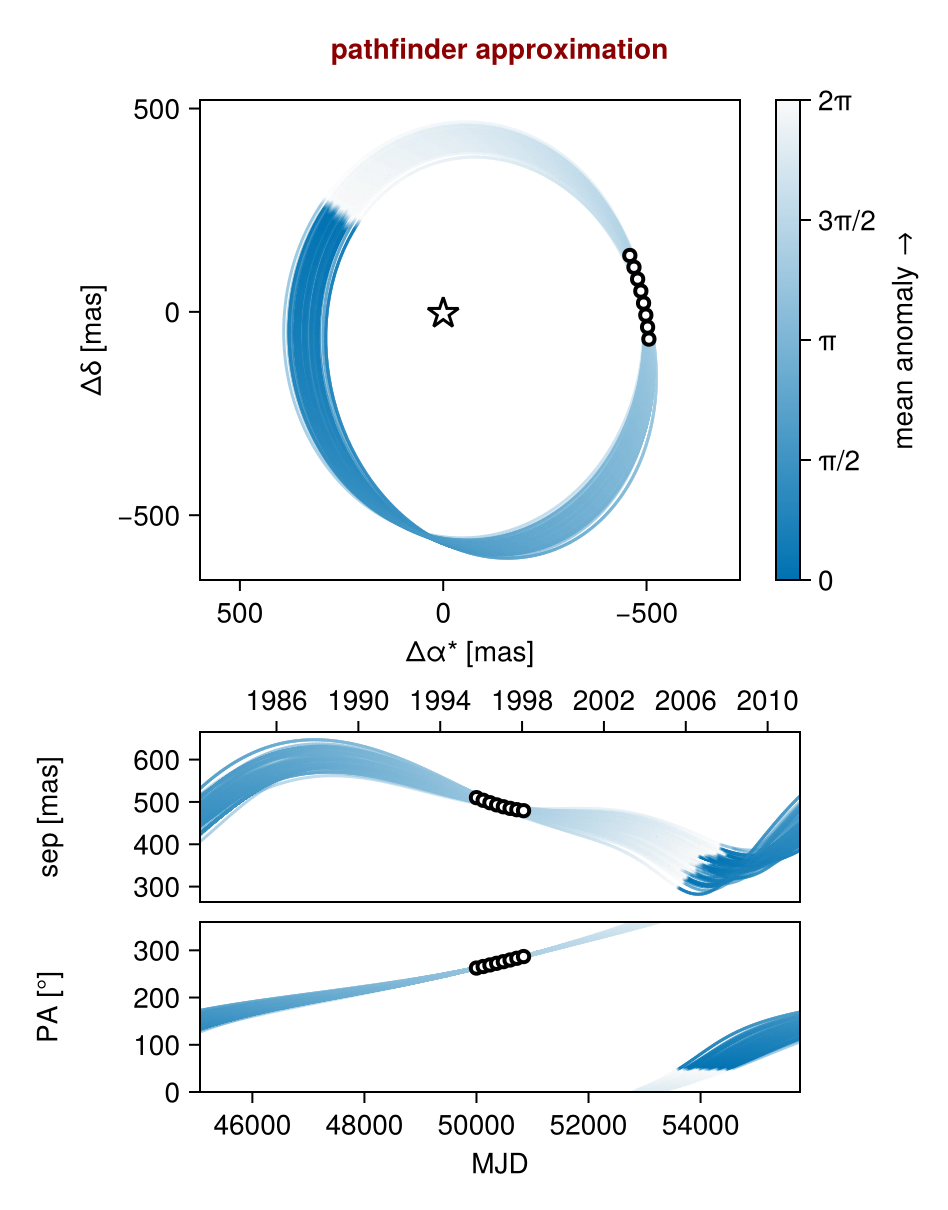

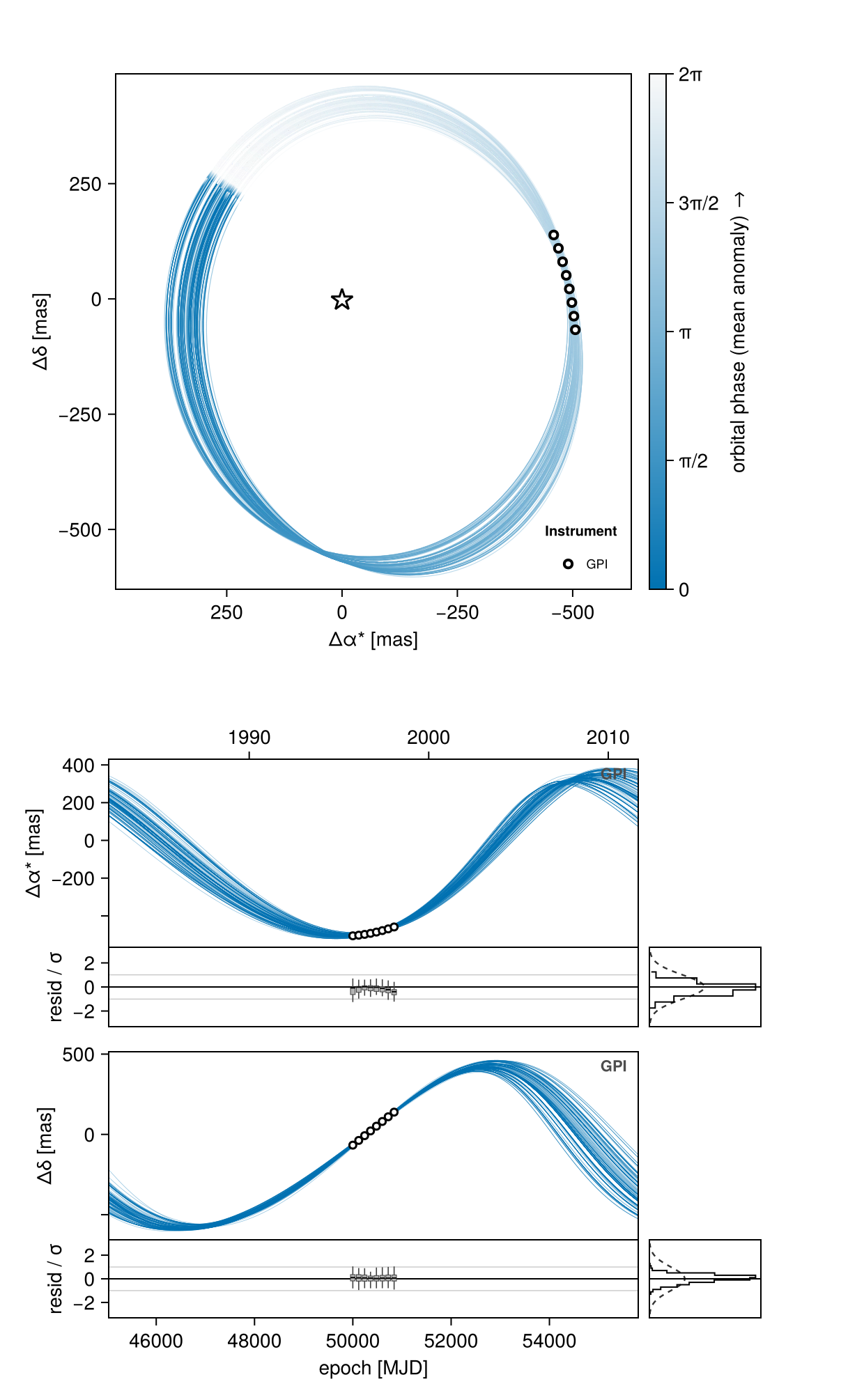

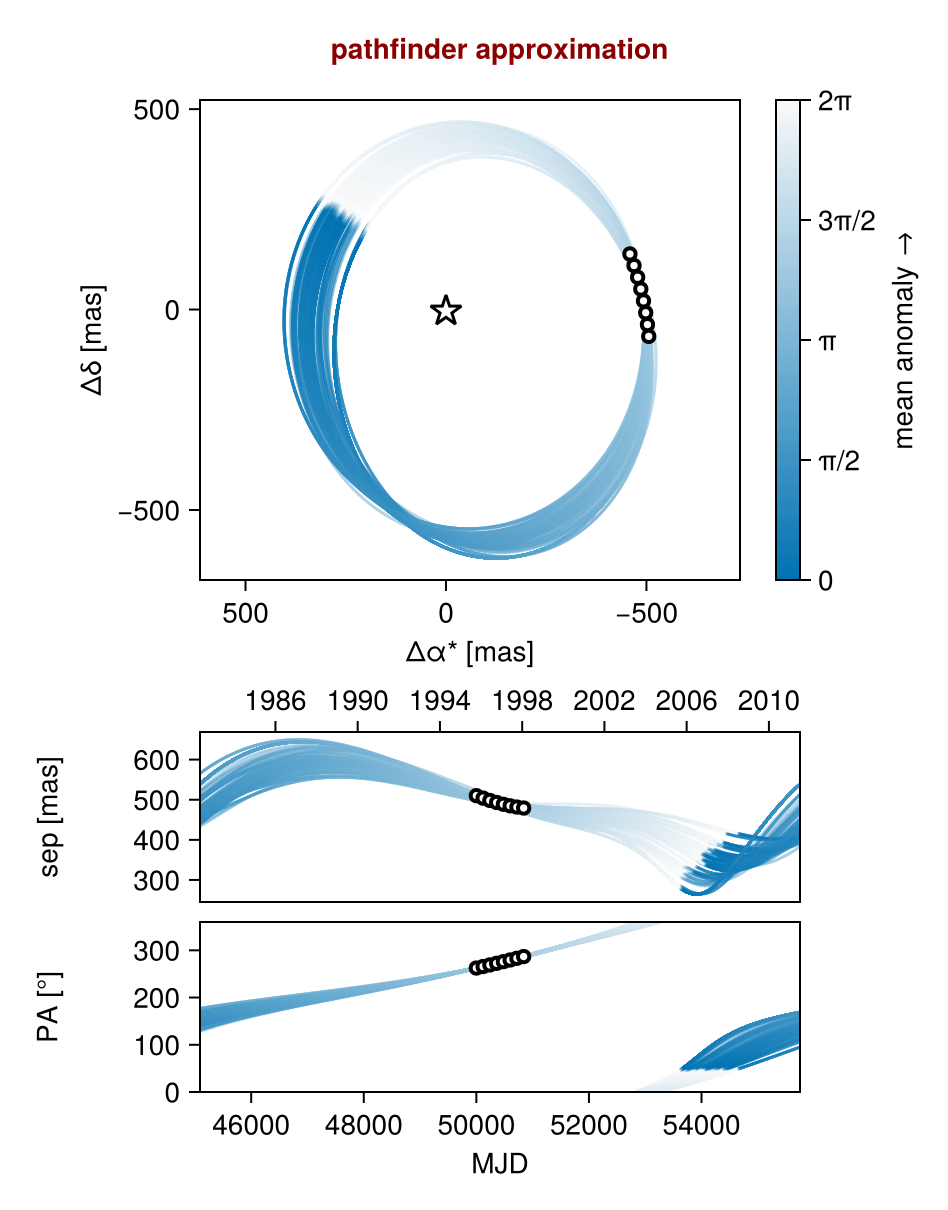

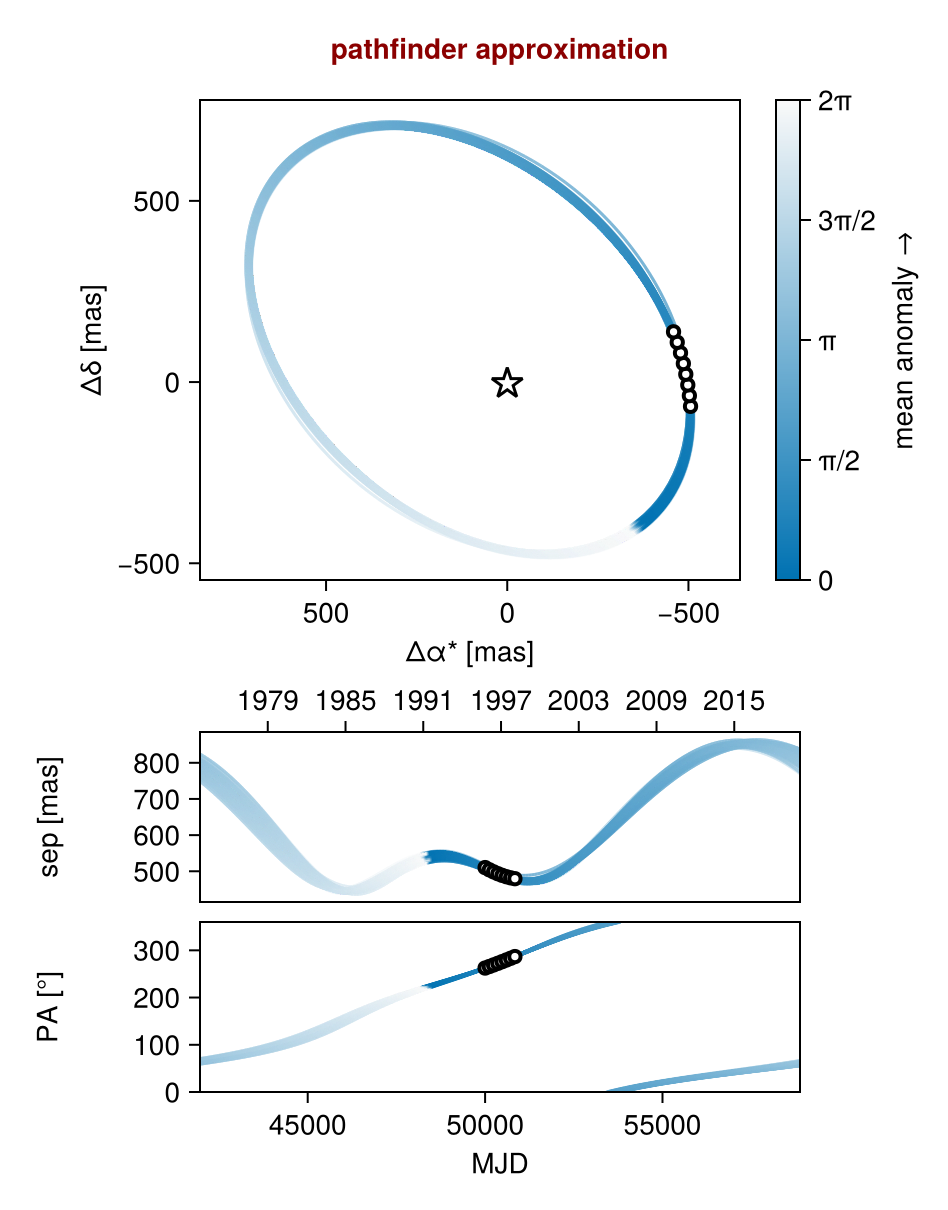

octoplot(model, init_chain)
Example block output

We now sample from the model as usual:

results = octofit(model)
Chains MCMC chain (1000×28×1 Array{Float64, 3}):

Iterations        = 1:1:1000
Number of chains  = 1
Samples per chain = 1000
Wall duration     = 4.83 seconds
Compute duration  = 4.83 seconds
parameters        = M, plx, b_e, b_A, b_B, b_F, b_G, b_θx, b_θy, b_θ, b_M, b_tp, b_GPI_jitter, b_GPI_northangle, b_GPI_platescale
internals         = n_steps, is_accept, acceptance_rate, hamiltonian_energy, hamiltonian_energy_error, max_hamiltonian_energy_error, tree_depth, numerical_error, step_size, nom_step_size, is_adapt, loglike, logpost, tree_depth, numerical_error

Summary Statistics
        parameters         mean          std        mcse    ess_bulk   ess_tai ⋯
            Symbol      Float64      Float64     Float64     Float64    Float6 ⋯

                 M       1.2123       0.1060      0.0047    534.8304   285.444 ⋯
               plx      49.9996       0.0187      0.0006   1082.1832   523.540 ⋯
               b_e       0.2855       0.1413      0.0099    211.3560   256.872 ⋯
               b_A     233.4996     632.2887     51.2614    154.5899   440.280 ⋯
               b_B    -374.1469     402.5629     43.9531     93.2474   168.859 ⋯
               b_F     610.0925     665.6646     70.3431     91.2193   160.549 ⋯
               b_G     266.2742     349.9409     29.1934    152.5400   292.607 ⋯
              b_θx      -0.1287       0.0178      0.0007    644.4020   645.568 ⋯
              b_θy      -0.9977       0.0912      0.0030    910.2122   704.767 ⋯
               b_θ      -1.6991       0.0132      0.0006    541.7513   636.298 ⋯
               b_M       1.2123       0.1060      0.0047    534.8304   285.444 ⋯
              b_tp   28910.1724   21517.5636   1290.1655    313.2953   499.616 ⋯
      b_GPI_jitter       0.0000       0.0000         NaN         NaN        Na ⋯
  b_GPI_northangle       0.0000       0.0000         NaN         NaN        Na ⋯
  b_GPI_platescale       1.0000       0.0000         NaN         NaN        Na ⋯
                                                               3 columns omitted

Quantiles
        parameters          2.5%        25.0%        50.0%        75.0%        ⋯
            Symbol       Float64      Float64      Float64      Float64      F ⋯

                 M        1.0058       1.1451       1.2129       1.2827        ⋯
               plx       49.9625      49.9868      50.0004      50.0125      5 ⋯
               b_e        0.0157       0.1800       0.3023       0.4061        ⋯
               b_A     -948.2615    -353.7139     377.0830     739.4646    121 ⋯
               b_B     -995.1816    -687.1514    -469.0421     -51.0044     43 ⋯
               b_F     -546.7853      83.3356     627.1327    1083.0204    192 ⋯
               b_G     -481.8932      18.2966     394.7615     537.5368     70 ⋯
              b_θx       -0.1656      -0.1402      -0.1283      -0.1170      - ⋯
              b_θy       -1.1853      -1.0539      -0.9910      -0.9407      - ⋯
               b_θ       -1.7252      -1.7079      -1.6988      -1.6903      - ⋯
               b_M        1.0058       1.1451       1.2129       1.2827        ⋯
              b_tp   -25875.7635   17162.9402   34824.6487   47814.2470   4965 ⋯
      b_GPI_jitter        0.0000       0.0000       0.0000       0.0000        ⋯
  b_GPI_northangle        0.0000       0.0000       0.0000       0.0000        ⋯
  b_GPI_platescale        1.0000       1.0000       1.0000       1.0000        ⋯
                                                                1 column omitted

Notice that the fit was very very fast! The Thiele-Innes orbital paramterization is easier to explore than the default Campbell in many cases.

We now display the results:

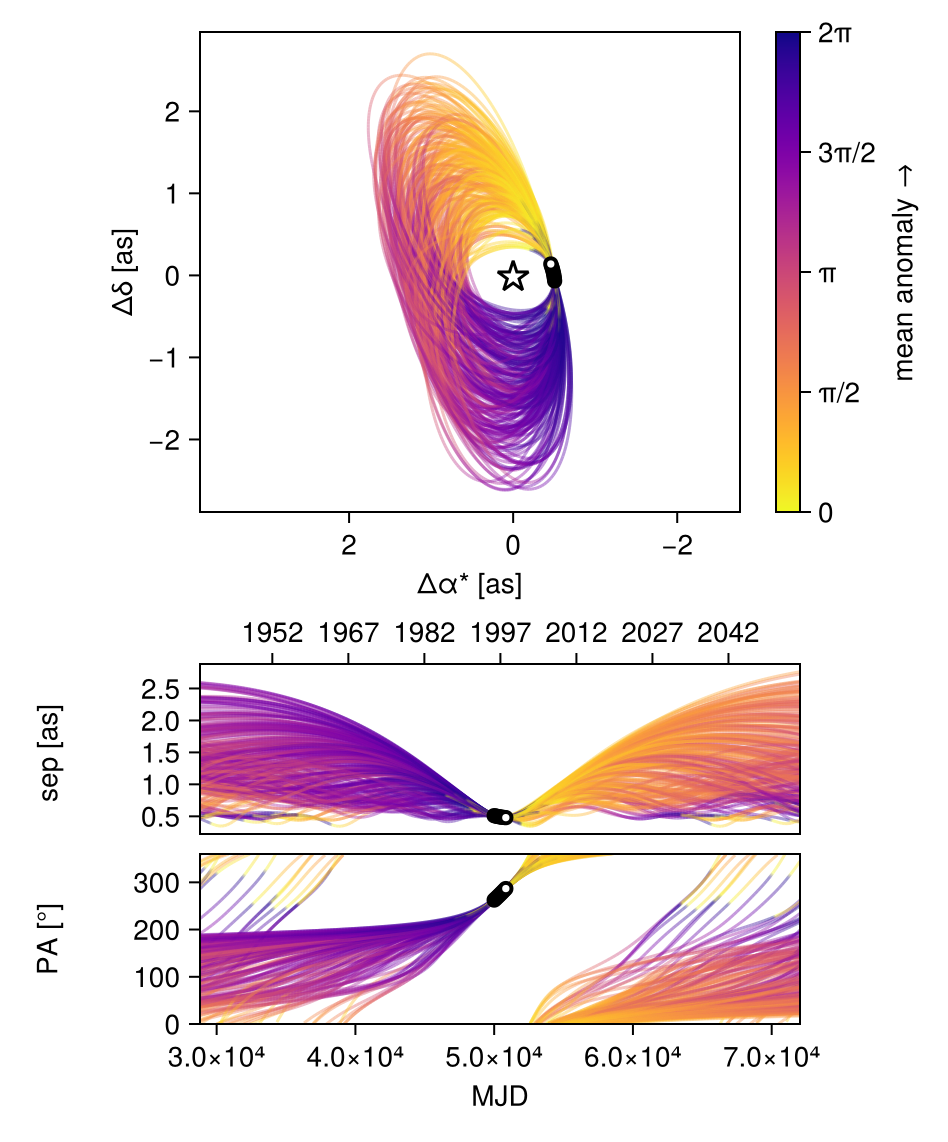

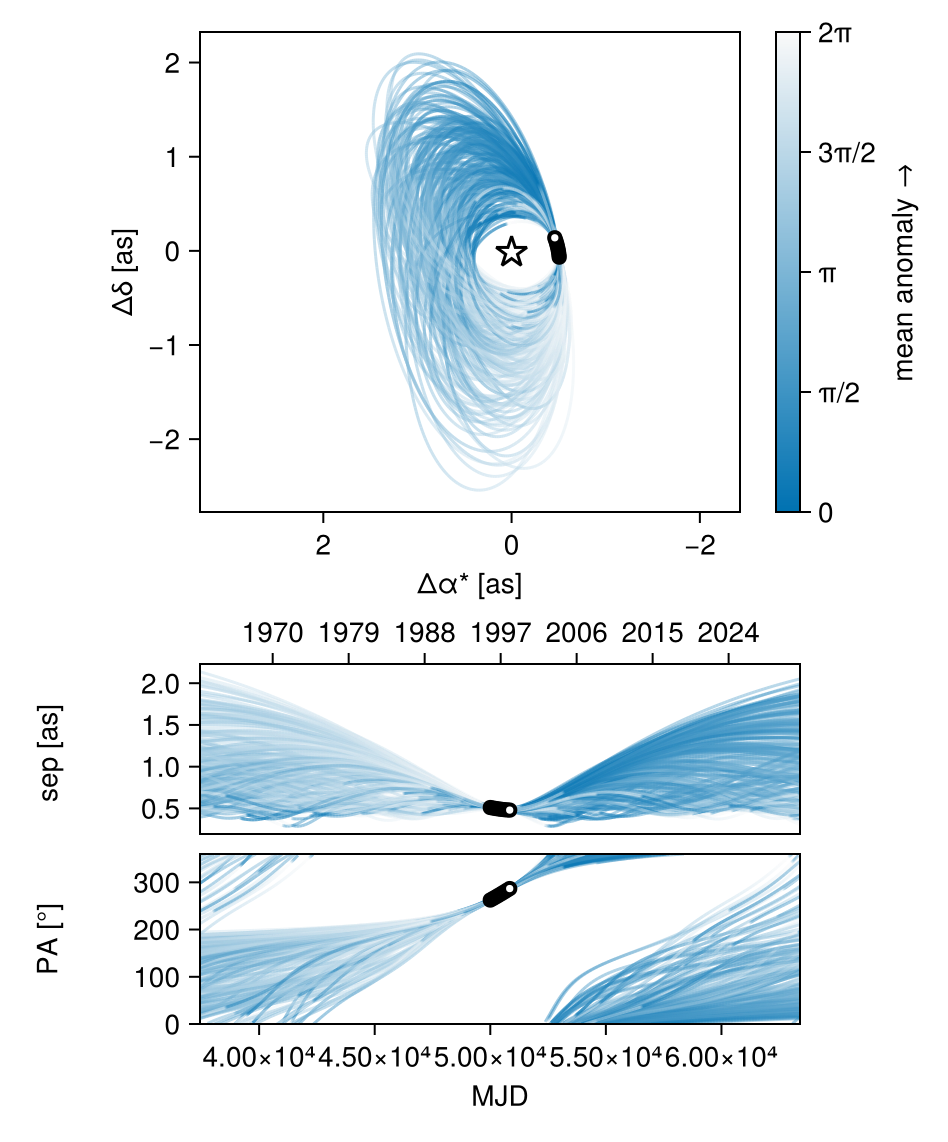

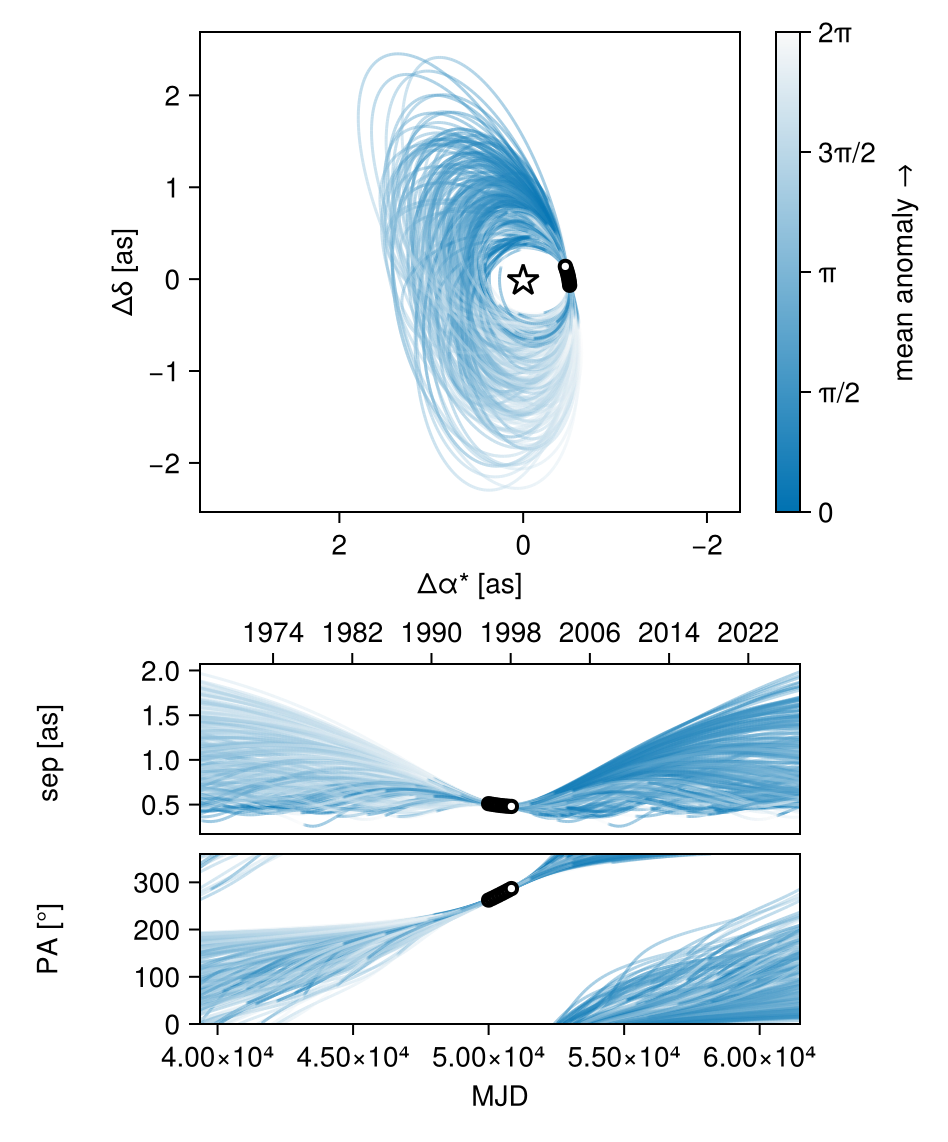

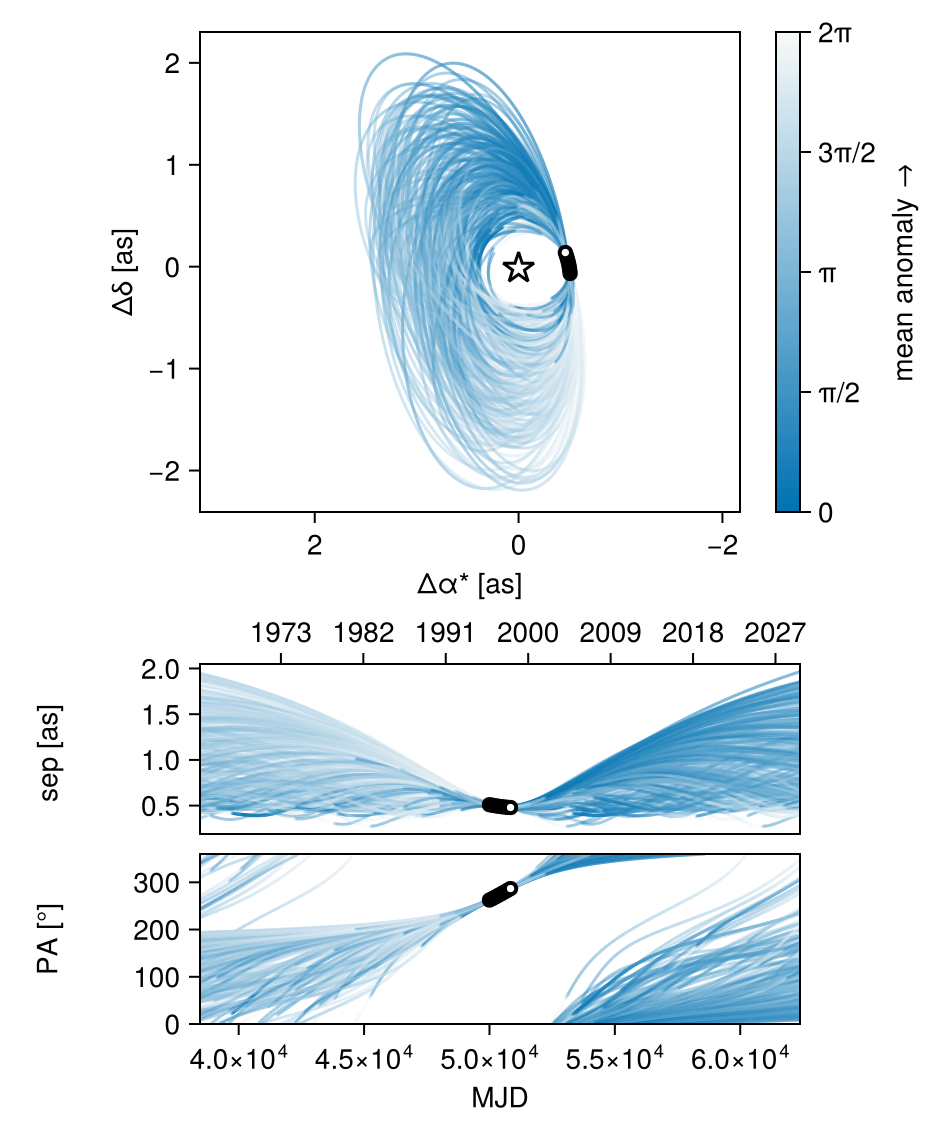

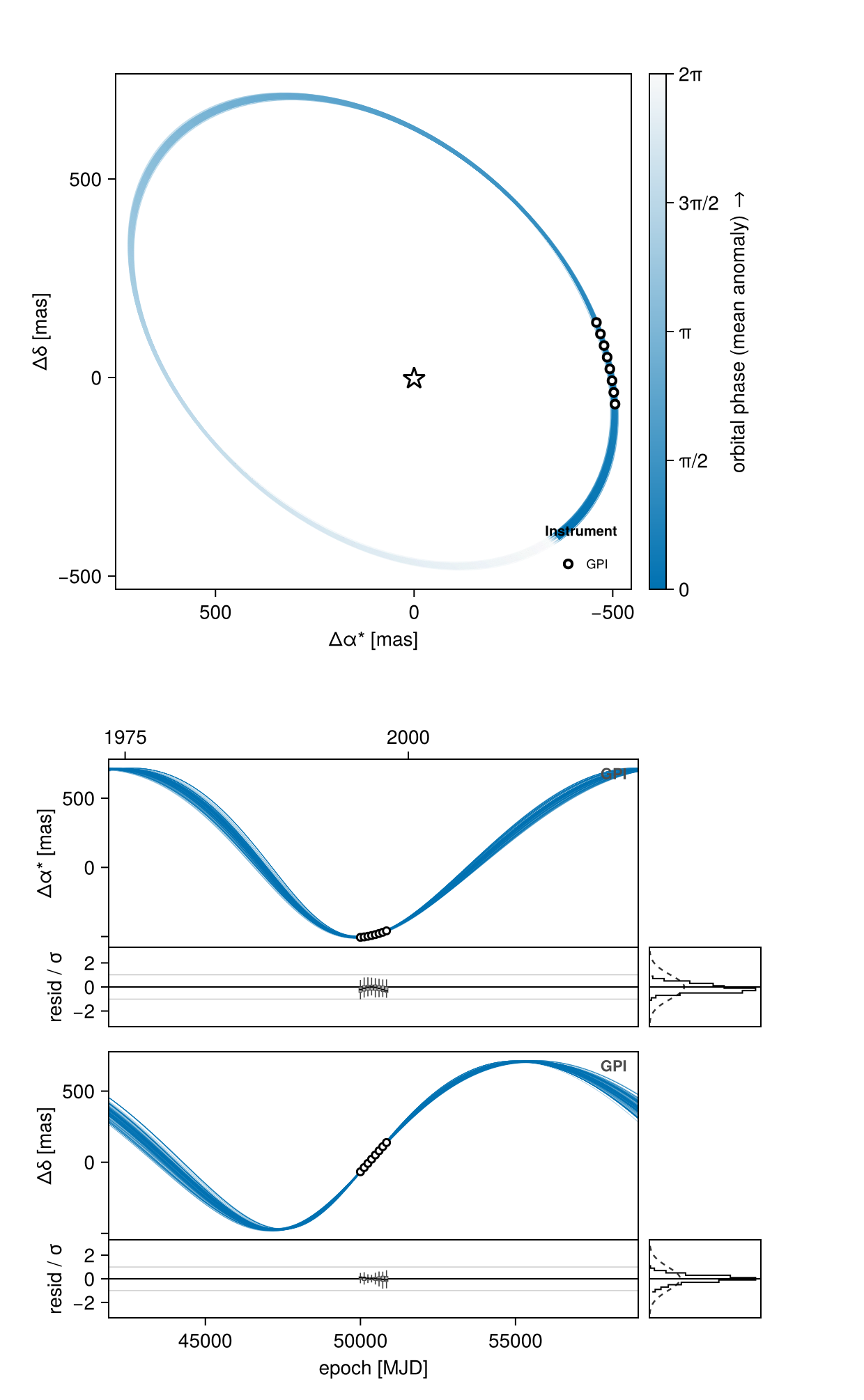

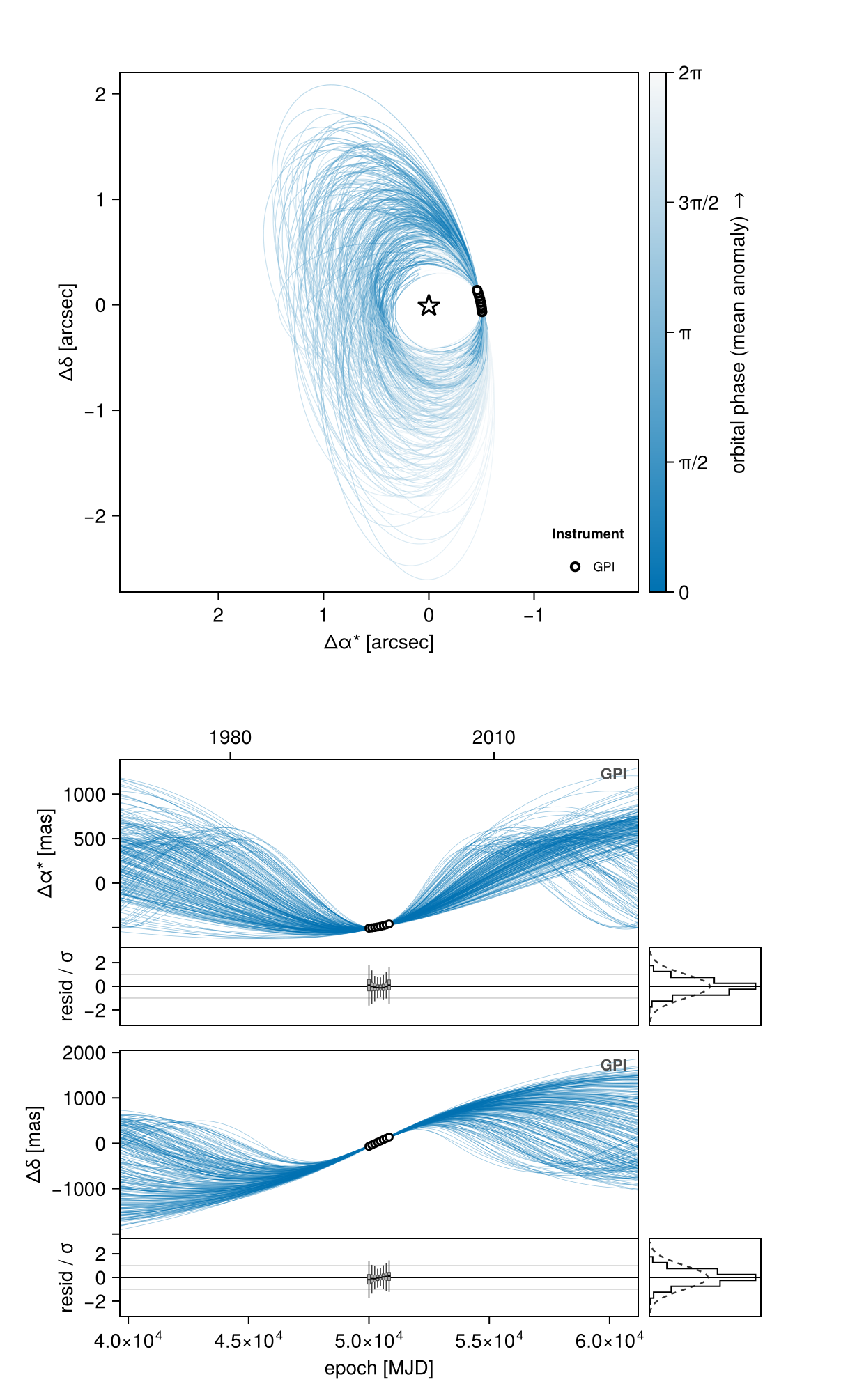

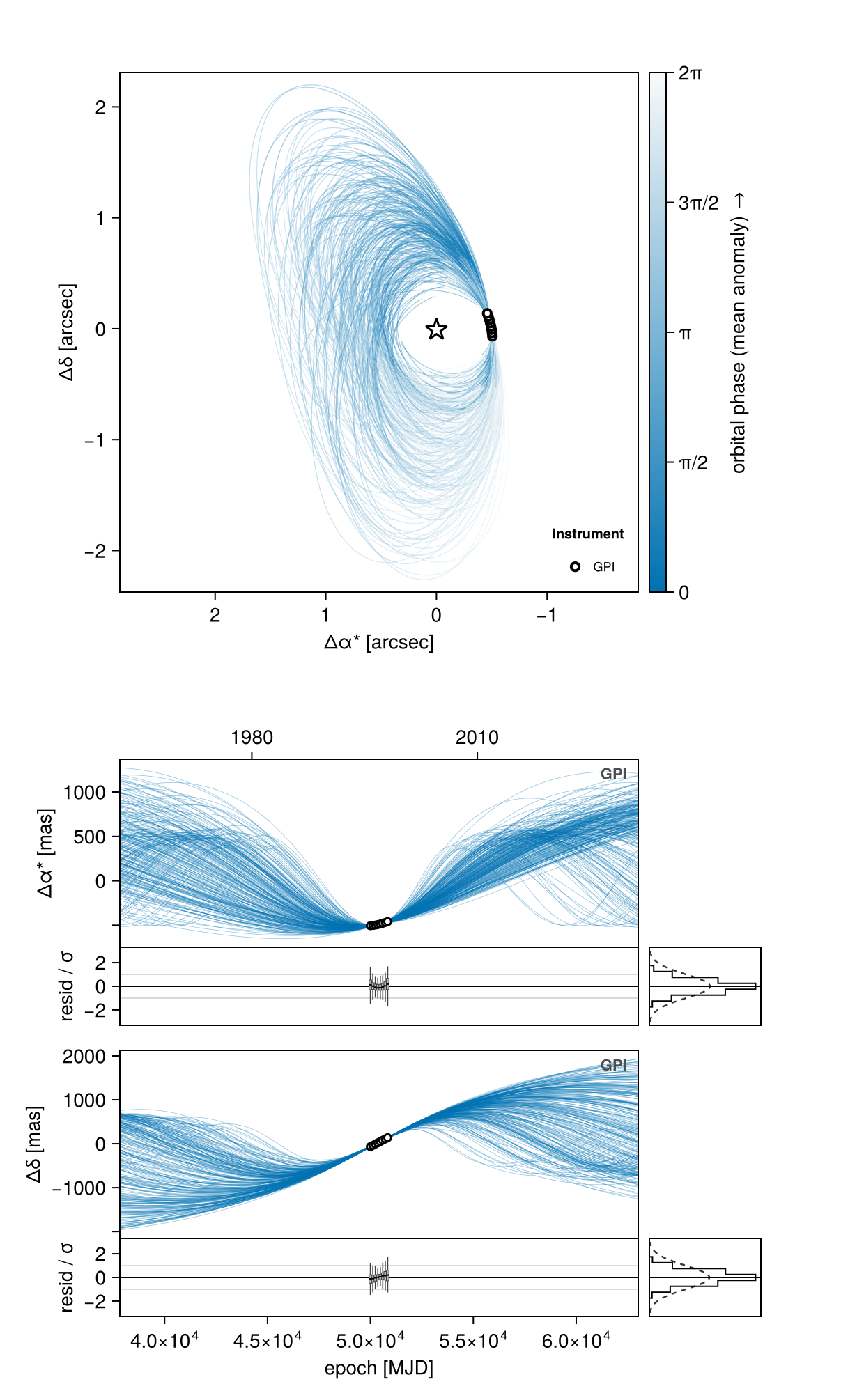

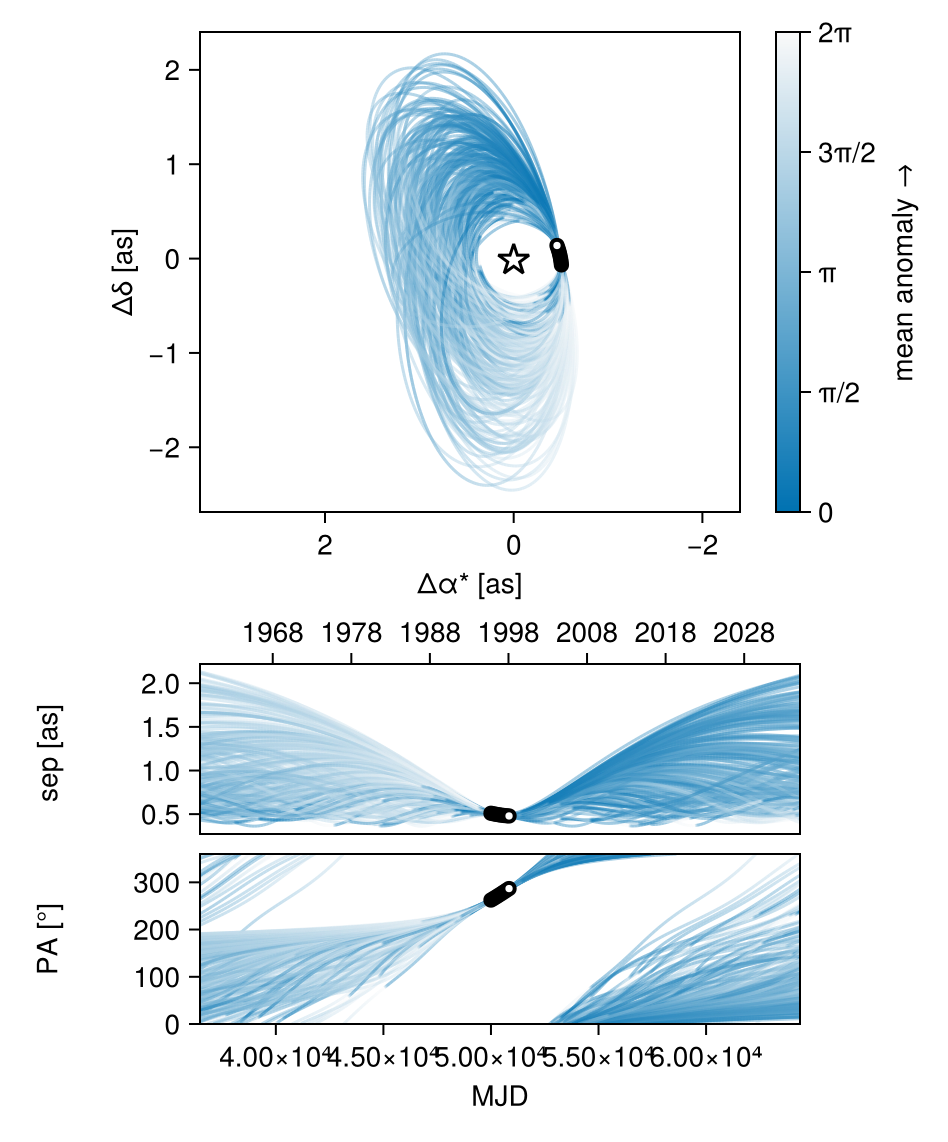

octoplot(model,results)
Example block output

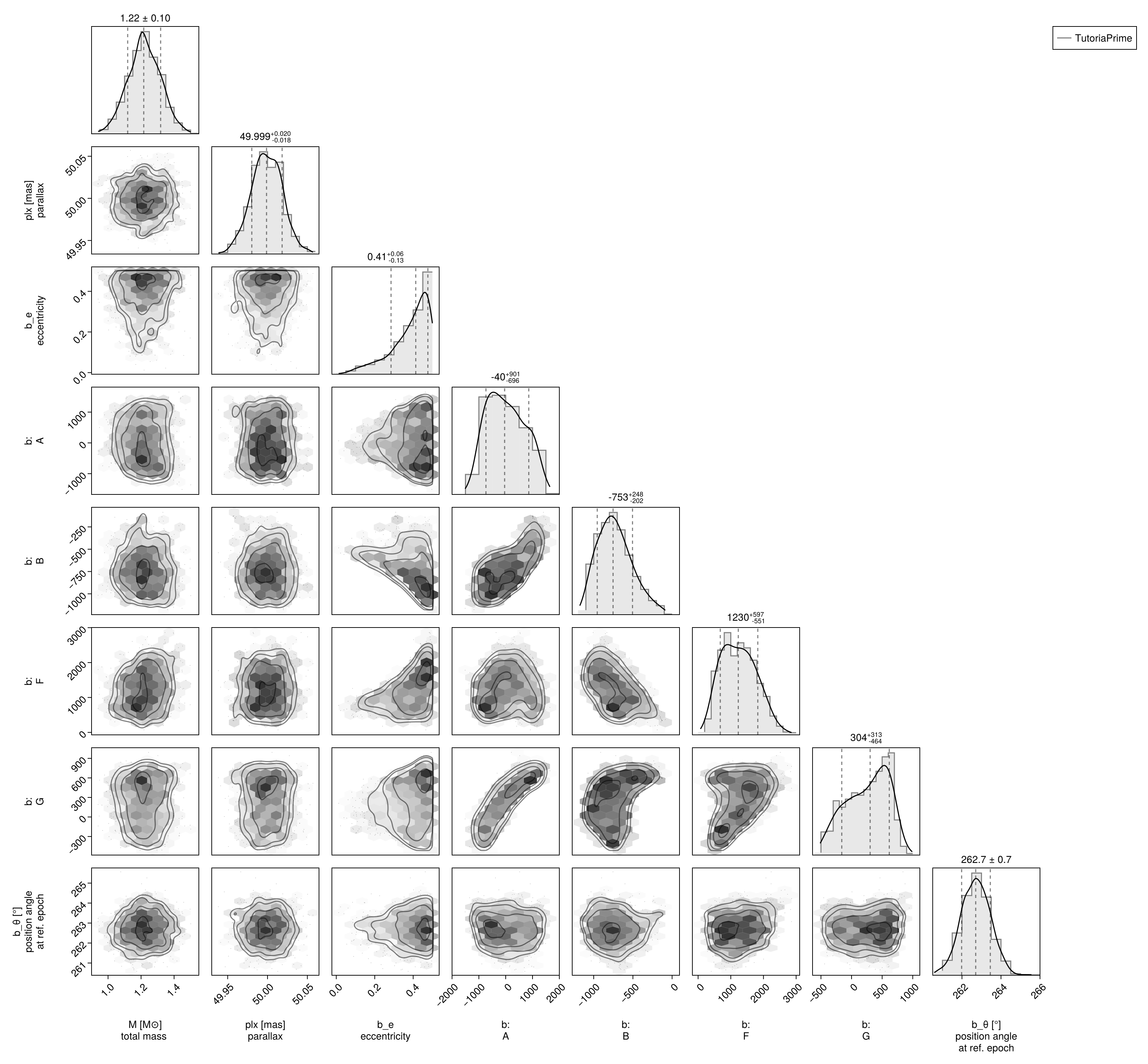

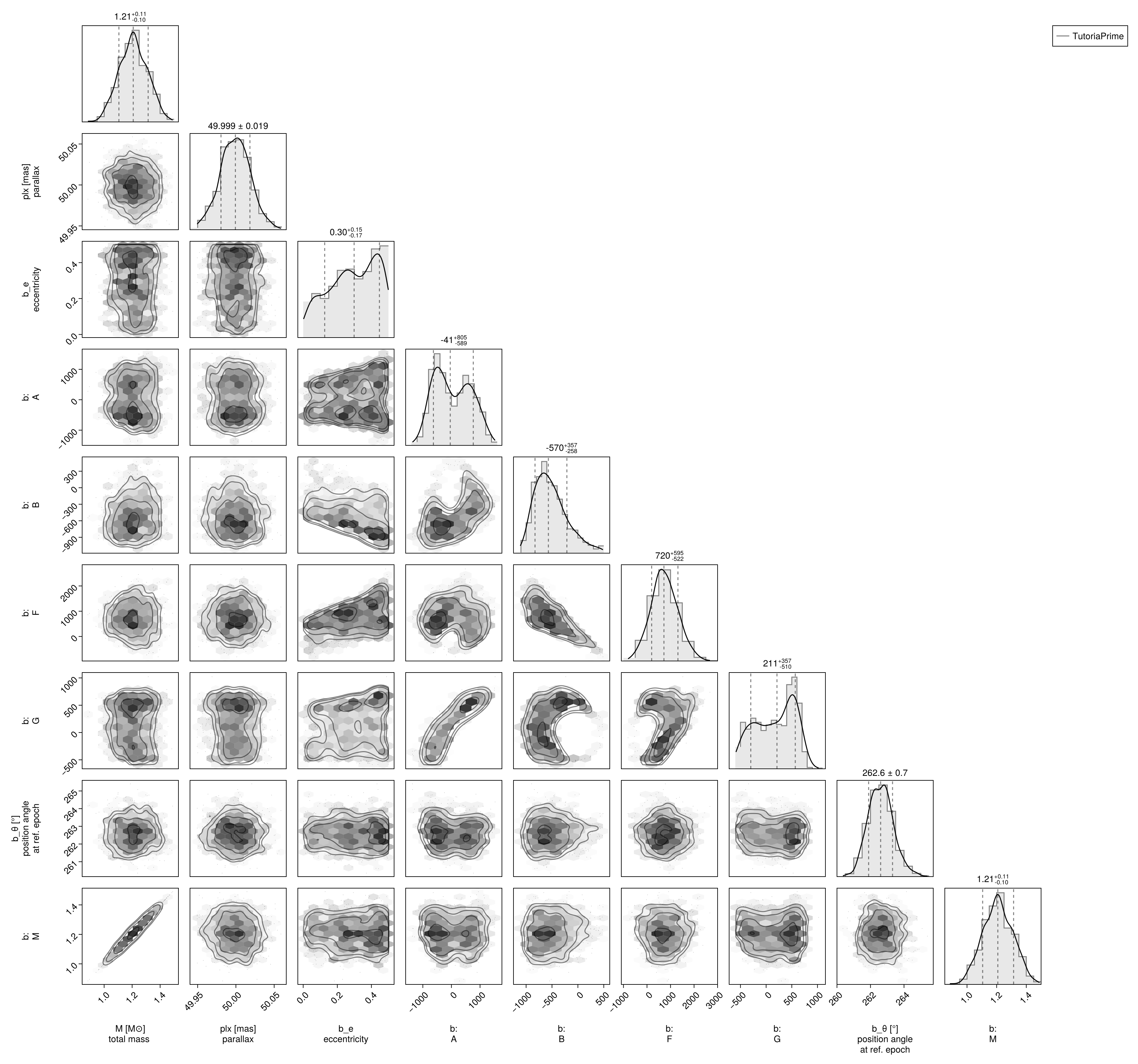

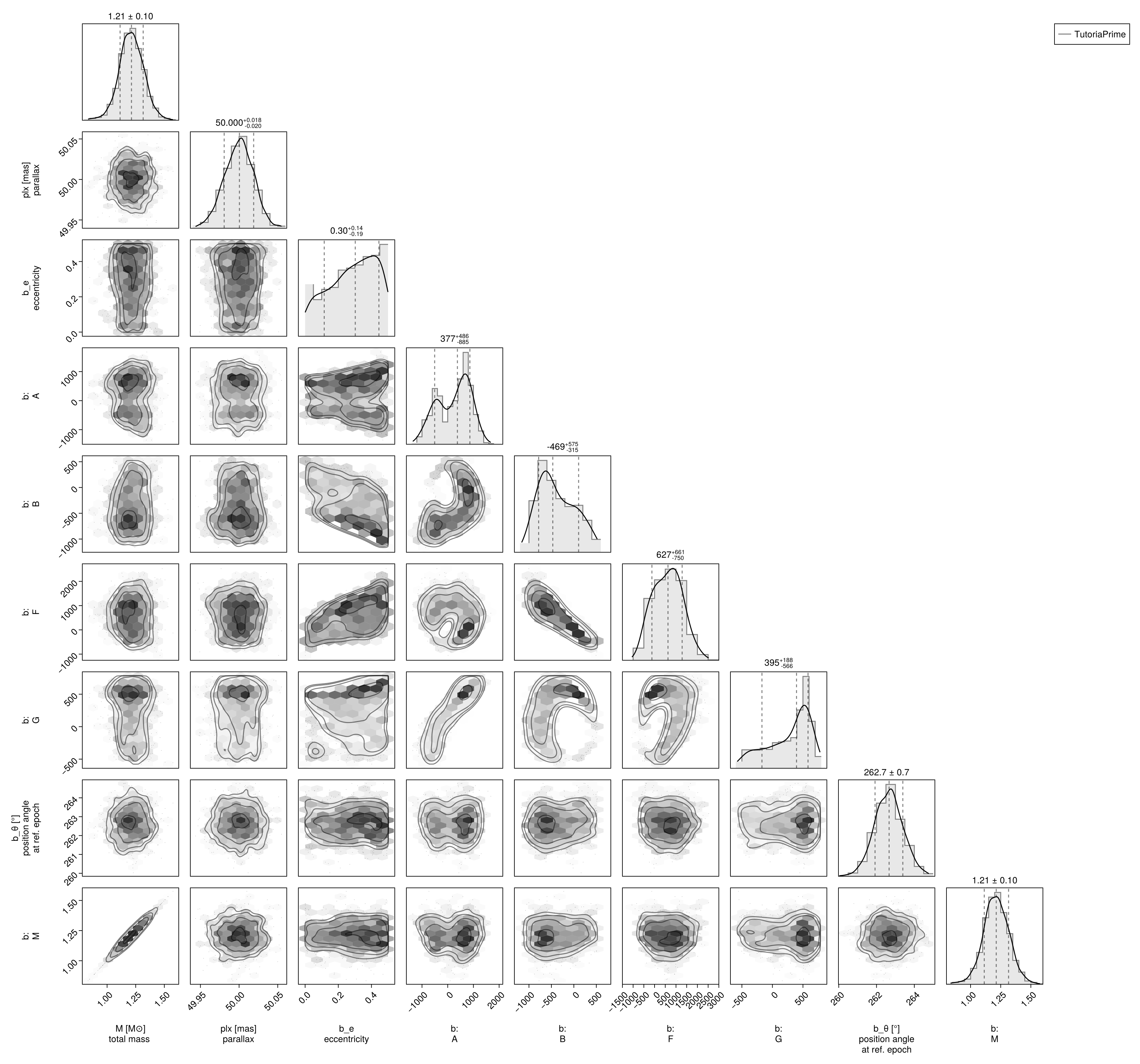

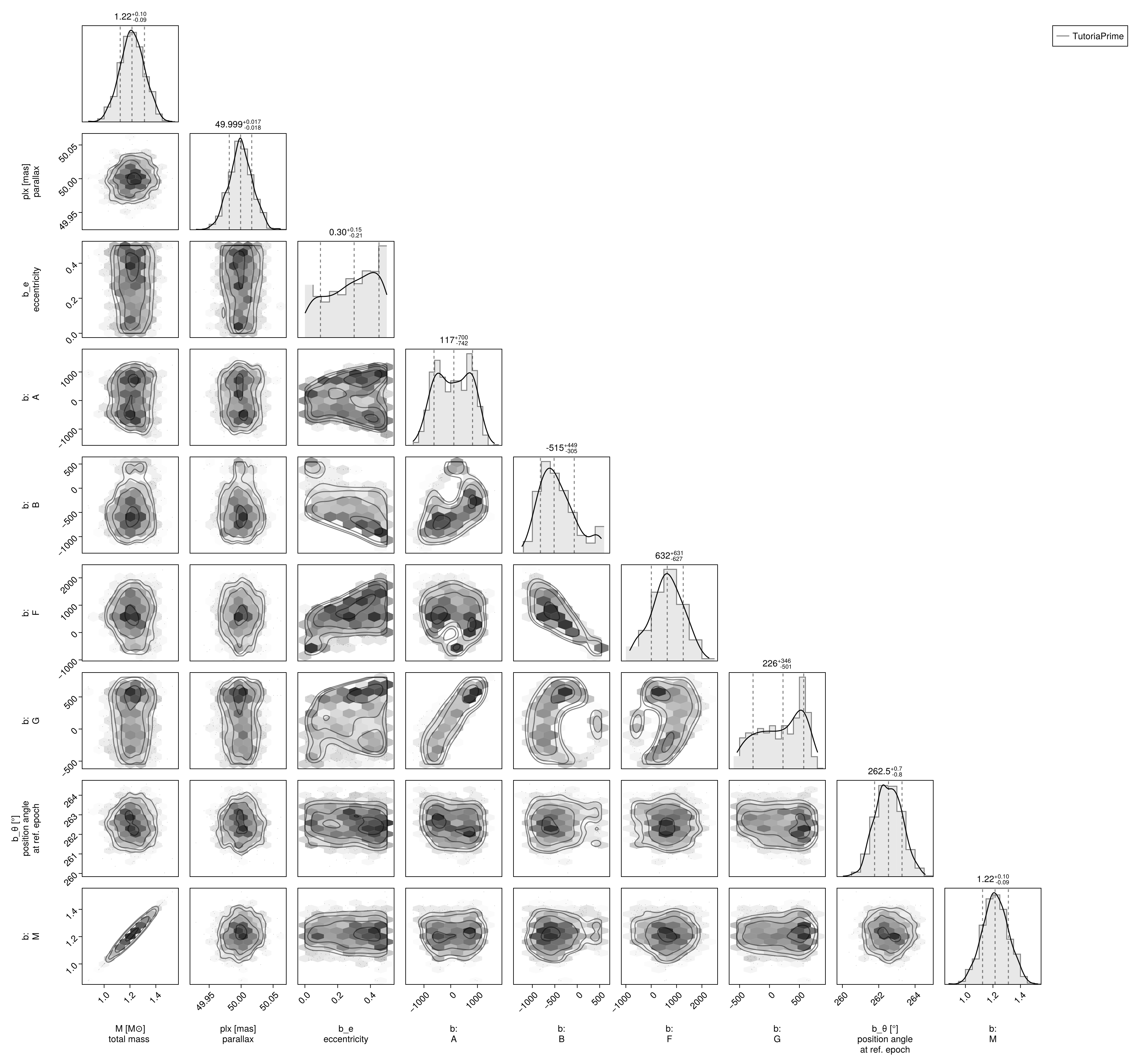

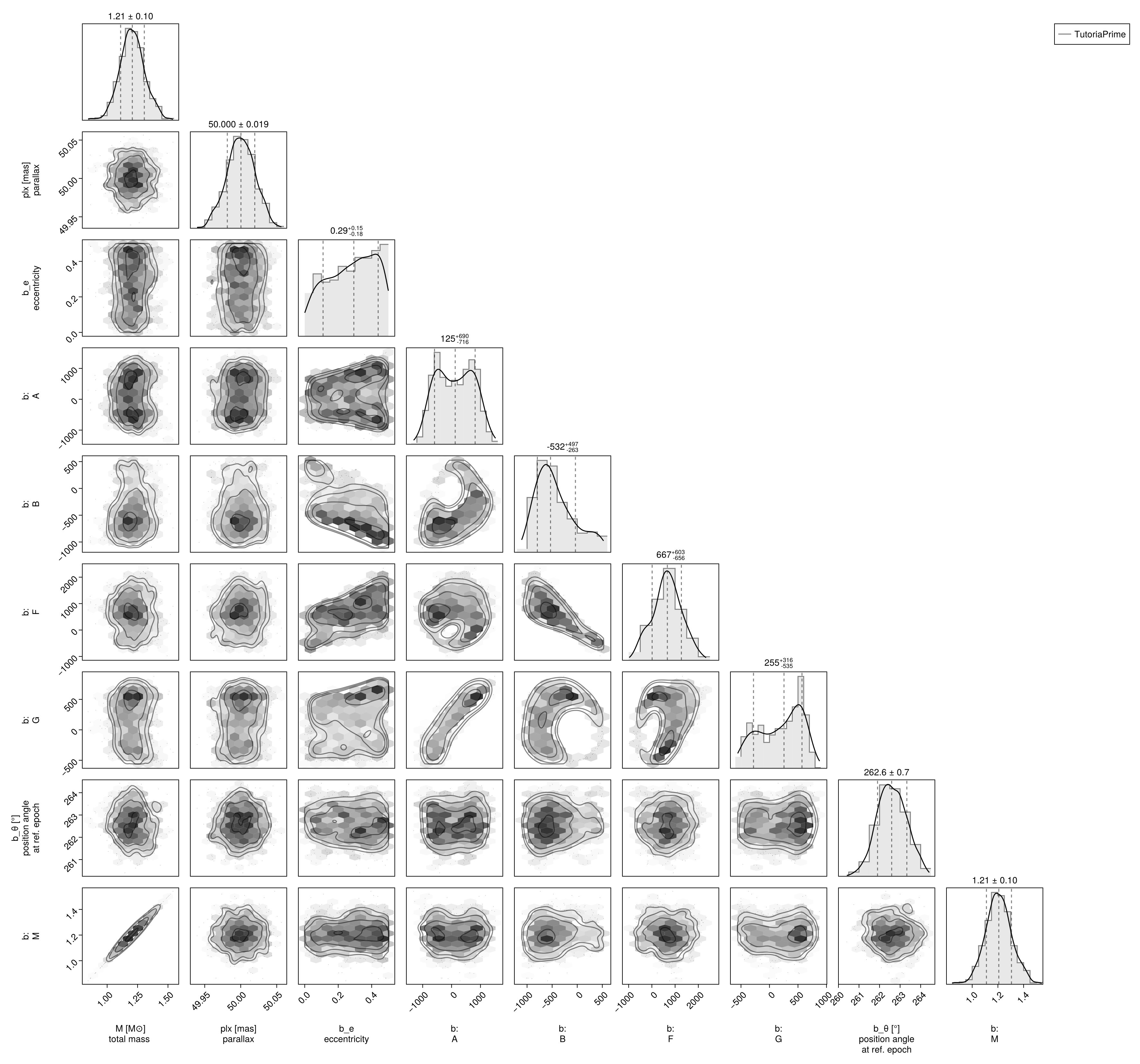

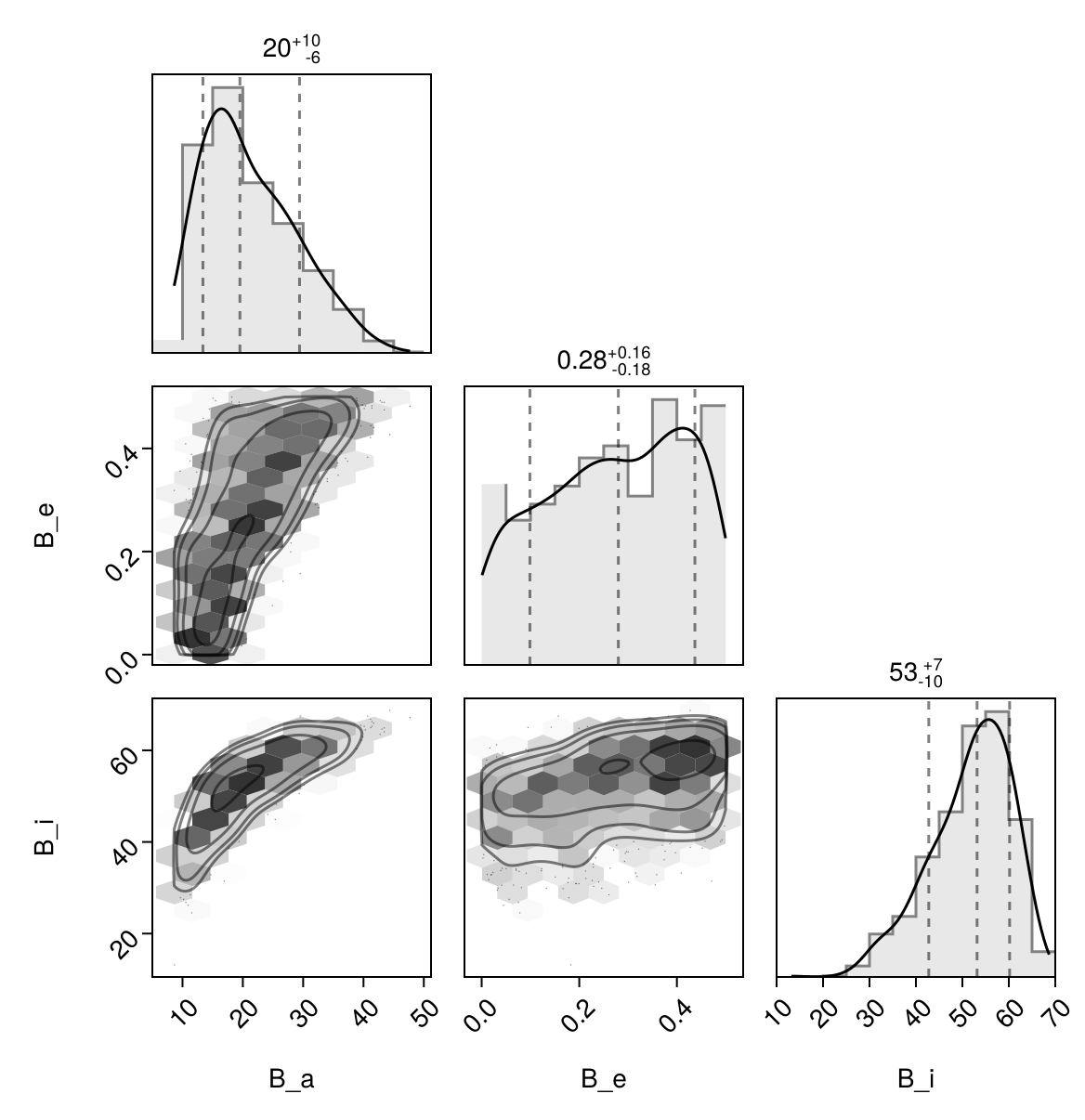

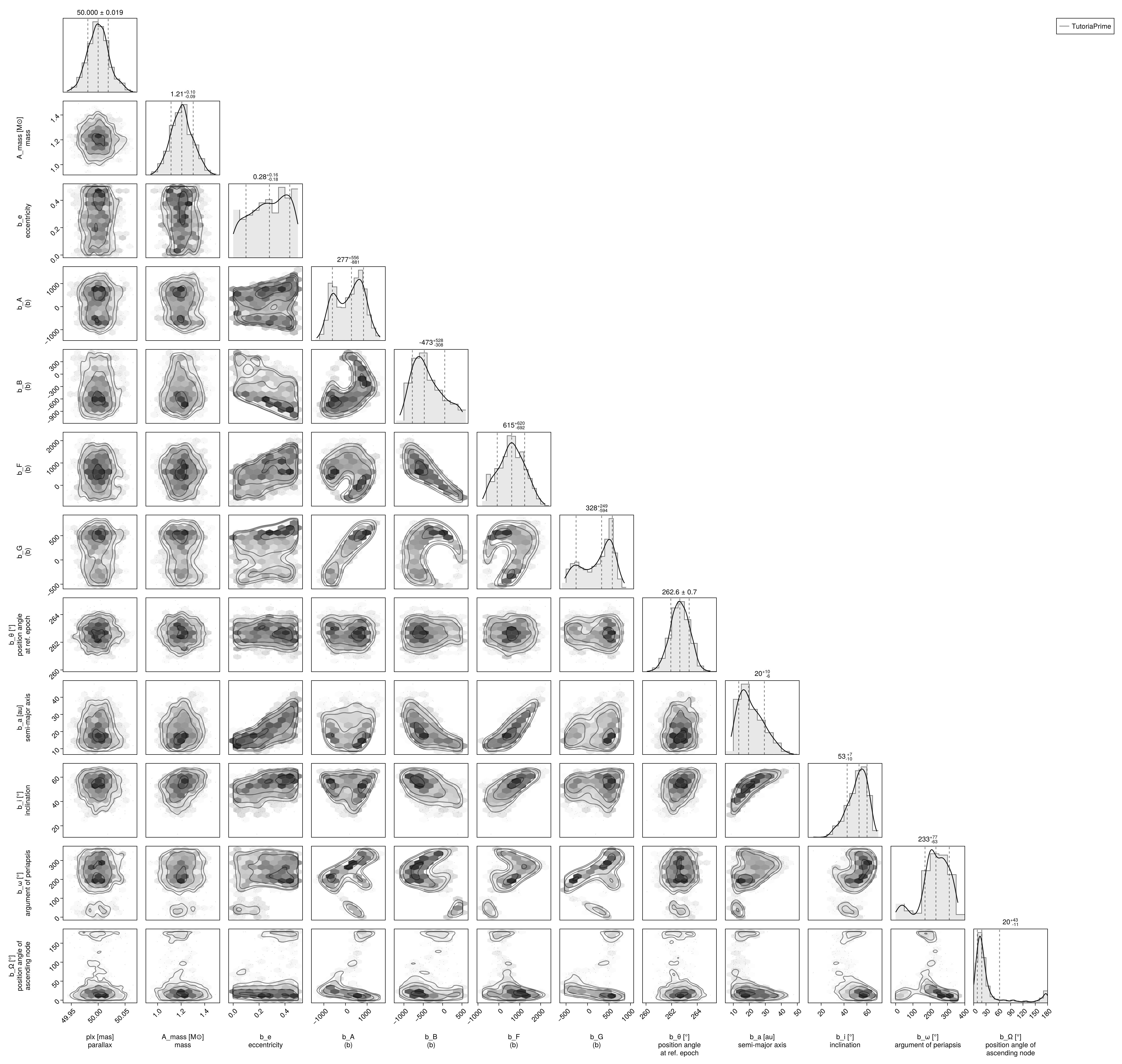

octocorner(model, results, small=false)
Example block output

Conversion back to Campbell Elements

To convert our chain into the more familiar Campbell parameterization, we have to do a few steps. We start by turning the chain table into a an array of orbit objects, and then convert their type:

orbits_ti = Octofitter.construct_elements(model, results, :b, :) # colon means all rows
1000-element Vector{ThieleInnesOrbit{Float64}}:
 ThieleInnesOrbit{Float64}(0.032454084042727586, 49984.76870154075, 1.1601314610425808, 50.00569326150691, -76.58106223995806, -525.9732228245301, 706.238084488939, 83.36397755241754, -10.198531189691366, -3.8401366865673725, 19172.271489496732, 0.11970065386903121, 1.0329982391388255)
 ThieleInnesOrbit{Float64}(0.1899768796373195, 48790.03367406718, 1.1651350276883834, 50.01315727142071, -435.18007548567897, -612.3114208685611, 803.3929583524355, -116.93400764242148, -11.476287776049203, -9.685163821652473, 27809.51830431813, 0.08252330760763293, 1.21205005107619)
 ThieleInnesOrbit{Float64}(0.29205476626579563, 49093.43779085516, 1.2548258161040142, 49.97353739682511, -420.87869560689404, -729.1963965550943, 1042.3939712184483, -53.242022043744356, -15.922382134453368, -10.056815629098486, 36392.445518988534, 0.06306070946097628, 1.350954213372659)
 ThieleInnesOrbit{Float64}(0.4530470362082604, 1221.4163319516374, 1.298063784934474, 49.974954884451, 1326.0698256114615, -210.96040474739132, 673.0505178191411, 742.166306640493, -13.240590651806894, 22.255264117081115, 52556.38836824396, 0.04366611756819285, 1.6299145868836524)
 ThieleInnesOrbit{Float64}(0.4004219160691444, 9820.607569861408, 1.2492918503895845, 49.97453407985317, 1166.4561760651245, -258.33555711737864, 589.070668799314, 656.5859345084158, -10.70631475685325, 19.354304132508464, 43810.76406886087, 0.0523828671383182, 1.5282928256473634)
 ThieleInnesOrbit{Float64}(0.4479731002113693, -19445.509149317004, 1.325432469607028, 49.95833209790465, 1336.5054655584488, -481.1634600033882, 1311.5138766264201, 664.5464044854396, -24.571308901715295, 23.36841827966076, 73087.36106272704, 0.03139986722844902, 1.6195715022779777)
 ThieleInnesOrbit{Float64}(0.45401341965193553, -6603.648979983438, 1.2384409668012215, 50.00321398368114, 885.0952587748656, -674.6673652265722, 1317.333876020756, 535.2603889558266, -22.68535366503559, 14.189592162373286, 58802.85346932584, 0.03902758621474861, 1.631898800462038)
 ThieleInnesOrbit{Float64}(0.3903437947499909, 33148.96280378238, 1.2360099951627475, 50.0030473231832, 731.969112771129, -139.52616338810066, -6.4055338113531235, 580.4908182989424, -3.441876757411272, -9.95641303689204, 19651.021805823126, 0.11678443269384056, 1.5101448370148318)
 ThieleInnesOrbit{Float64}(0.43794387905437254, 33992.53760307361, 1.370695386836974, 50.00557005812474, 730.0277045312074, 161.3165083020807, -300.95919361964445, 480.01666382675677, -5.156374561754004, -11.034283236721729, 19622.041318280317, 0.11695691575724766, 1.5994885199333875)
 ThieleInnesOrbit{Float64}(0.35116301945000505, 31491.051773147075, 1.2570935583223972, 50.02127159154983, 829.1309730285808, 47.09646734353488, -106.84407718054226, 544.2357365880226, -2.009758145108638, -12.519440768358237, 22279.473209870746, 0.10300662909886898, 1.443065612757085)
 ⋮
 ThieleInnesOrbit{Float64}(0.335503060013245, -325.5344993641338, 1.1466247908376146, 49.977964597233736, 315.36043757790804, -648.1740809400987, 1318.1322496357113, 515.5211117107972, -24.408466944369675, 1.3374253787421366, 51492.55371112569, 0.044568258282973665, 1.4176726176685568)
 ThieleInnesOrbit{Float64}(0.2525981480362284, 49867.12085225662, 1.2109495071680978, 49.994923261428475, -127.28129306843854, -690.6525485628918, 1089.1622138170596, 202.05843367666296, -18.194437480187343, -6.117004636005404, 36578.99384110664, 0.06273910768065878, 1.2945797153386067)
 ThieleInnesOrbit{Float64}(0.22727689190736675, 49850.396350706345, 1.22043032608204, 50.00216121758888, -128.0254192065614, -673.7771235438832, 1078.0919093482714, 193.5960101433638, -18.082937489365445, -5.937984905438647, 35749.915443037244, 0.06419409402811083, 1.2602576099977714)
 ThieleInnesOrbit{Float64}(0.09463718541130009, 49653.022522675004, 1.0241848249863046, 49.99600782562118, -172.83576039834333, -556.1434877732275, 573.6801209921916, -64.31079596735198, -4.919500241343527, -5.1547132556237045, 16228.402379107414, 0.14141462479398842, 1.099572252903708)
 ThieleInnesOrbit{Float64}(0.23854749663864588, 49954.7332025864, 1.060025343536724, 49.99617722769877, -101.78893611414676, -671.1612432356814, 902.3614448316935, 137.42897284035502, -13.3871716673775, -5.501253543361194, 29538.133453437596, 0.07769392189472499, 1.2753662601294082)
 ThieleInnesOrbit{Float64}(0.20653095201865806, 21292.756079748327, 1.0583645901225263, 50.00706614281452, 246.76646139133564, -547.4907746907311, 888.4094355415031, 358.9800875419058, -14.943392572735531, 0.6072236697218613, 29801.741506898343, 0.0770066887841479, 1.2331168683586748)
 ThieleInnesOrbit{Float64}(0.26970037361744015, 49923.33264372273, 0.9453589093668727, 50.008009844426994, -101.17769397994562, -694.061881012832, 1073.757870884658, 157.02771520790733, -17.304991741913717, -5.0287822201063985, 39494.04625146148, 0.05810833913636843, 1.318560569772865)
 ThieleInnesOrbit{Float64}(0.10456425697514105, 23365.988506405927, 1.0078938690065755, 50.02255129933859, 76.71776563494947, -545.8659013188665, 868.5870536506857, 177.00837745238408, -13.904572678845765, -0.8618674972906151, 27188.526491149147, 0.08440815776443156, 1.1106527077947674)
 ThieleInnesOrbit{Float64}(0.06354072863433002, 35194.50068409238, 0.9638625212609626, 50.00108350456163, 37.595918773580905, -525.7793073099228, 547.3227417135504, 134.79038011875633, -5.441829184425789, -3.6966034775347616, 15203.05738596656, 0.15095209964580683, 1.0656942343300426)

Here is one of those entries:

display(orbits_ti[1])

We can now make a table of results (and visualize them in a corner plot) by querying properties of these objects:

table = (;
    B_a = semimajoraxis.(orbits_ti),
    B_e = eccentricity.(orbits_ti),
    B_i = rad2deg.(inclination.(orbits_ti)),
)

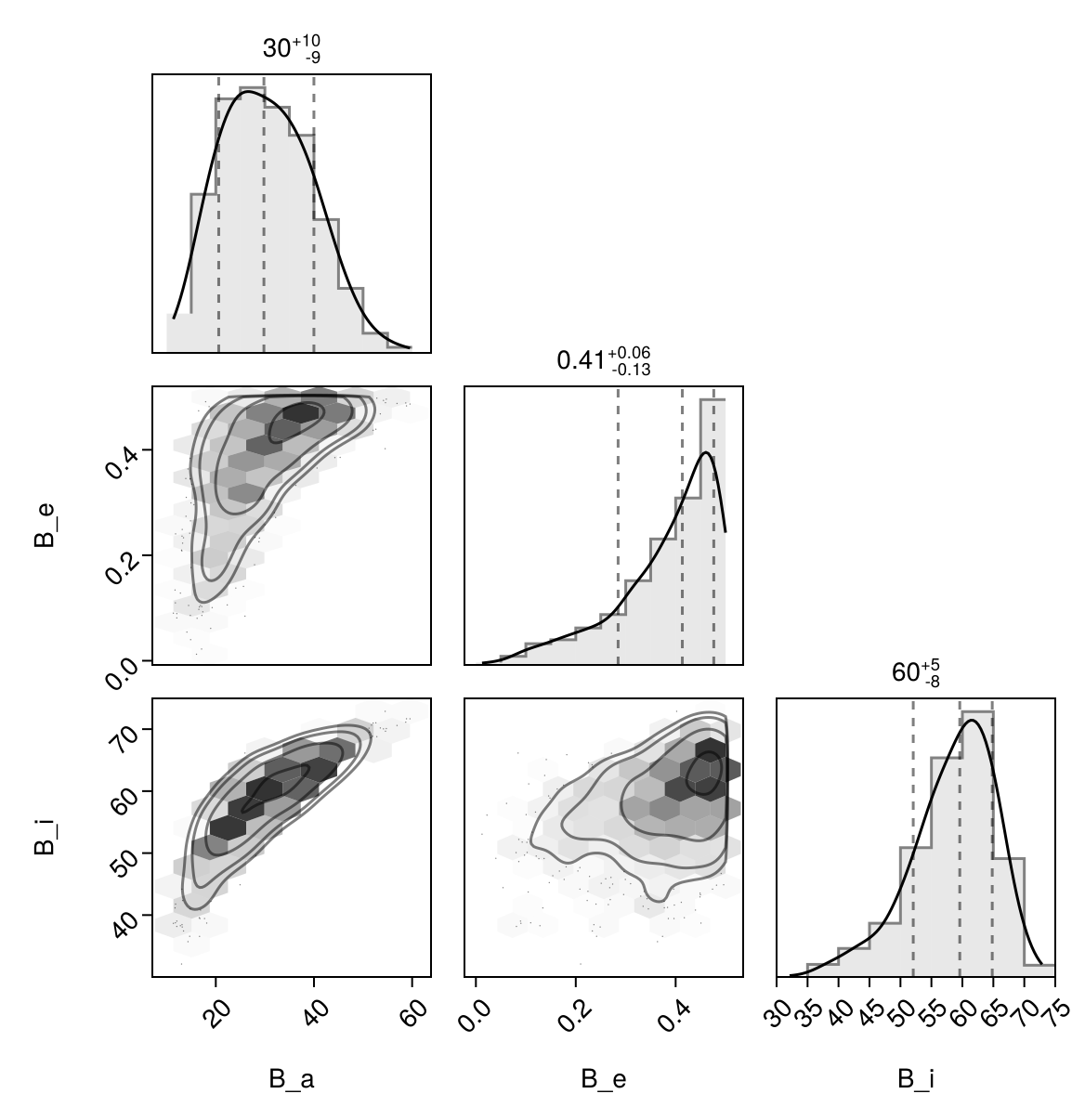

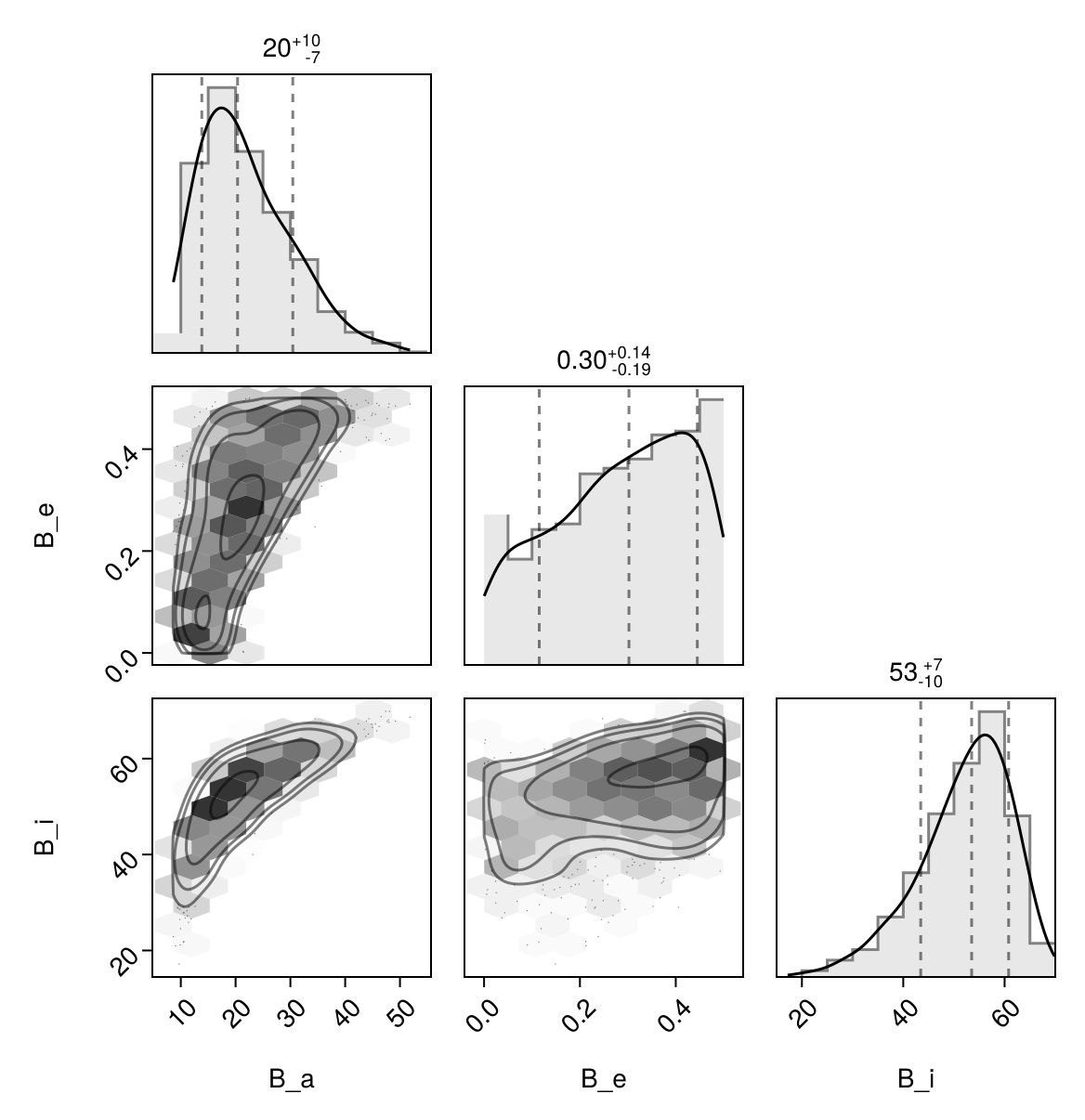

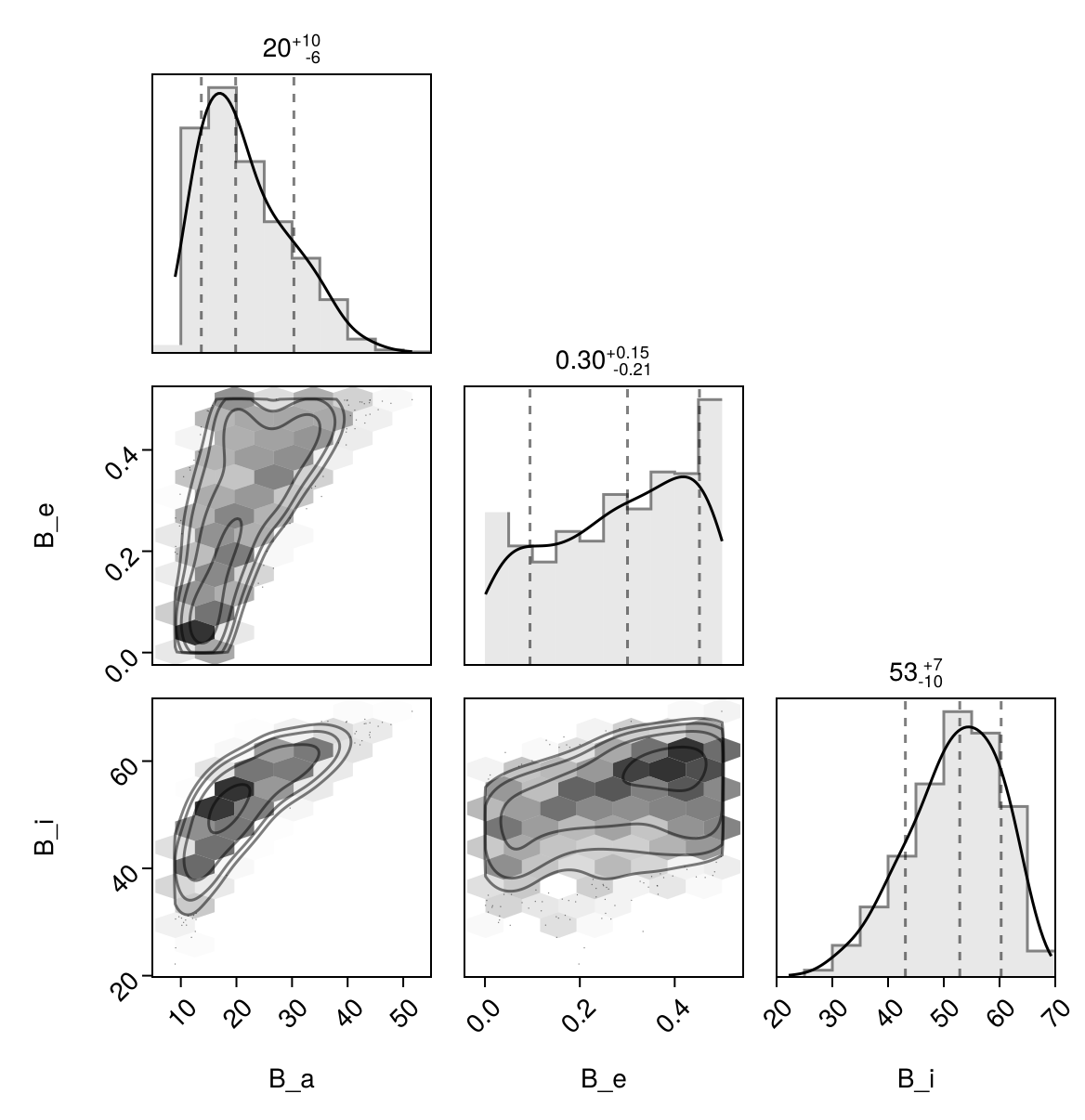

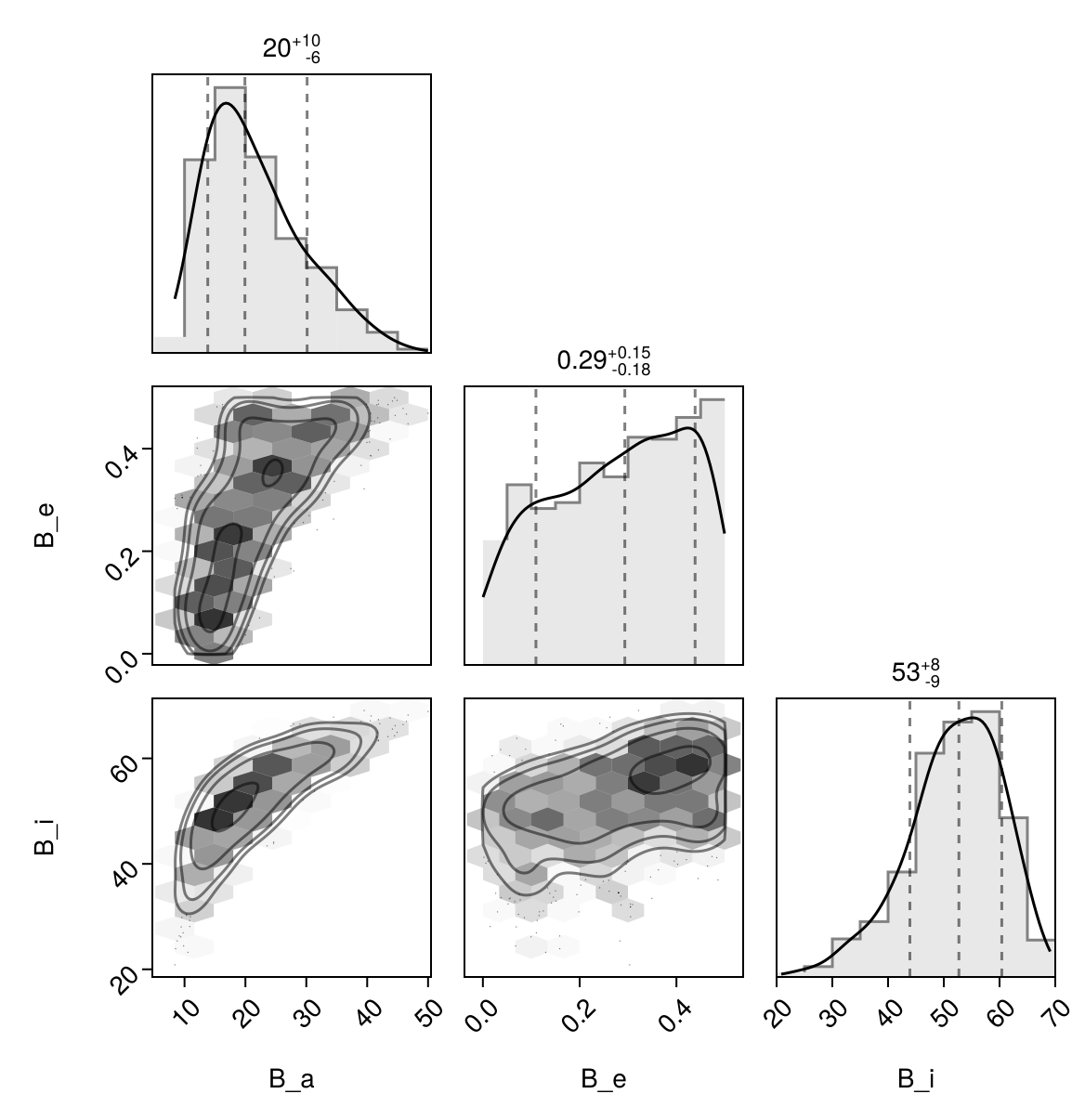

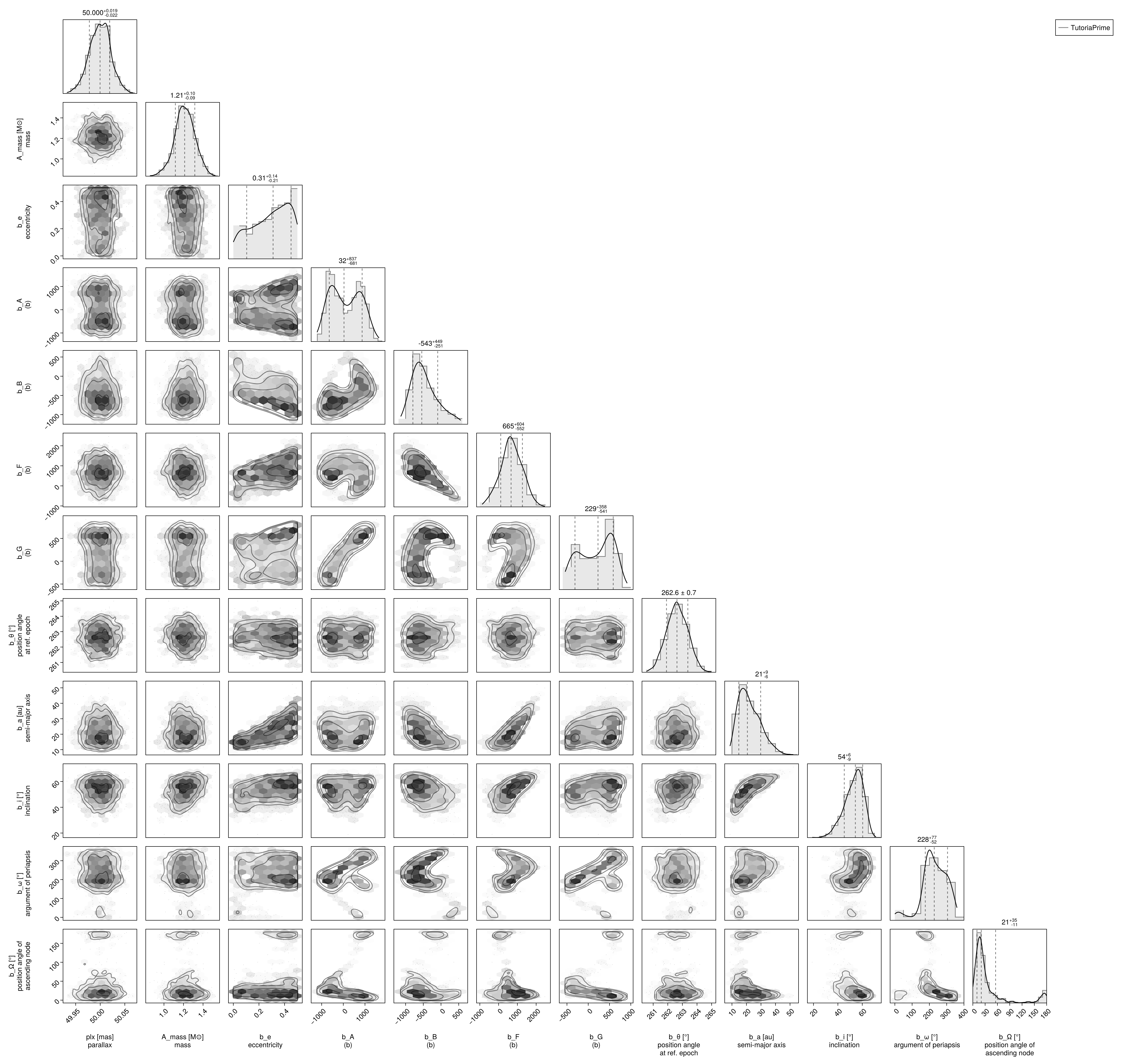

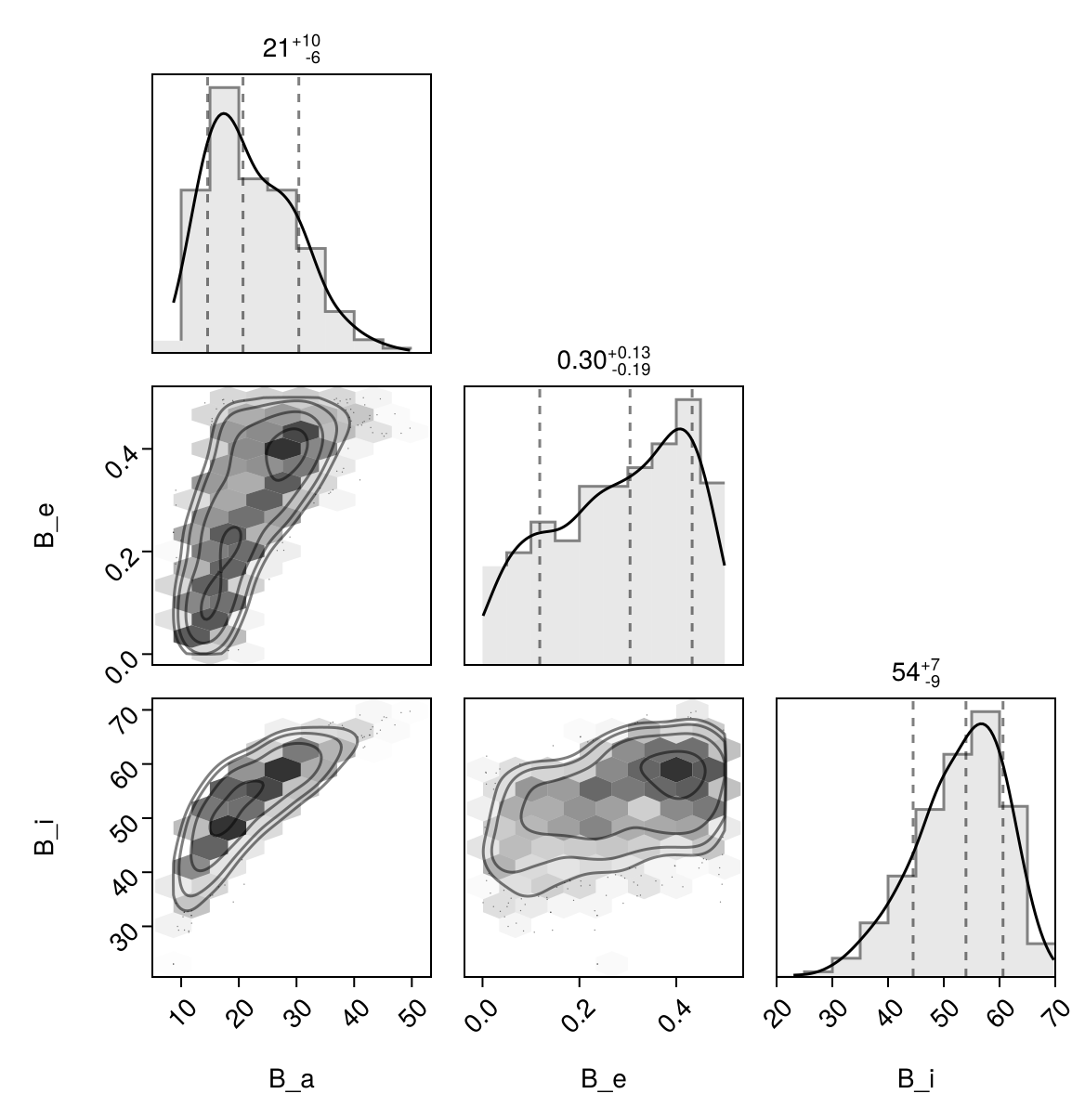

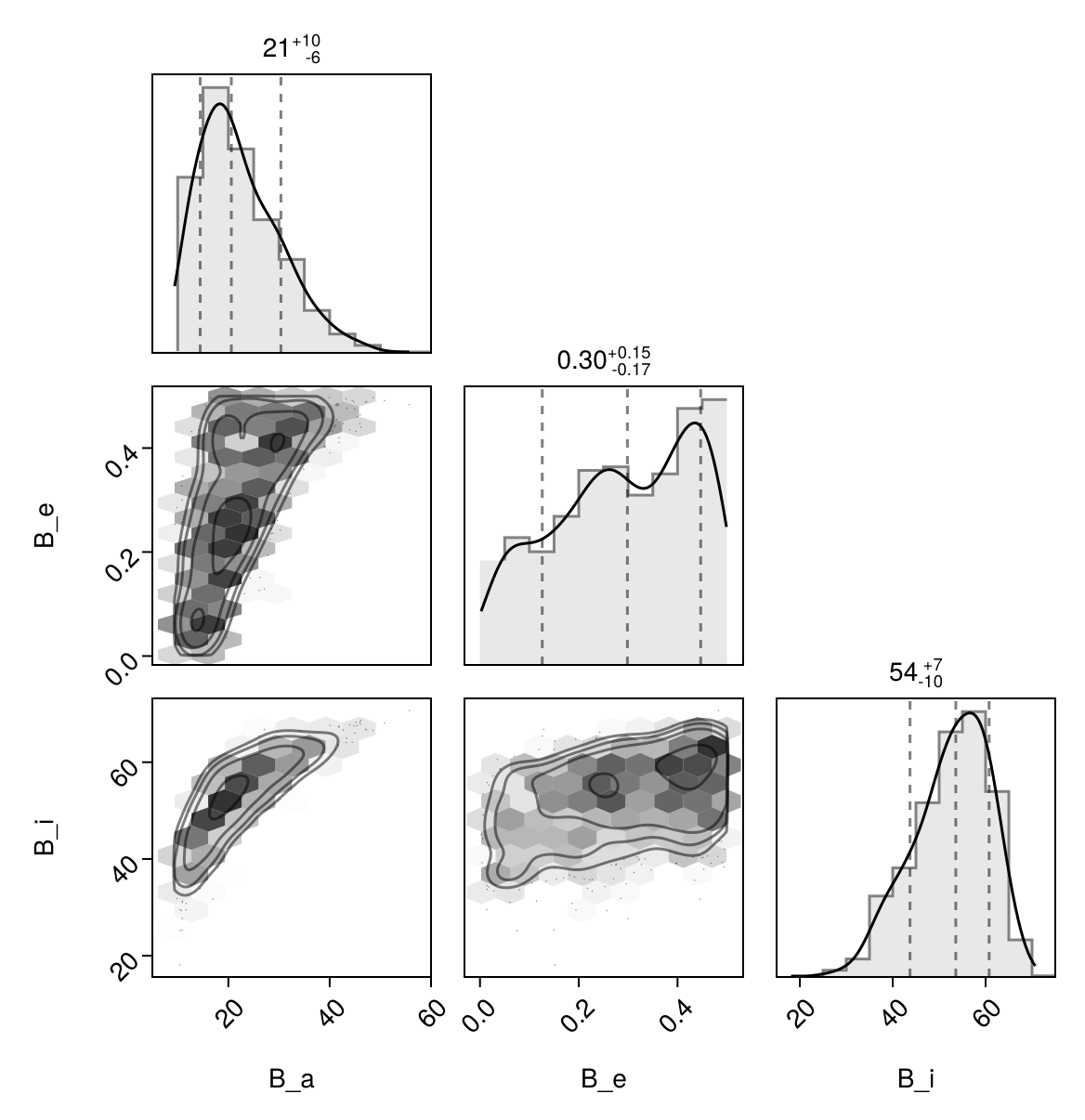

pairplot(table)
Example block output

We can also convert the orbit objects into Campbell parameters:

orbits_campbell = Visual{KepOrbit}.(orbits_ti)
orbits_campbell[1]
KepOrbit{Float64}
─────────────────────────
a   [au ] = 14.7
e         = 0.032454084
i   [°  ] = 47.7
ω   [°  ] = 249.0
Ω   [°  ] = 20.9
tp  [day] = 50000.0
M   [M⊙ ] = 1.16
period      [yrs ] : 52.5
mean motion [°/yr] : 6.86
──────────────────────────
plx [mas] = 50.0
distance    [pc  ] : 20.0
──────────────────────────
