Simulating and Fitting Gaia DR4 Data

This tutorial demonstrates how to use Octofitter to simulate Gaia DR4 data for a particular target.

Before reading this, take a look at the general Generating and Fitting Simulated Data tutorial.

To be as realistic as possible, we will select a particular star as the basis of our simulation. This will allow us to give reasonable estimates of

• the measurement epochs and scan angles (retrieved from GOST)
• the measurement noise, representative of that coordinate and target photometry/colour

"But wait, I just want to simulate a hypothetical planet, why do I have to pick a real star?"

Gaia's sensitivity is far from uniform! If you're not sure what star to use, just pick a the Gaia ID of your favourite star that has a representative magnitude and colour.

Setup

using Octofitter, OctofitterRadialVelocity, Distributions
using CairoMakie, PairPlots, Pigeons
using CSV, DataFrames

Prepare Star Info and Noise

We now query the Gaia positions etc. from DR3, the scan law from GOST, and the uncertainties from Kiefer et al (2025) / Thompeon et al (in-prep.).

Key question: do you want to simulate on the level of individual CCD measurements, or bin the data by scan? We will assume the latter, but there is code below for the per/scan option.

gaia_id = 5064625130502952704
# We will use the σ_att and σ_AL for this target's position, photometry, and colour as the
# formal uncertainty on each scan. They can be retrieved or guessed from Keifer et al 2025,
# or Thompson et al in-prep.

# look these up, or download the tables and interpolate
σ_att = 0.04
σ_AL = 0.04
σ_cal = 0.04
σ_formal = sqrt(σ_att^2 + σ_AL^2)
σ_true = sqrt(σ_att^2 + σ_AL^2 + σ_cal^2)



dr3 = Octofitter._query_gaia_dr3(;gaia_id)
# TODO: we have on average ~8 scans per epoch
gost = DataFrame(Octofitter.GOST_forecast(dr3.ra,dr3.dec;baseline=:dr4))

┌ Info: Querying gea.esac.esa.int/tap-server
└   source_id = 5064625130502952704
[ Info: Contacting the GAIA scan forecast tool GOST: https://gaia.esac.esa.int/gost/
[ Info: Retrieving forecasted GAIA scans from GOST: https://gaia.esac.esa.int/gost/
[ Info: done

If you want to simulate per CCD measurement (10x slower), run the following:

"""
    expand_scanlaw_to_scans(scanlaw_table::DataFrame, star_row::DataFrameRow,
                           avg_scans_per_window::Float64=9.0)

Expand visibility window-level scanlaw to individual CCD scans.

# Arguments
- `scanlaw_table`: DataFrame with columns `times` (OBMT) and `angles` (degrees)
- `star_row`: Row from star catalog containing stellar parameters
- `avg_scans_per_window`: Average number of CCD scans per visibility window

# Returns
- DataFrame with expanded scan-level data
"""
function expand_scanlaw_to_scans(scanlaw_table, dr3, avg_scans_per_window=9.0)
    # Calculate actual average if available
    if hasproperty(dr3, :astrometric_n_good_obs_al_dr3) &&
       hasproperty(dr3, :astrometric_matched_transits_dr3) &&
       dr3.astrometric_matched_transits_dr3 > 0
        avg_scans_per_window = dr3.astrometric_n_good_obs_al_dr3 /
                              dr3.astrometric_matched_transits_dr3
    end

    expanded_data = []

    for (i, row) in enumerate(eachrow(scanlaw_table))
        # Number of CCDs for this window (randomize around average)
        n_ccds = rand(Poisson(avg_scans_per_window))
        n_ccds = max(1, min(n_ccds, 12))  # Gaia has max 9 CCDs in practice

        # Time spread within window (typically ~40 seconds total)
        window_duration_seconds = 40.0
        dt_seconds = window_duration_seconds / max(n_ccds - 1, 1)

        # Small angle variation within window
        angle_variation = 0.1  # degrees

        for j in 1:n_ccds
            # Time offset from window center
            time_offset_days = (j - (n_ccds + 1) / 2) * dt_seconds / 86400
            obs_time_obmt = row.ObservationTimeAtBarycentre_BarycentricJulianDateInTCB_ + time_offset_days * 1461.0 / 365.25  # Convert days to OBMT

            # Small angle perturbation
            angle_perturbation = angle_variation * (j - (n_ccds + 1) / 2) / n_ccds
            scan_angle = row.scanAngle_rad_ + deg2rad(angle_perturbation)

            push!(expanded_data, (
                transit_id = i,
                ccd_id = j,
                ObservationTimeAtBarycentre_BarycentricJulianDateInTCB_ = obs_time_obmt,
                scanAngle_rad_ = scan_angle,
            ))
        end
    end

    return DataFrame(expanded_data)
end

gost_ex = expand_scanlaw_to_scans(gost, dr3)
r = size(gost_ex,1)/size(gost,1)
σ_formal /= r
σ_true /= r
gost = gost_ex

N_epochs = size(gost,1)


# σ_cal is *not* part of the Gaia formal uncertainties, it's noise above and beyond the stated uncertainties.
# For an accurate simulation, we should randomize by the true uncertainty (both sigma_formal + sigma_cal) but report to the downstream fitter that the uncertainty is just σ_formal.

df = DataFrame(
    # Epoch of measurements in MJD
    epoch = jd2mjd.(gost.ObservationTimeAtBarycentre_BarycentricJulianDateInTCB_),
    # Scan angle in degrees
    scan_pos_angle = gost.scanAngle_rad_,
    # In theory you could just populate this vector with whatever measurements you want,
    # BUT we can also leave it blank, and leverage Octofitter's built in data simulation
    # capabilities below...
    centroid_pos_al       = fill(0.0, N_epochs),
    centroid_pos_error_al = fill(σ_true, N_epochs),
    outlier_flag          = fill(false, N_epochs),
)


# The trickiest part: we have to calculate the parllax factors for each epoch
earth_pos_vel = DataFrame(Octofitter.geocentre_position_query.(df.epoch))
df = [df earth_pos_vel]
# we now have columns x, y, z of the earth in AU, and can calculate the parallax factor
# for each row

# Calculate parallax factors for each epoch

# For each epoch, calculate the parallax factor in along-scan direction
# The parallax displacement has components in RA and Dec:
# Δα* = plx * (x*sin(α) - y*cos(α))
# Δδ  = plx * (x*cos(α)*sin(δ) + y*sin(α)*sin(δ) - z*cos(δ))

# Then project onto the scan direction using the scan angle
df.parallax_factor_al = @. (
    (df.x * sind(dr3.ra) - df.y * cosd(dr3.ra)) * cos(df.scan_pos_angle) +
    (df.x * cosd(dr3.ra) * sind(dr3.dec) + df.y * sind(dr3.ra) * sind(dr3.dec) - df.z * cosd(dr3.dec)) * sin(df.scan_pos_angle)
)

# now construct the observation template
ref_epoch_mjd = Octofitter.meta_gaia_DR3.ref_epoch_mjd

gaiaIADobs = GaiaDR4AstromObs(df;
    gaia_id=gaia_id,
    variables=@variables begin
        astrometric_jitter ~ LogUniform(0.00001, 10) # mas
        ra_offset_mas  ~ Normal(0, 10000)
        dec_offset_mas ~ Normal(0, 10000)
        pmra ~ Uniform(-1000, 1000) # mas/yr
        pmdec ~  Uniform(-1000, 1000) # mas/yr
        # ra_offset_mas = -0.00154
        # dec_offset_mas = 0.0019354
        # pmra = 5.421
        # pmdec = -24.121
        plx = system.plx
        ref_epoch = $ref_epoch_mjd
    end
)

Define the Model

Now, we define a model that incorporates this data:

mjup2msol = Octofitter.mjup2msol
orbit_ref_epoch = mean(gaiaIADobs.table.epoch)

b = Planet(
    name="b",
    basis=Visual{KepOrbit},
    observations=[],
    variables=@variables begin
        a ~ LogUniform(0.01, 100)
        e ~ Uniform(0, 0.99)
        ω ~ Uniform(0,2pi)
        i ~ Sine()
        Ω ~ Uniform(0,2pi)
        θ ~ Uniform(0,2pi)
        tp = θ_at_epoch_to_tperi(θ, $orbit_ref_epoch; M=system.M, e, a, i, ω, Ω)
        mass ~ LogUniform(0.01, 1000)
    end
)
sys = System(
    name="target_1",
    companions=[b],
    observations=[gaiaIADobs,],
    variables=@variables begin
        M = 1.0
        # Note: keep these physically plausible to prevent numerical errors
        plx ~ Uniform(0.01,100) # mas
    end
)
model = Octofitter.LogDensityModel(sys, verbosity=4)

LogDensityModel for System target_1 of dimension 13 and 191 epochs with fields .ℓπcallback and .∇ℓπcallback

Simulating a Planet

Now we have defined our template model! Normally, we would just fit this... Here, we will hook into Octofitter's simulation capabilities to generate a new model for us with a simulated planet.

Generate Synthetic Data

We have three choices for generating simulated data:

1. Draw values from the priors
2. Specifying values manually

We will look at each.

1. Draw values from the priors

We can draw a value from the priors like so:

params_to_simulate = Octofitter.drawfrompriors(model.system)

(plx = 87.00753034588021, M = 1.0, observations = (GaiaDR4 = (astrometric_jitter = 5.031009489249264e-5, ra_offset_mas = 15360.641889150605, dec_offset_mas = -5183.702019777498, pmra = -436.57963101061534, pmdec = -452.7241019243147, plx = 87.00753034588021, ref_epoch = 57388.5),), planets = (b = (a = 1.3839087107456964, e = 0.9355342901400332, ω = 2.8647265140476046, i = 1.8774795292398598, Ω = 1.9491805076598607, θ = 0.6447176063338711, mass = 0.13391381938003333, tp = 57162.20395550525, observations = NamedTuple()),))

3. Specifying values manually

We can also specify all values for the simulation manually. This process is a bit more involved.

params_to_simulate = (
    plx = 16.138978209522527,
    M = 1.0,
    observations = (
        GaiaDR4 = (
            pmdec = -24.188882826919325,
            plx = 16.138978209522527,
            ra_offset_mas = 0.05413791355838311,
            pmra = 5.301074192615374,
            astrometric_jitter = 0.015590772157762368,
            ref_epoch = 57936.375,
            dec_offset_mas = 0.0889816167388366
        ),
    ),
    planets = (
        b = (
            a = 2.0,
            Ω = 0.6,
            e = 0.01,
            ω = 0.01,
            tp = 51710.01947449644,
            mass = 10.0,
            i = 0.01,
            θ = 3.5226970272017826
        ),
    )
)

(plx = 16.138978209522527, M = 1.0, observations = (GaiaDR4 = (pmdec = -24.188882826919325, plx = 16.138978209522527, ra_offset_mas = 0.05413791355838311, pmra = 5.301074192615374, astrometric_jitter = 0.015590772157762368, ref_epoch = 57936.375, dec_offset_mas = 0.0889816167388366),), planets = (b = (a = 2.0, Ω = 0.6, e = 0.01, ω = 0.01, tp = 51710.01947449644, mass = 10.0, i = 0.01, θ = 3.5226970272017826),))

Generate synthetic system with simulated data

We will call Octofitter.generate_from_params to generate a model with new synthetic observations. If you set add_noise = true, the generated data points will have scatter according to the centroid_pos_error_al specified above.

sim_system = Octofitter.generate_from_params(model.system, params_to_simulate; add_noise=true)
sim_model = Octofitter.LogDensityModel(sim_system)

LogDensityModel for System target_1 of dimension 13 and 191 epochs with fields .ℓπcallback and .∇ℓπcallback

Fit simulated data

Follow the usual flow documented elsewhere.

Find starting point for MCMC (via variational approximation)

init_chain = initialize!(sim_model)

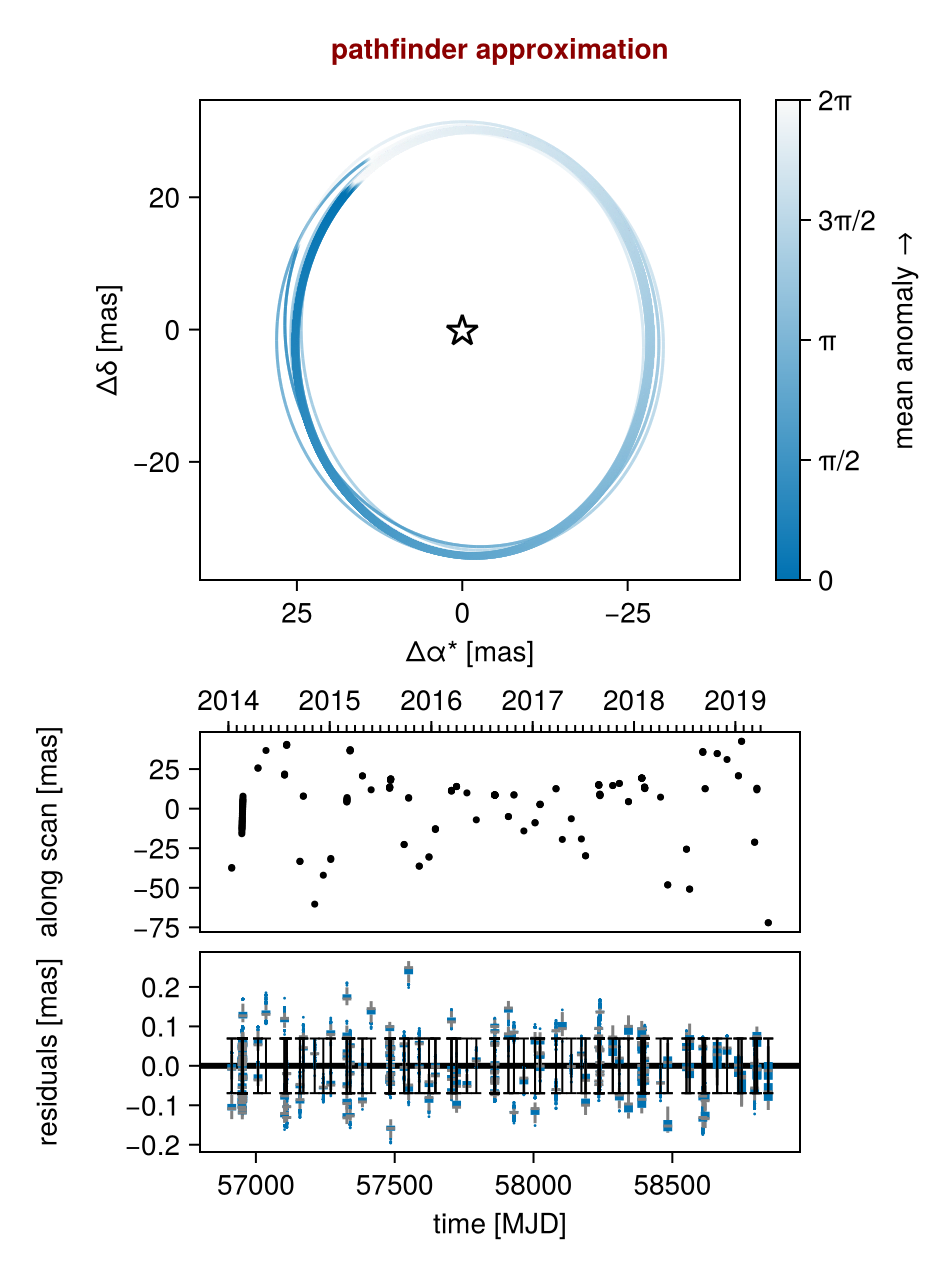

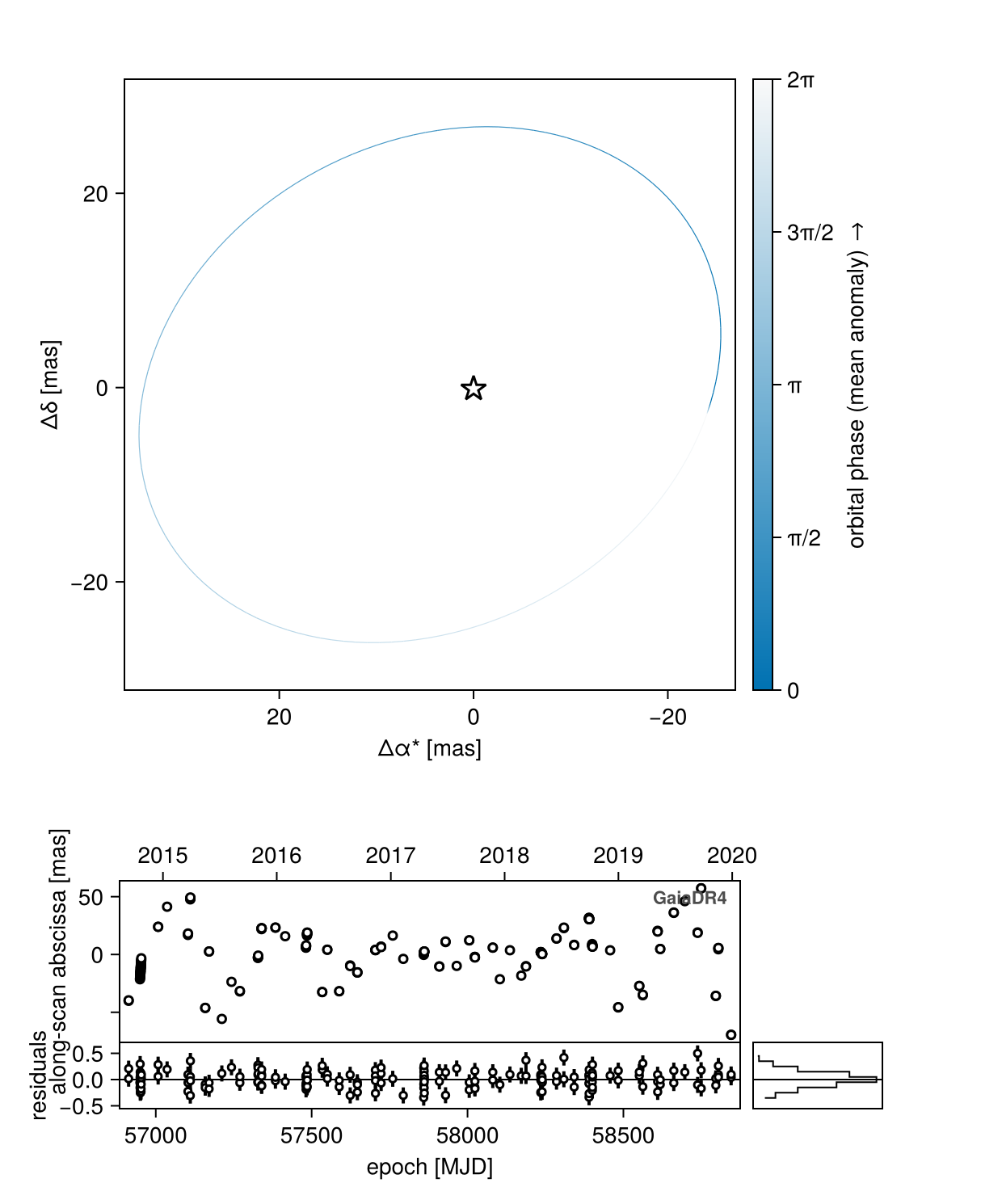

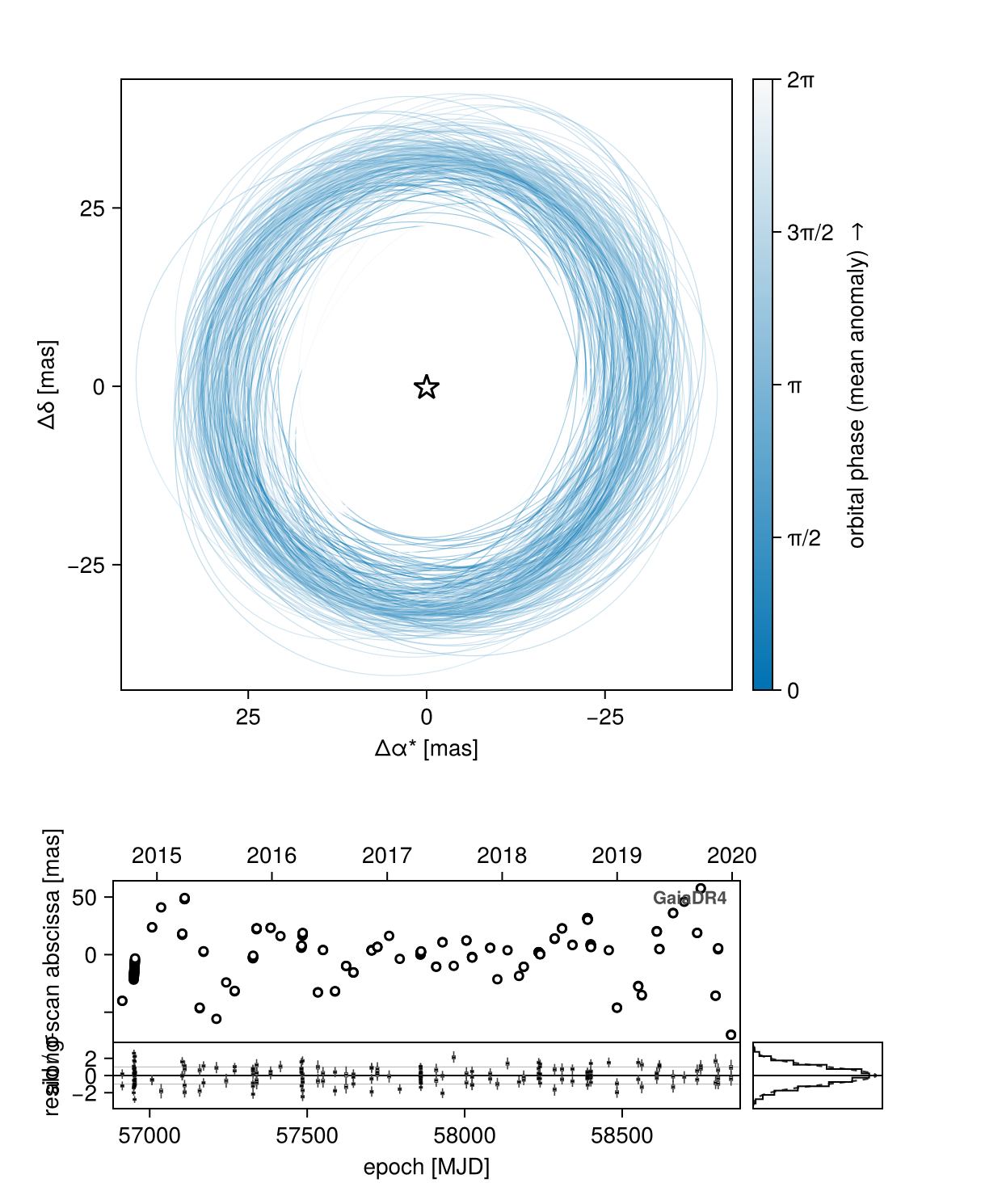

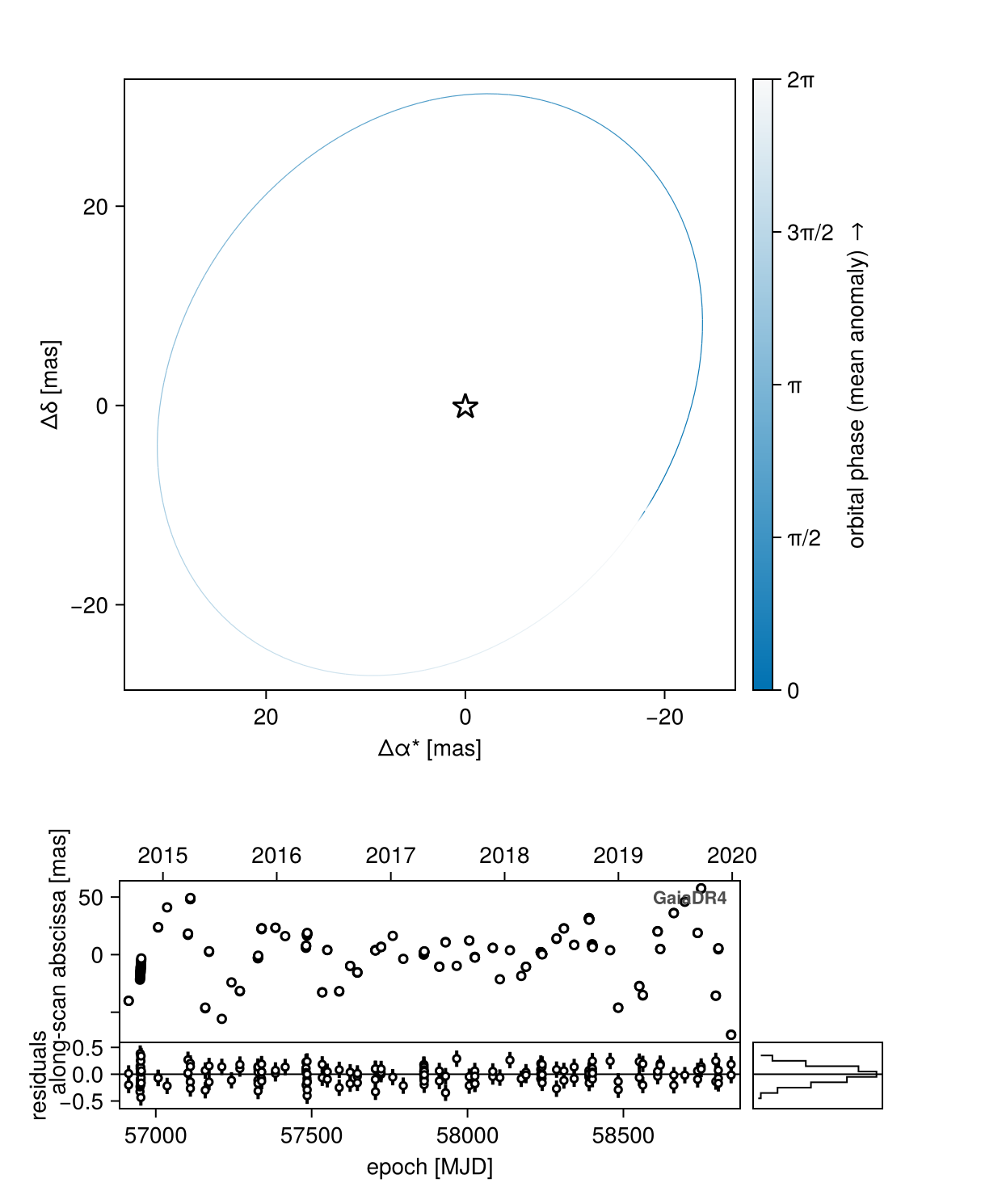

octoplot(sim_model, init_chain)

Fit:

using Pigeons
chain, pt = octofit_pigeons(sim_model, n_rounds=9)

(chain = MCMC chain (512×21×1 Array{Float64, 3}), pt = PT(checkpoint = false, ...))

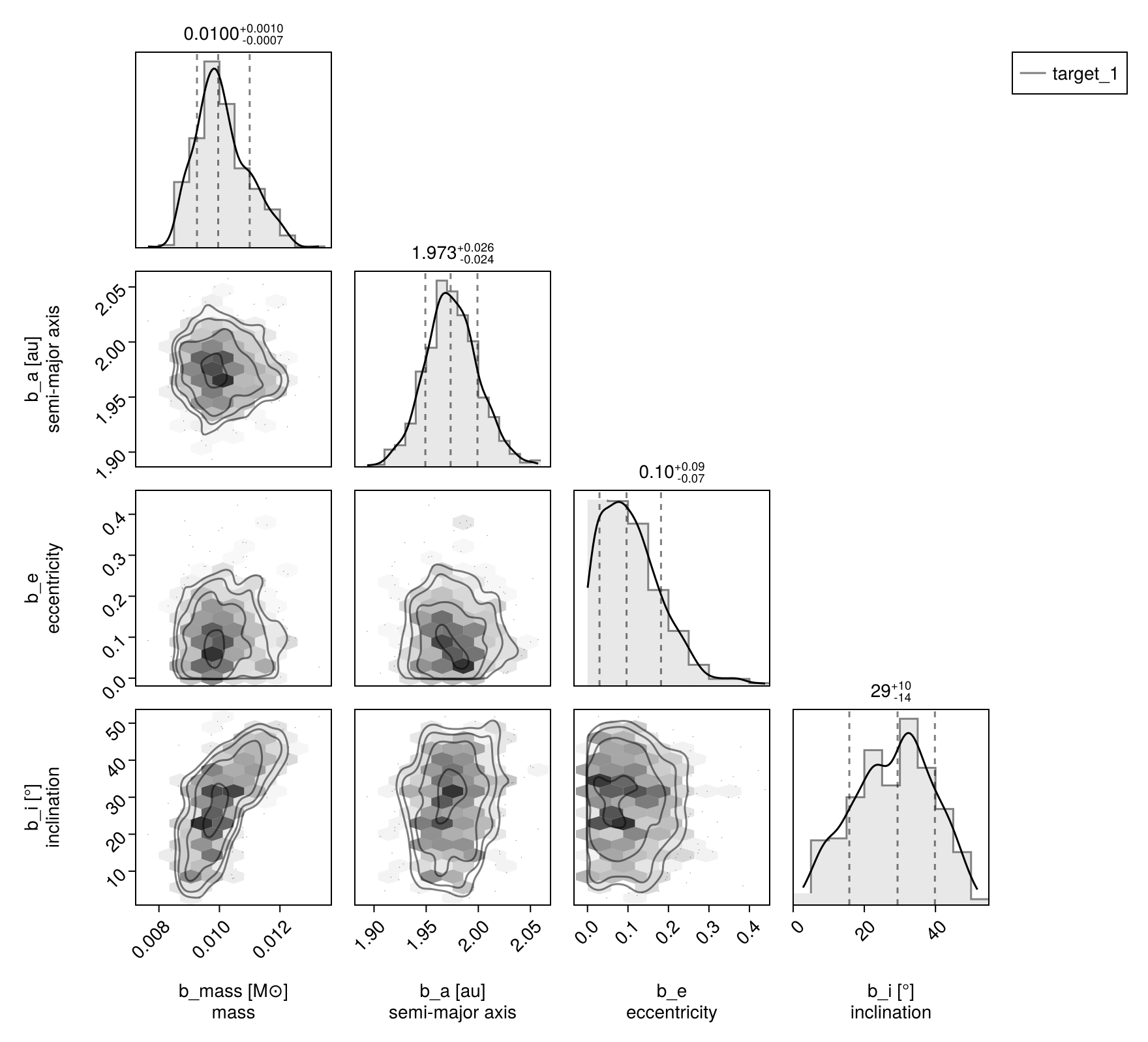

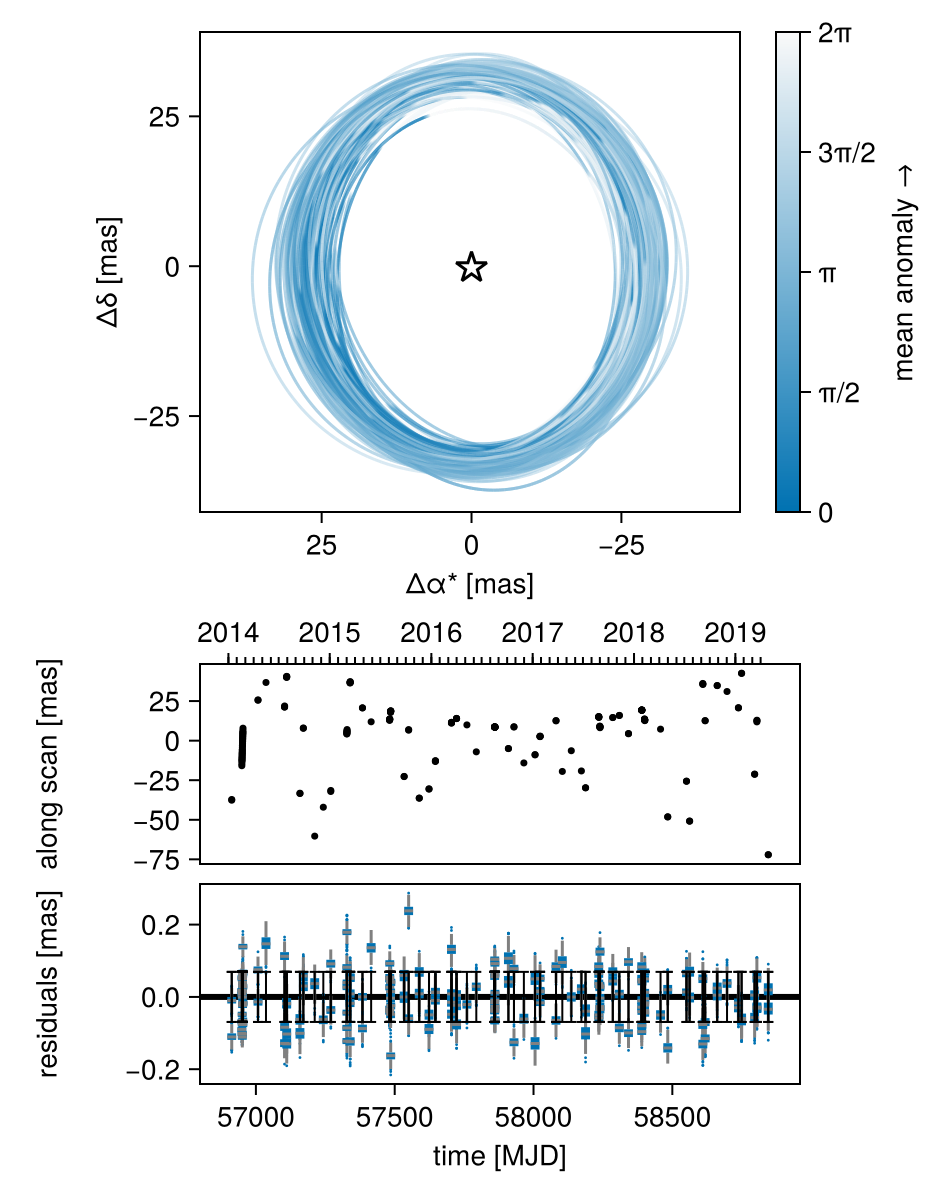

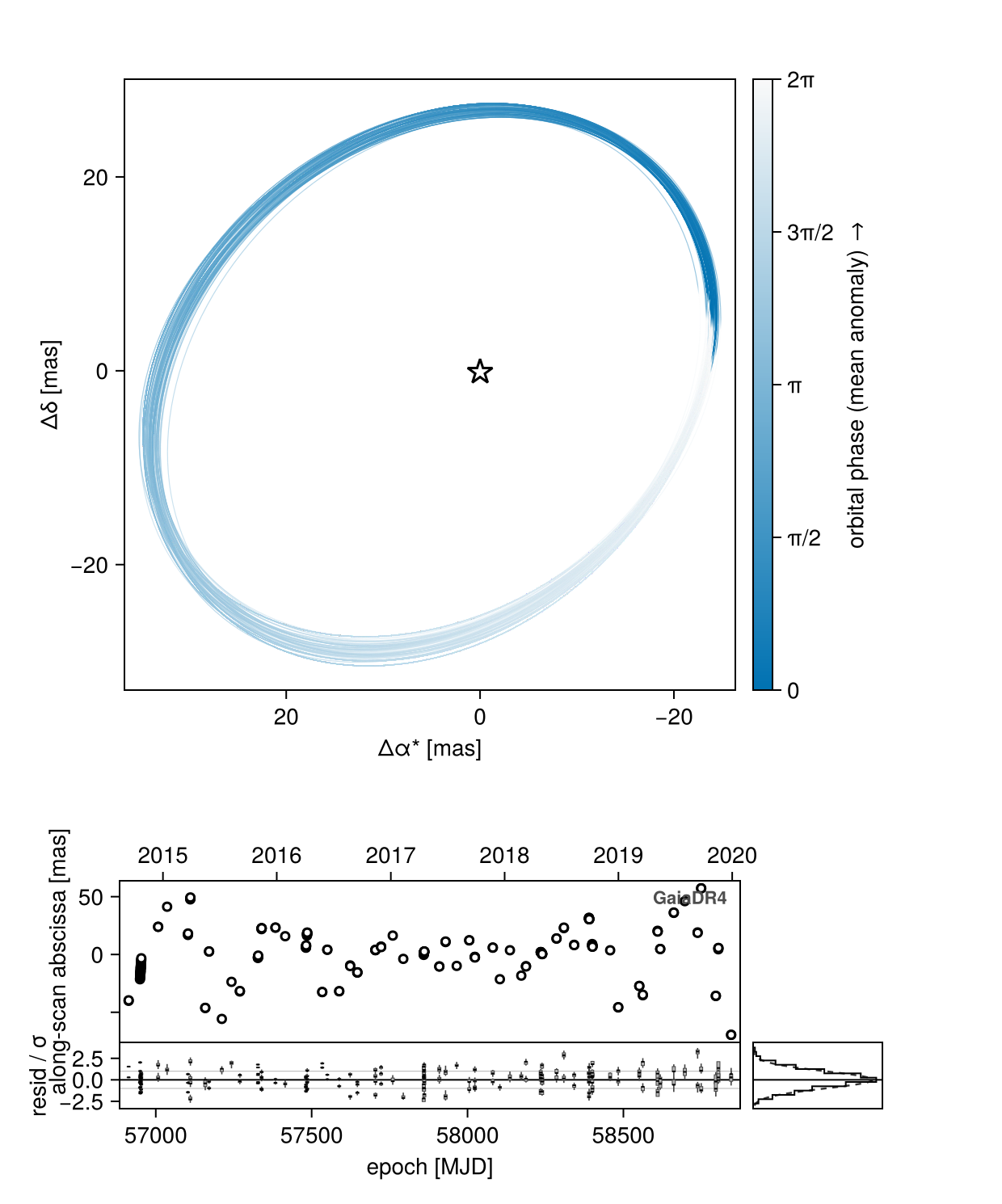

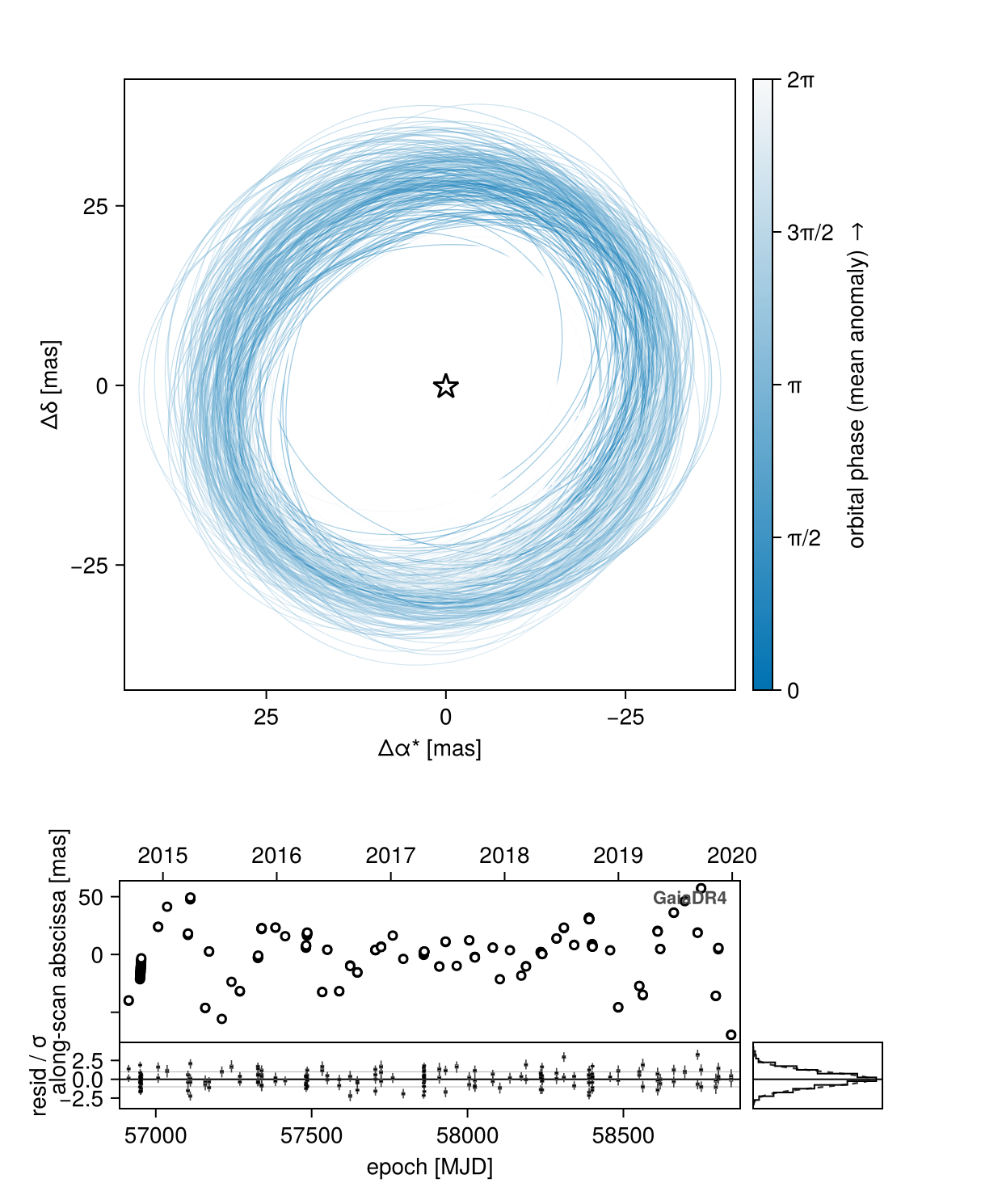

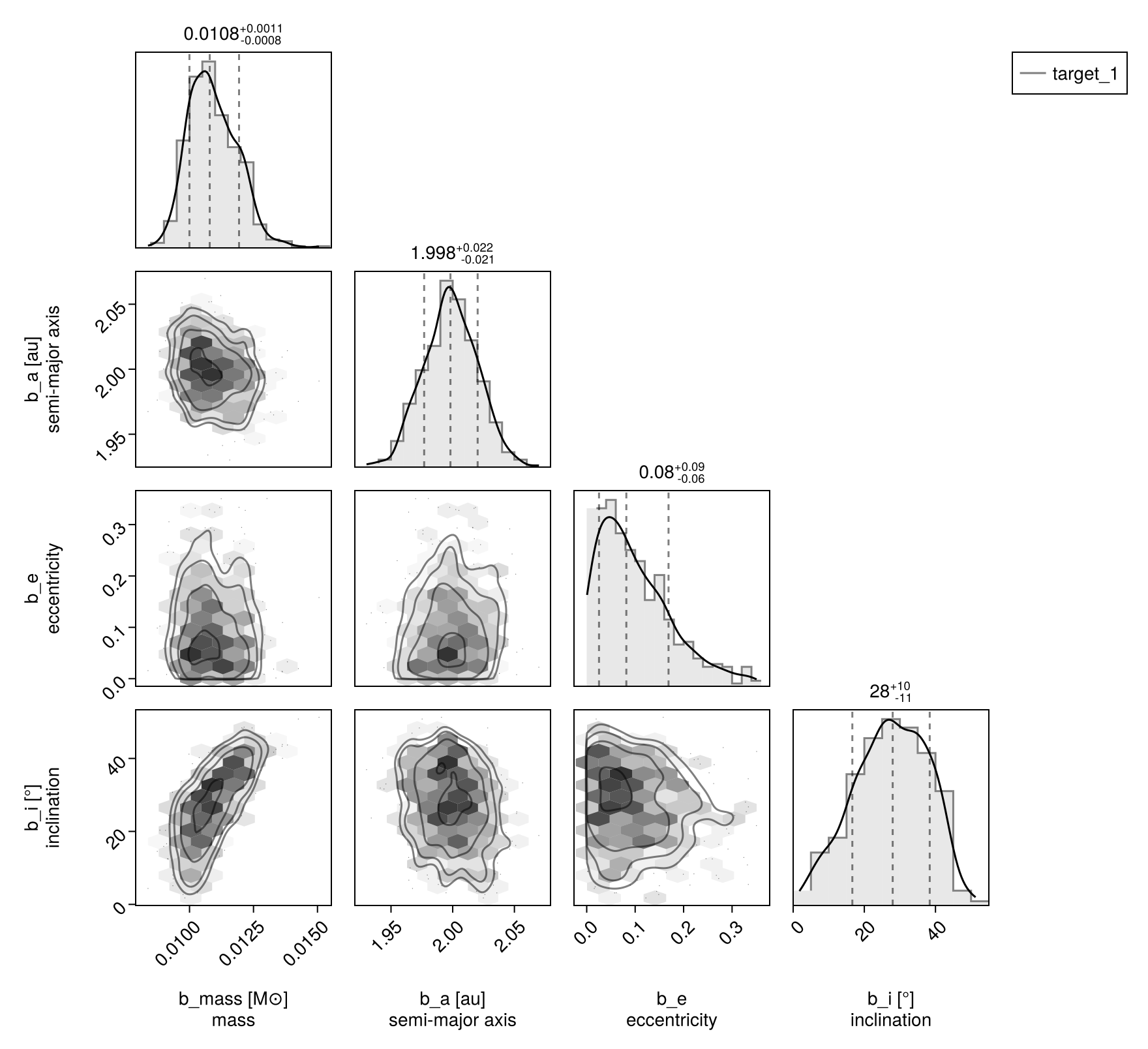

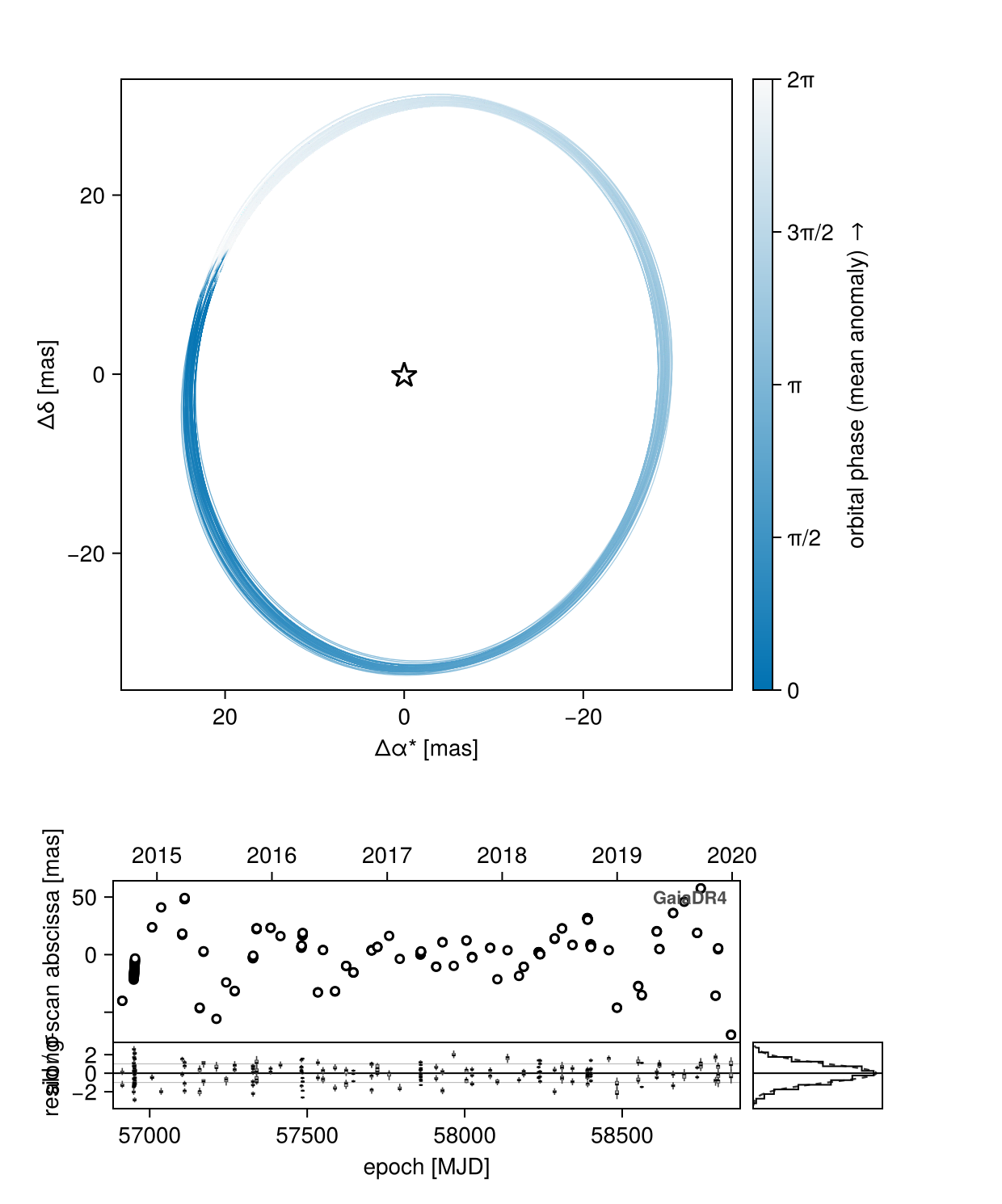

octoplot(sim_model, chain)

# Picks MAP sample

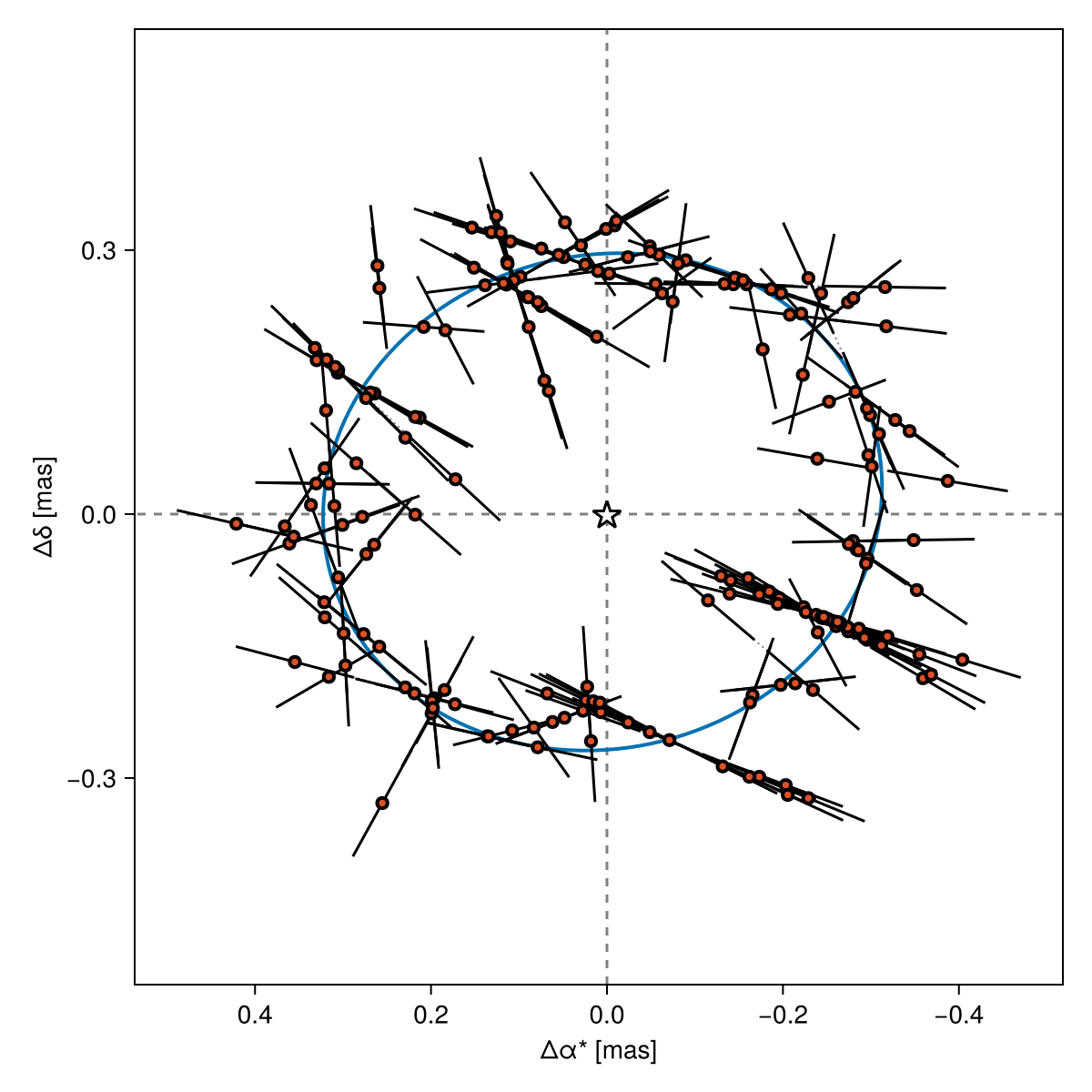

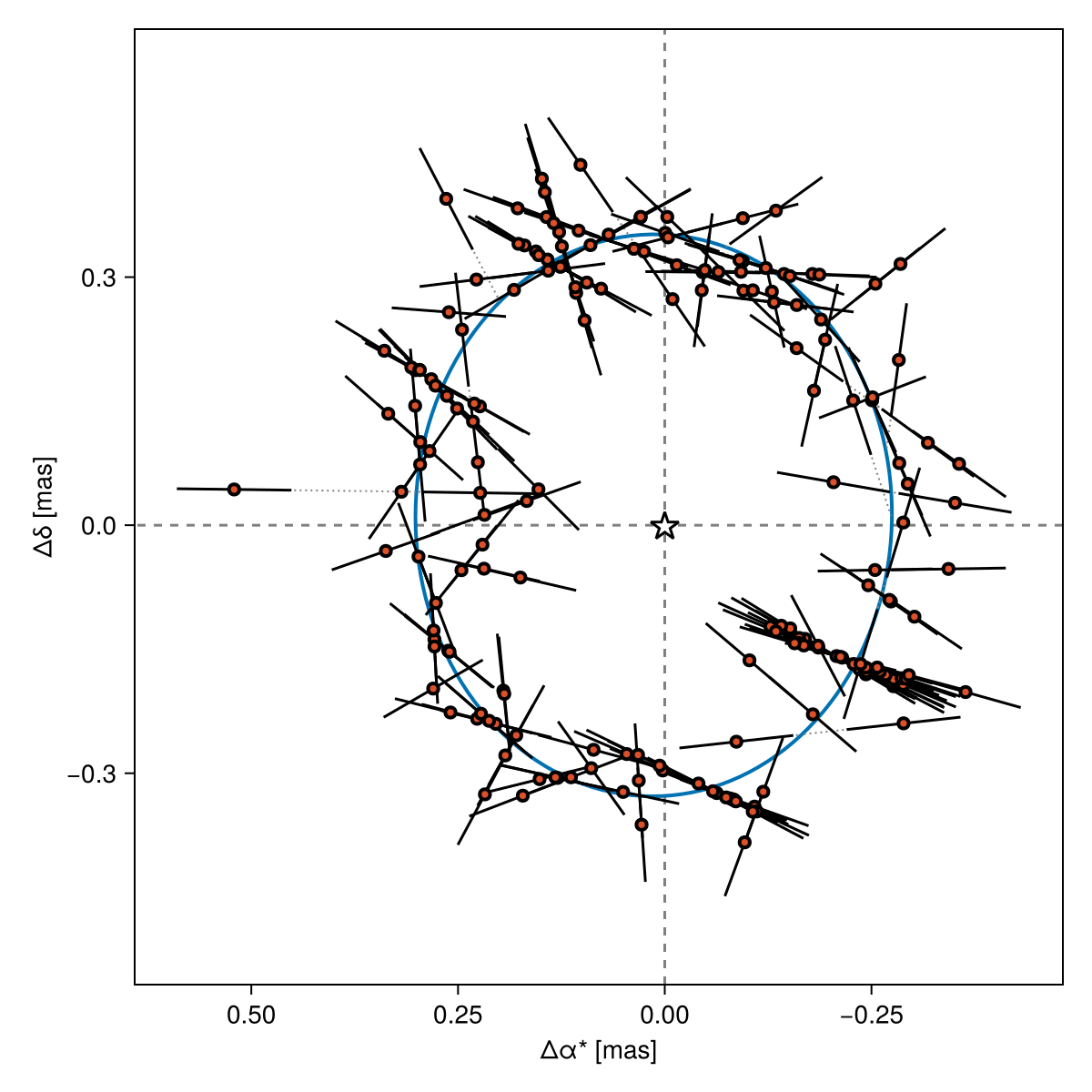

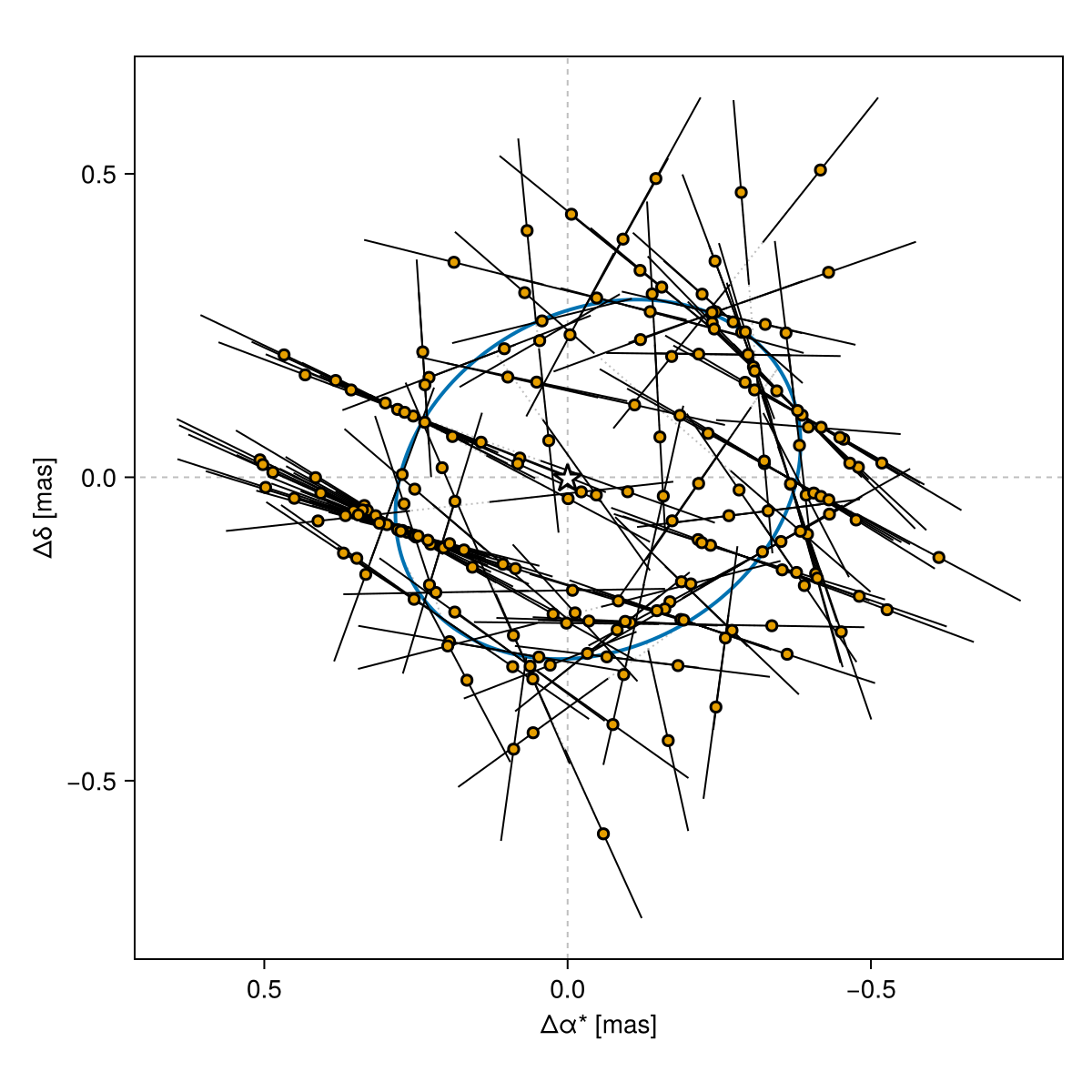

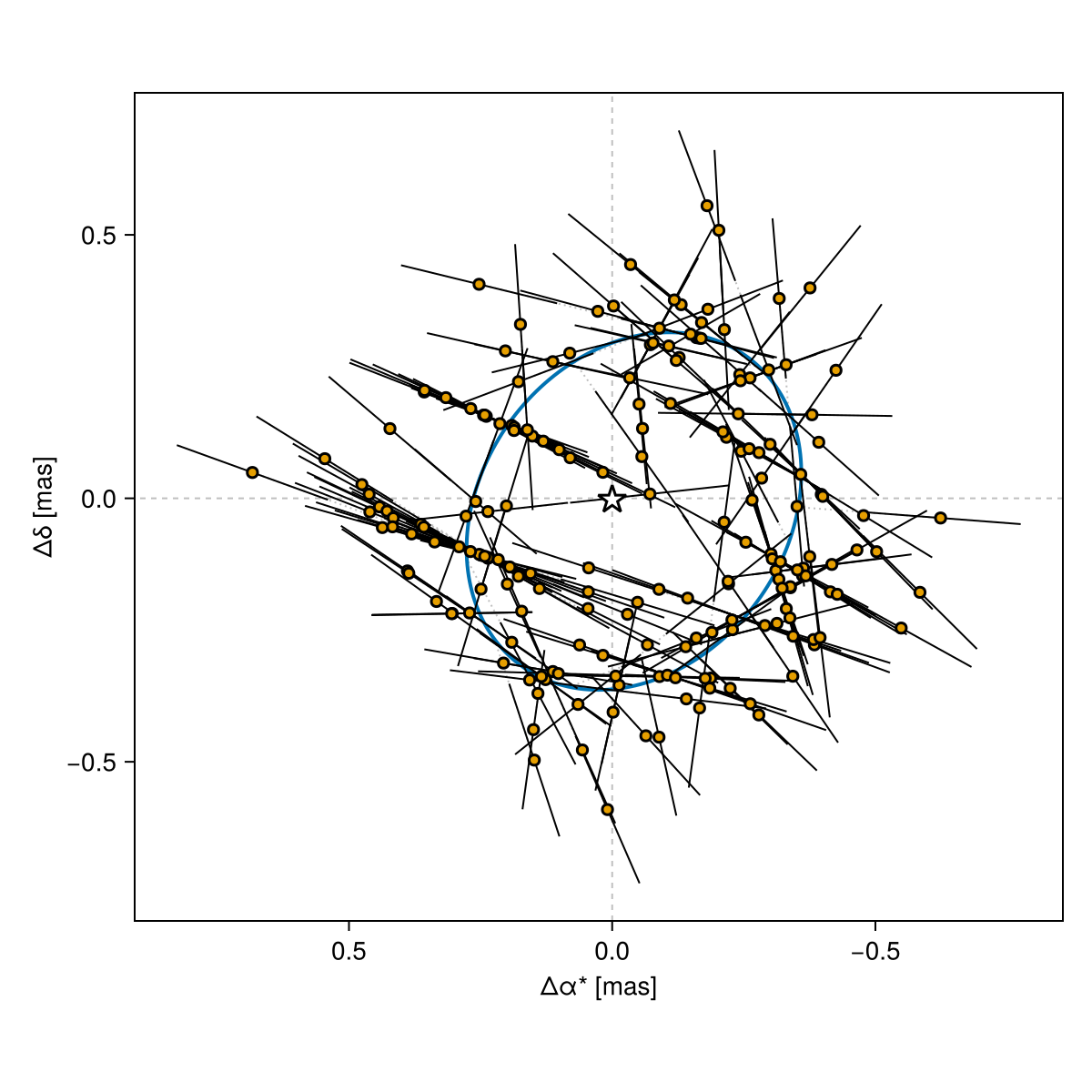

Octofitter.gaiastarplot(sim_model, chain,)

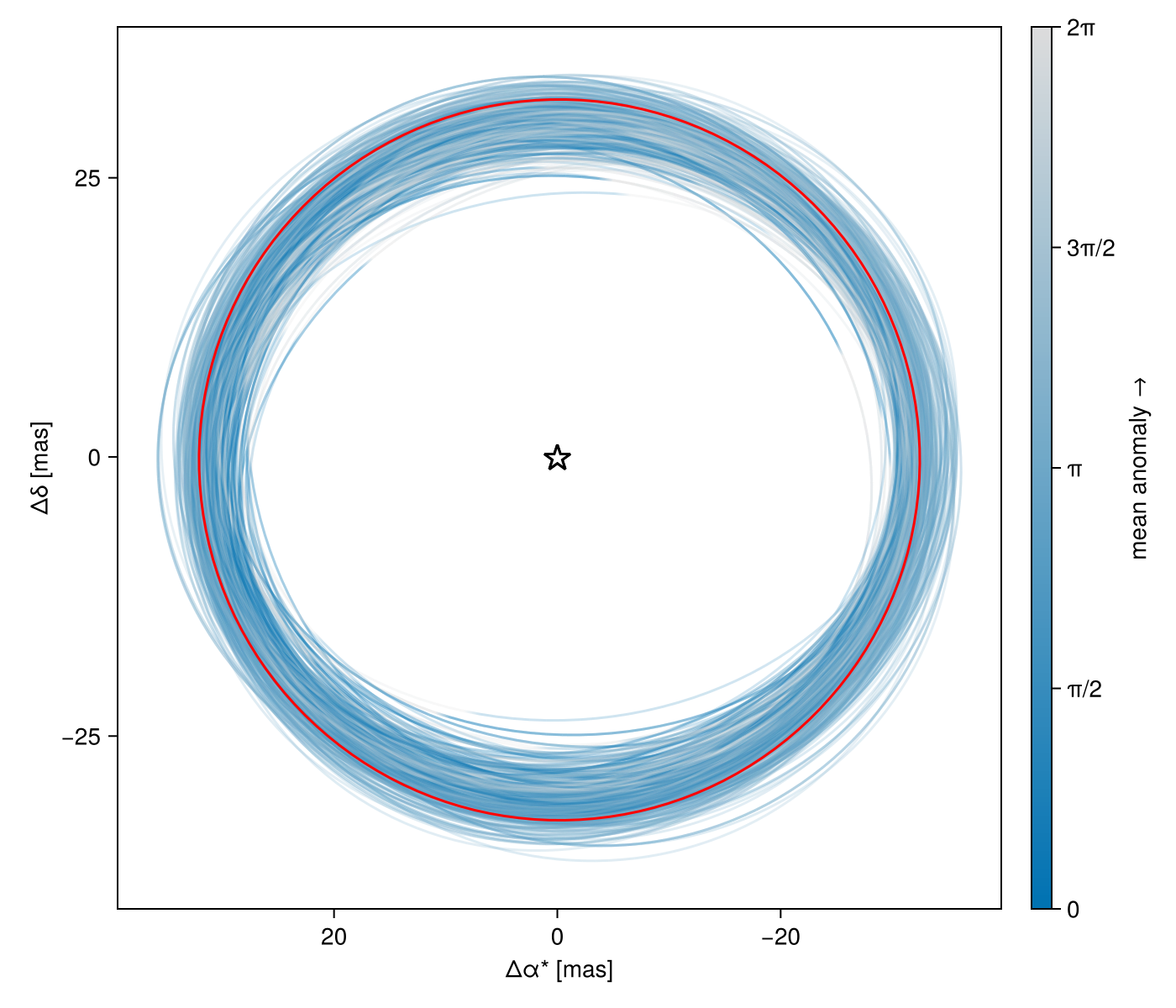

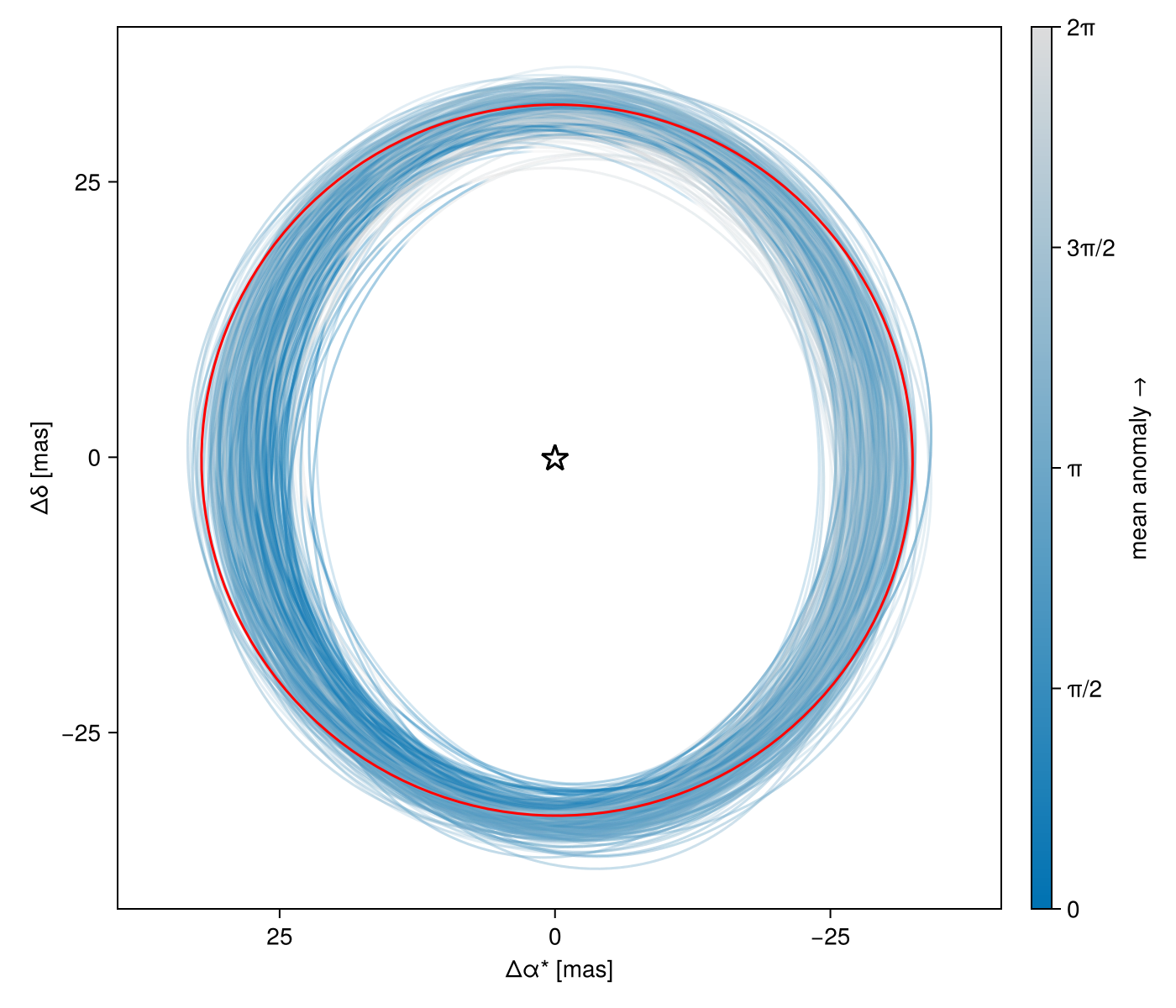

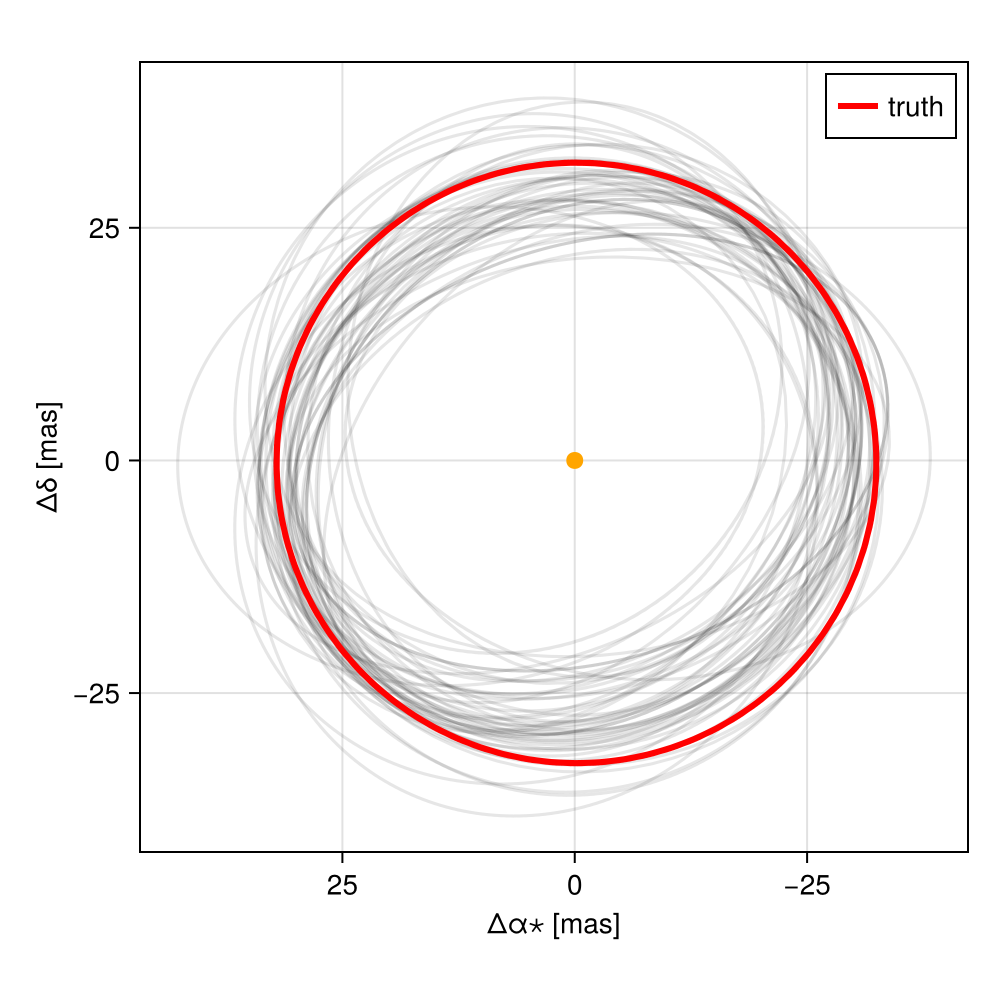

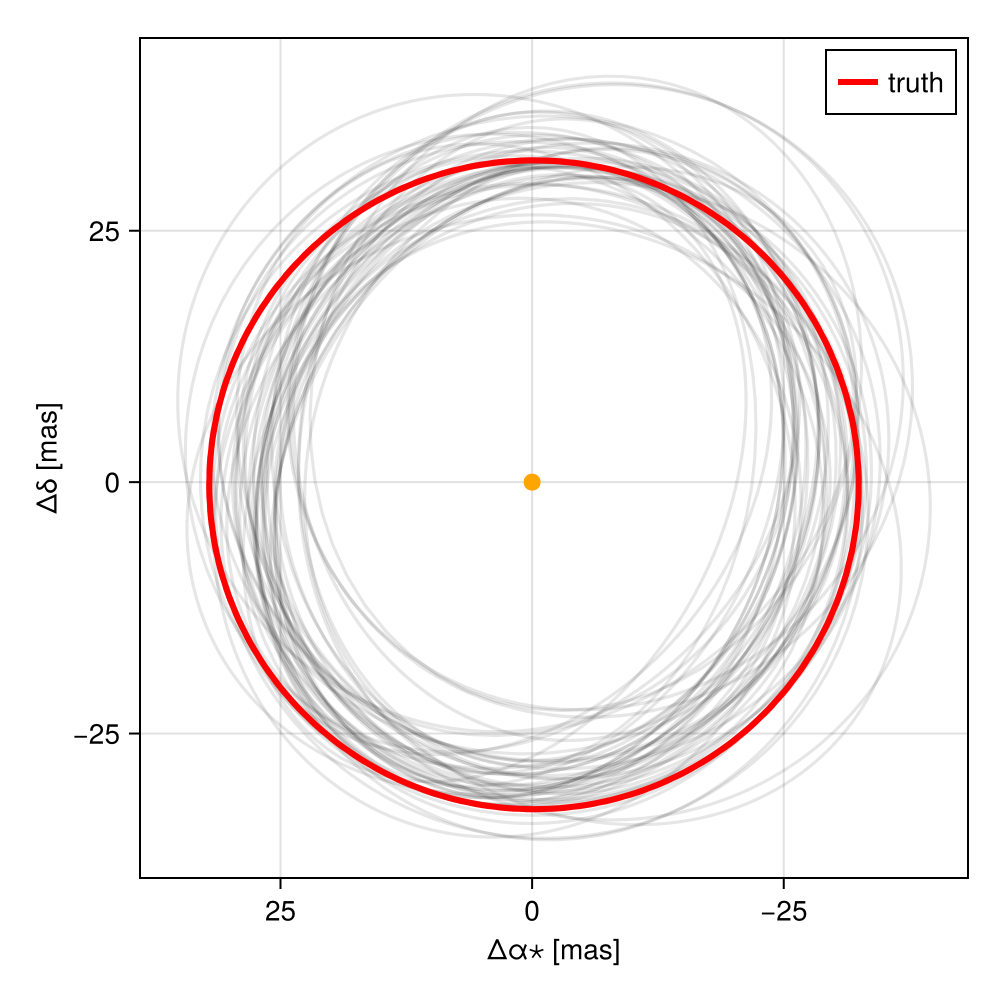

# Create astrometry plot showing both posterior and true orbit
fig = Octofitter.astromplot(sim_model, chain, use_arcsec=false, ts=1:2)
ax = fig.content[1]

# Add true orbit in red
true_chain = Octofitter.result2mcmcchain([params_to_simulate])
Octofitter.astromplot!(ax, sim_model, true_chain, use_arcsec=false, ts=1:2, colormap=Makie.cgrad([:red]))

# Make true orbit line more visible
# ax.scene.plots[5].linewidth = 6

fig
