Marginalizing over Circular or Eccentric Hypotheses

This tutorial demonstrates how to simultaneously model both circular and eccentric orbit possibilities in a single fit, allowing you to rigorously evaluate whether eccentricity is necessary to explain your data.

Motivation

When fitting orbits, a common question arises: Is the orbit circular, or is eccentricity required by the data?

A naive approach might be to simply fit with a prior like e ~ Uniform(0, 0.99) and check if the posterior excludes zero. However, this approach has a subtle problem: it doesn't properly account for the different model complexities. An eccentric orbit has more free parameters (eccentricity e and argument of periastron ω) compared to a circular orbit where these parameters are undefined or fixed.

A more rigorous approach is to marginalize over both hypotheses simultaneously using a discrete indicator variable. This allows us to:

1. Let the data determine which hypothesis is preferred
2. Calculate a Bayes factor comparing the two models
3. Avoid artificially penalizing the circular model by forcing it to explore unnecessary parameter space

The Spike-and-Slab Prior

The technique we'll use is called a spike-and-slab prior. The idea is simple but powerful:

• The "spike" represents the circular orbit hypothesis (e = 0)
• The "slab" represents the eccentric orbit hypothesis (e > 0)
• We use a discrete indicator variable to switch between them

Mathematically, we can write:

eccentric ~ Bernoulli(0.5)        # 50% prior probability for each hypothesis
e′ ~ Uniform(0.0, 0.99)           # If eccentric, what is e?
e = eccentric × e′                 # Spike at zero when eccentric=0, slab when eccentric=1

When eccentric = 0, we get e = 0 (the spike). When eccentric = 1, we get e = e′ (the slab, uniformly distributed).

This prior structure naturally encodes both hypotheses and allows the posterior probability P(eccentric = 1 | data) to tell us which model the data prefer.

Why This Differs from Just Using a Uniform Prior

You might wonder: why not just use e ~ Uniform(0, 0.99) and see if the posterior includes zero?

The key difference is in model comparison. With a simple uniform prior:

• You're always fitting an eccentric model, even when e ≈ 0
• The parameter ω is being fit even when it's physically meaningless (for circular orbits)
• You can't as easily calculate a Bayes factor between circular and eccentric hypotheses

With the spike-and-slab approach:

• When eccentric = 0, the model actually becomes circular with fewer degrees of freedom
• The posterior mean of the eccentric parameter directly gives you the probability of the eccentric hypothesis
• You can calculate a proper Bayes factor to quantify the evidence

Setting Up the Model

Let's start by loading the necessary packages:

using Octofitter, Distributions
using CairoMakie, PairPlots

We'll use the same synthetic astrometry data from the basic tutorial:

astrom_dat = Table(;
    epoch = [50000, 50120, 50240, 50360, 50480, 50600, 50720, 50840,], # MJD (days)
    ra    = [-505.764, -502.57, -498.209, -492.678, -485.977, -478.11, -469.08, -458.896,], # mas
    dec   = [-66.9298, -37.4722, -7.92755, 21.6356, 51.1472, 80.5359, 109.729, 138.651,], # mas
    σ_ra  = [10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0,], # mas
    σ_dec = [10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0, 10.0,], # mas
    cor   = [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0,]
)
astrom_like = PlanetRelAstromLikelihood(astrom_dat, name="relastrom")

PlanetRelAstromLikelihood Table with 6 columns and 8 rows:
     epoch  ra        dec       σ_ra  σ_dec  cor
   ┌────────────────────────────────────────────
 1 │ 50000  -505.764  -66.9298  10.0  10.0   0.0
 2 │ 50120  -502.57   -37.4722  10.0  10.0   0.0
 3 │ 50240  -498.209  -7.92755  10.0  10.0   0.0
 4 │ 50360  -492.678  21.6356   10.0  10.0   0.0
 5 │ 50480  -485.977  51.1472   10.0  10.0   0.0
 6 │ 50600  -478.11   80.5359   10.0  10.0   0.0
 7 │ 50720  -469.08   109.729   10.0  10.0   0.0
 8 │ 50840  -458.896  138.651   10.0  10.0   0.0

Now we define our planet model with the spike-and-slab prior on eccentricity:

planet_b = Planet(
    name="b",
    basis=Visual{KepOrbit},
    likelihoods=[astrom_like],
    variables=@variables begin
        M = system.M
        plx = system.plx
        a ~ Uniform(0, 100)

        # Spike-and-slab prior for eccentricity
        eccentric ~ Bernoulli(0.5)      # 50% prior odds for eccentric vs circular
        e′ ~ Uniform(0.0, 0.99)         # If eccentric, what eccentricity?
        e = eccentric * e′              # Spike at 0 when eccentric=0, slab when eccentric=1


        # ω is also multiplied by eccentric because it's undefined for circular orbits
        ω′ ~ UniformCircular()
        ω = eccentric * ω′              # When e=0, ω has no physical meaning

        i ~ Sine()
        Ω ~ UniformCircular()
        θ ~ UniformCircular()
        tp = θ_at_epoch_to_tperi(θ, 50420; M, e, a, i, ω, Ω)
    end
)

Now we complete the system definition:

sys = System(
    name="CircularOrEccentric",
    companions=[planet_b],
    likelihoods=[],
    variables=@variables begin
        M ~ truncated(Normal(1.2, 0.1), lower=0.1)
        plx ~ truncated(Normal(50.0, 0.02), lower=0.1)
    end
)

model = Octofitter.LogDensityModel(sys)

LogDensityModel for System CircularOrEccentric of dimension 12 and 11 epochs with fields .ℓπcallback and .∇ℓπcallback

Sampling with Pigeons

using Pkg
Pkg.add("Pigeons")

Let's sample from our model using Pigeons:

using Pigeons
chain, pt = octofit_pigeons(model, n_rounds=10)

(chain = MCMC chain (1024×24×1 Array{Float64, 3}), pt = PT(checkpoint = false, ...))

The Pigeons sampler with the default SliceSampler can explore both discrete and continuous parameter spaces. It automatically handles the switching between circular and eccentric hypotheses.

Interpreting the Results

Let's look at the posterior distribution of our indicator variable:

using Statistics
mean_eccentric = mean(chain[:b_eccentric][:])
println("Posterior probability of eccentric orbit: ", round(mean_eccentric, digits=3))

Posterior probability of eccentric orbit: 0.292

The mean of the eccentric indicator variable directly gives us the posterior probability that the orbit is eccentric (given the data and our priors).

Calculating the Bayes Factor

One of the most powerful aspects of this approach is that we can calculate a Bayes factor comparing the two hypotheses. The Bayes factor is defined as:

\[\text{BF} = \frac{P(\text{data} | \text{eccentric model})}{P(\text{data} | \text{circular model})}\]

It turns out that for a spike-and-slab model with equal prior odds (Bernoulli(0.5)), the Bayes factor can be calculated directly from the posterior mean of the indicator variable:

\[\text{BF} = \frac{\bar{I}}{1 - \bar{I}}\]

where $\bar{I}$ is the posterior mean of the eccentric indicator.

Let's calculate it:

bayes_factor = mean_eccentric / (1 - mean_eccentric)
println("Bayes factor (eccentric vs circular): ", round(bayes_factor, digits=2))
println("Bayes factor (circular vs eccentric): ", round(1/bayes_factor, digits=2))

Bayes factor (eccentric vs circular): 0.41
Bayes factor (circular vs eccentric): 2.42

Interpreting Bayes Factors:

• BF > 10: Strong evidence for eccentric orbit
• BF = 3-10: Moderate evidence for eccentric orbit
• BF = 1/3-3: Data are ambiguous
• BF < 1/10: Strong evidence for circular orbit

In this case, you can interpret the Bayes factor to determine whether eccentricity is justified by your data.

Visualizing Results

All Samples

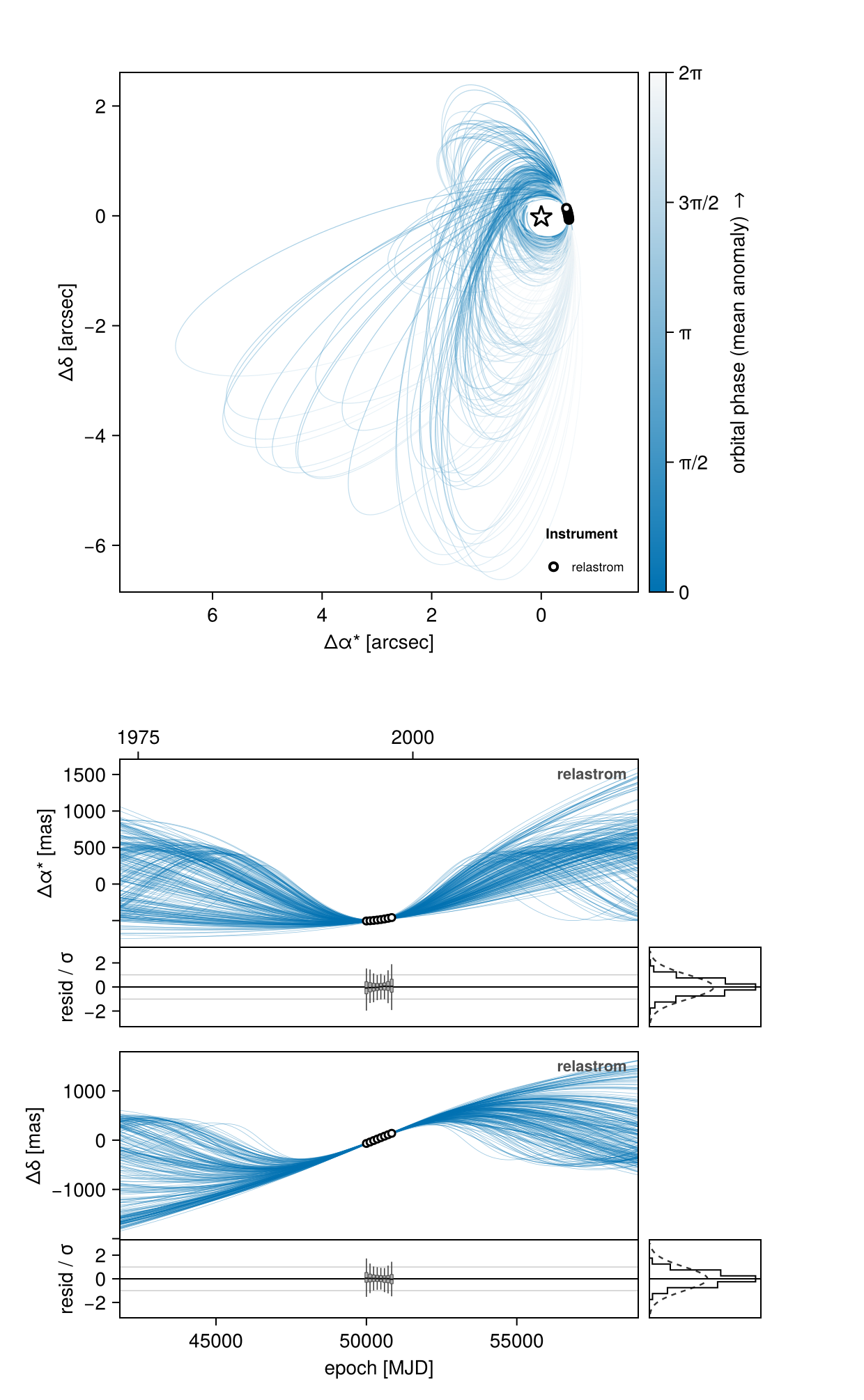

Let's first plot all posterior samples together:

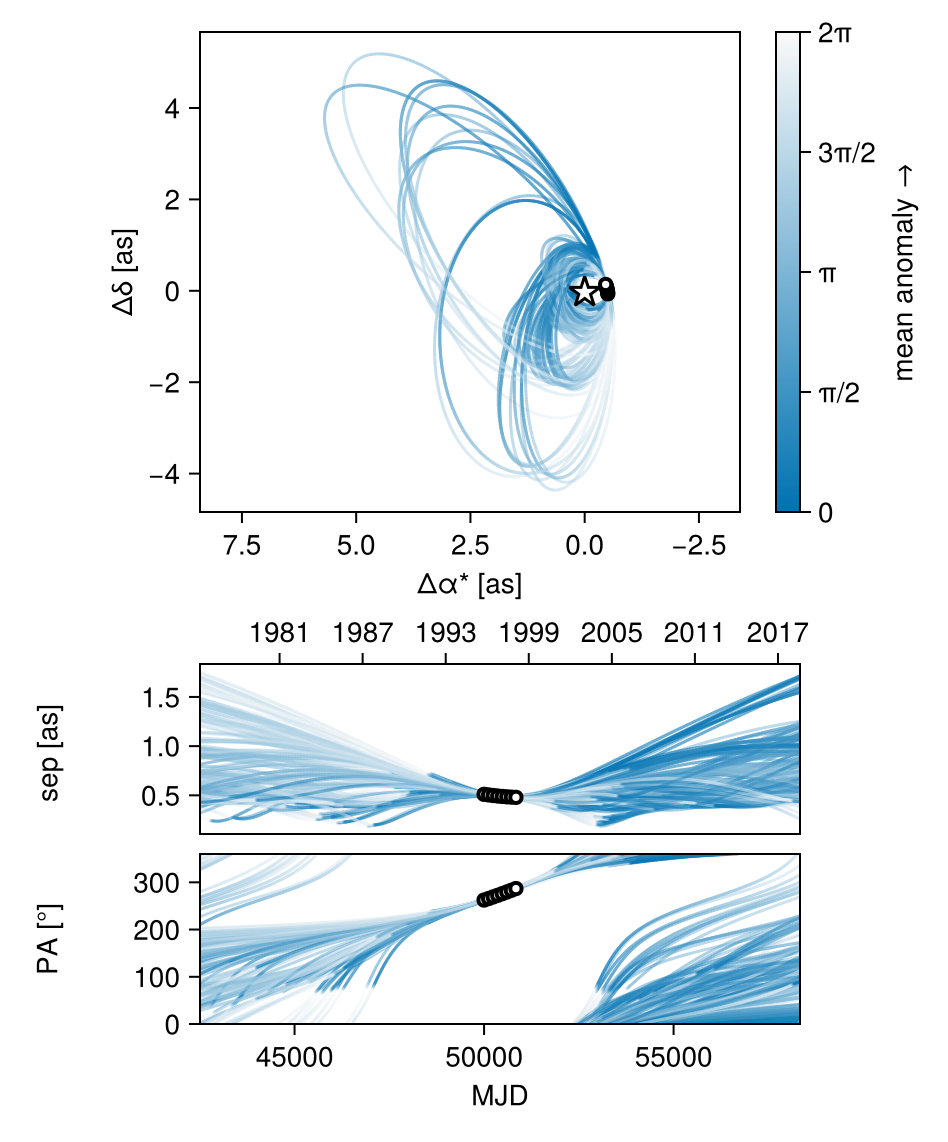

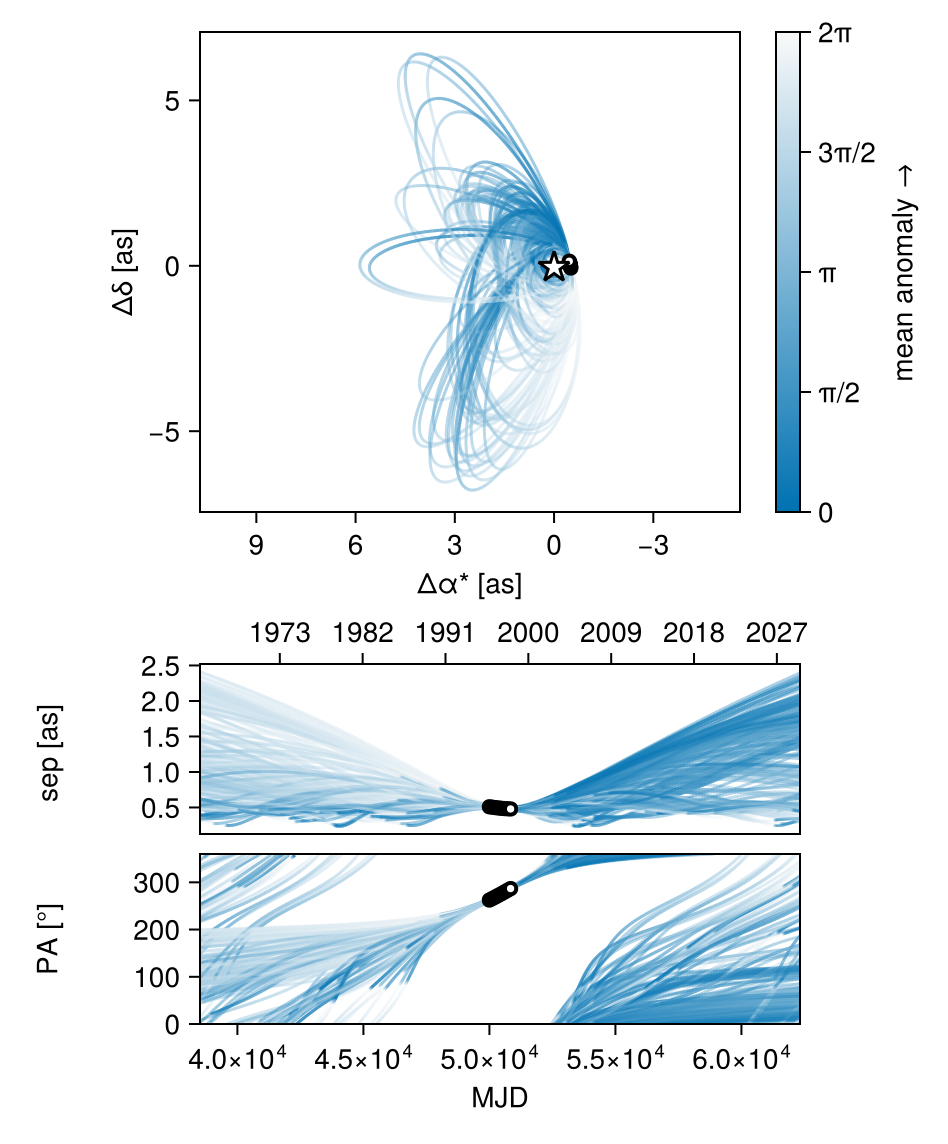

octoplot(model, chain)

This plot includes both circular (when eccentric = 0) and eccentric (when eccentric = 1) samples, which is why you might see orbits with a range of eccentricities.

Eccentric Samples Only

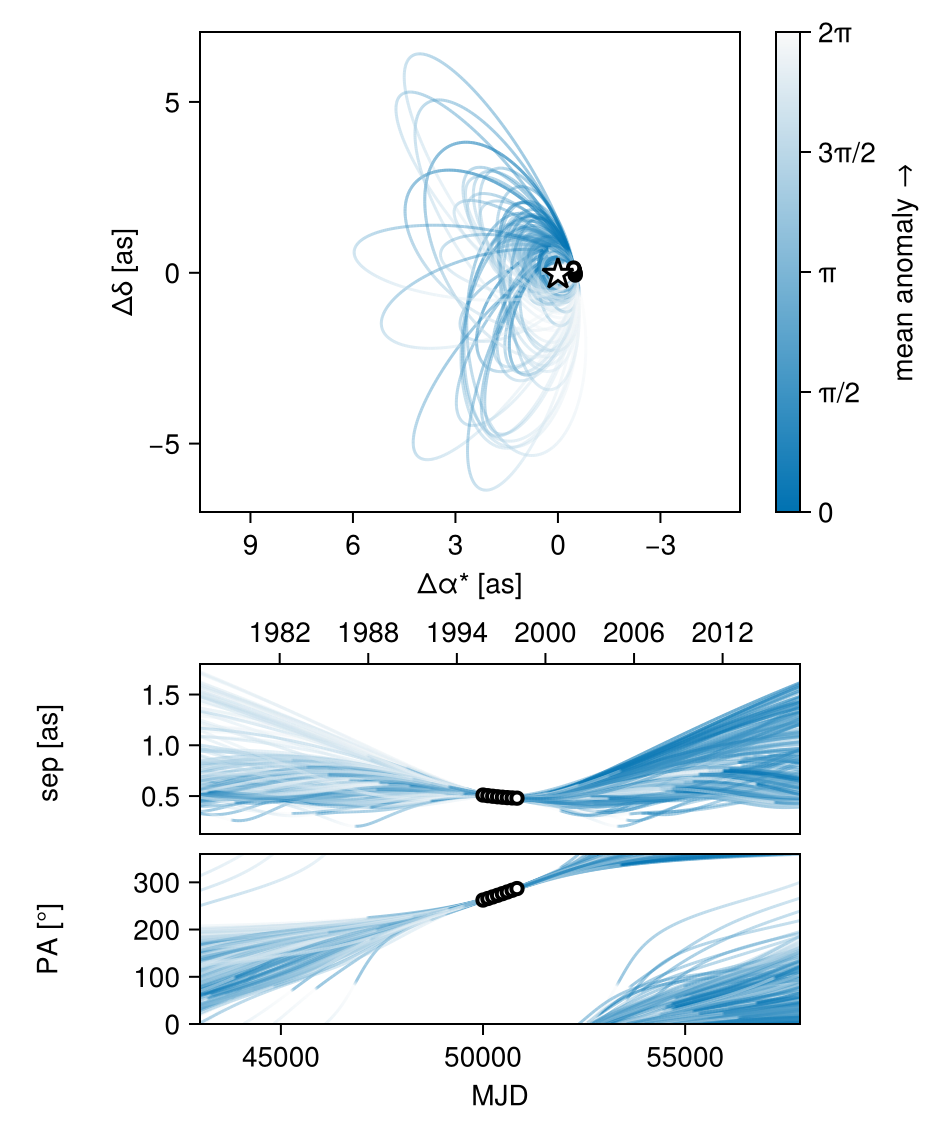

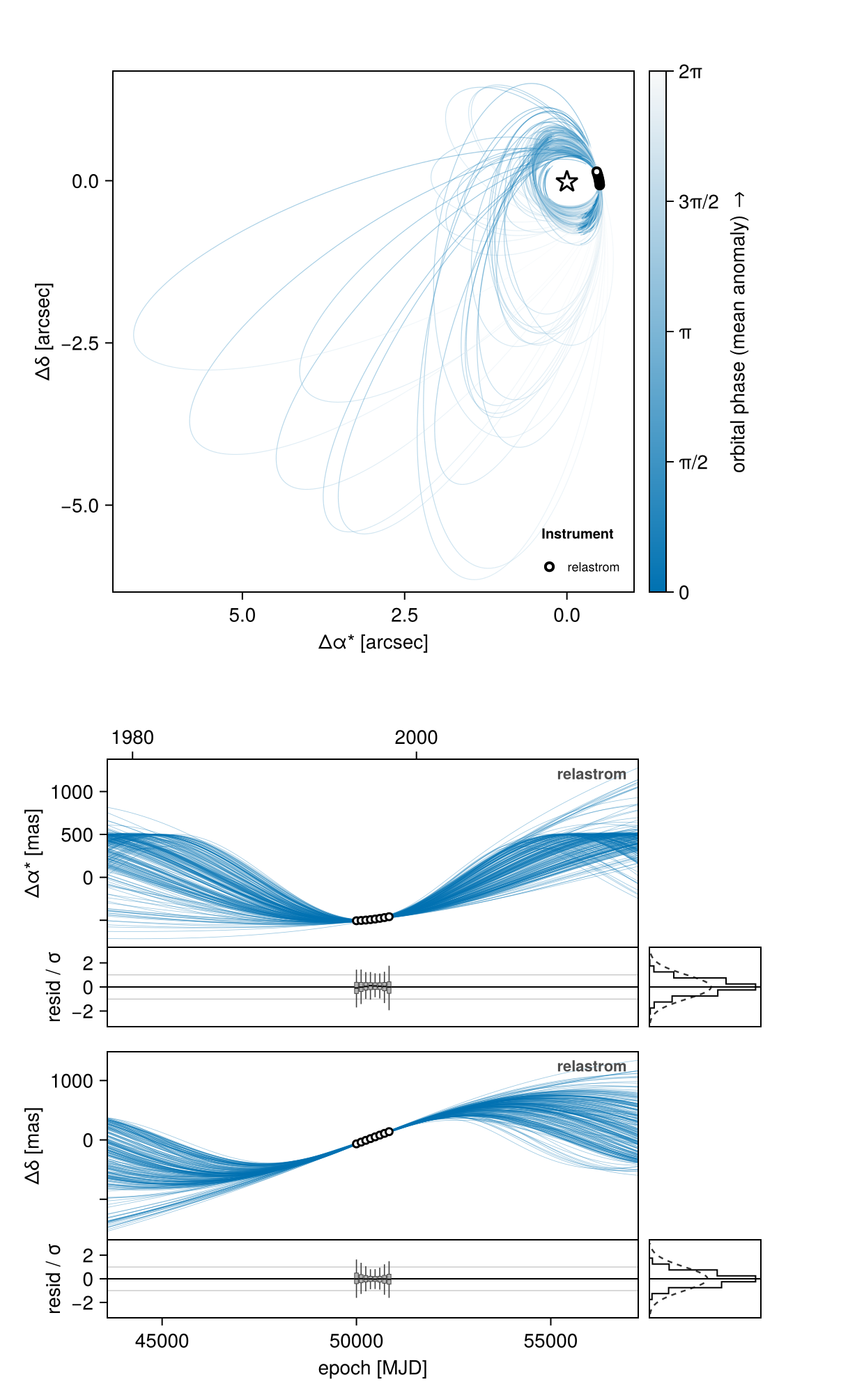

We can subset the chain to show only the eccentric orbit samples:

chain_eccentric = chain[chain[:b_eccentric][:] .> 0]
println("Number of eccentric samples: ", length(chain_eccentric))

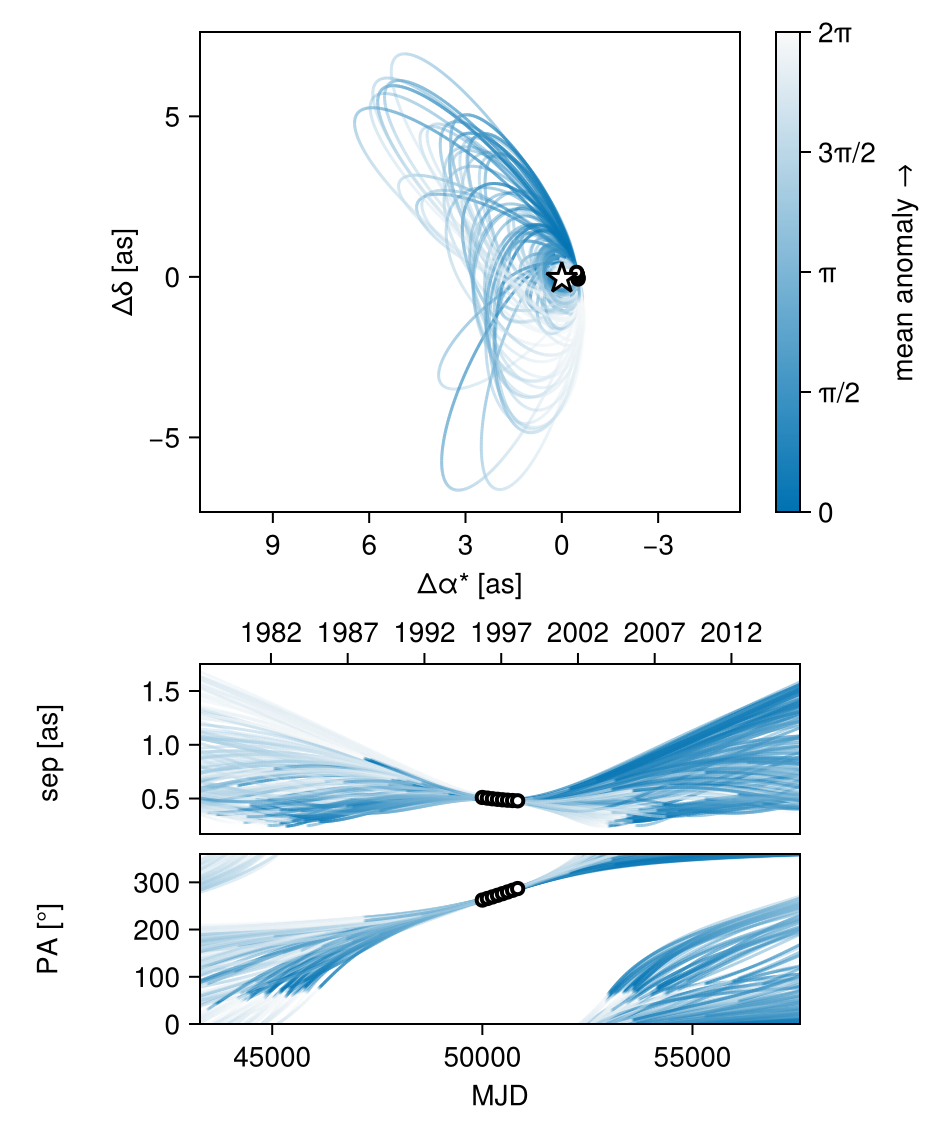

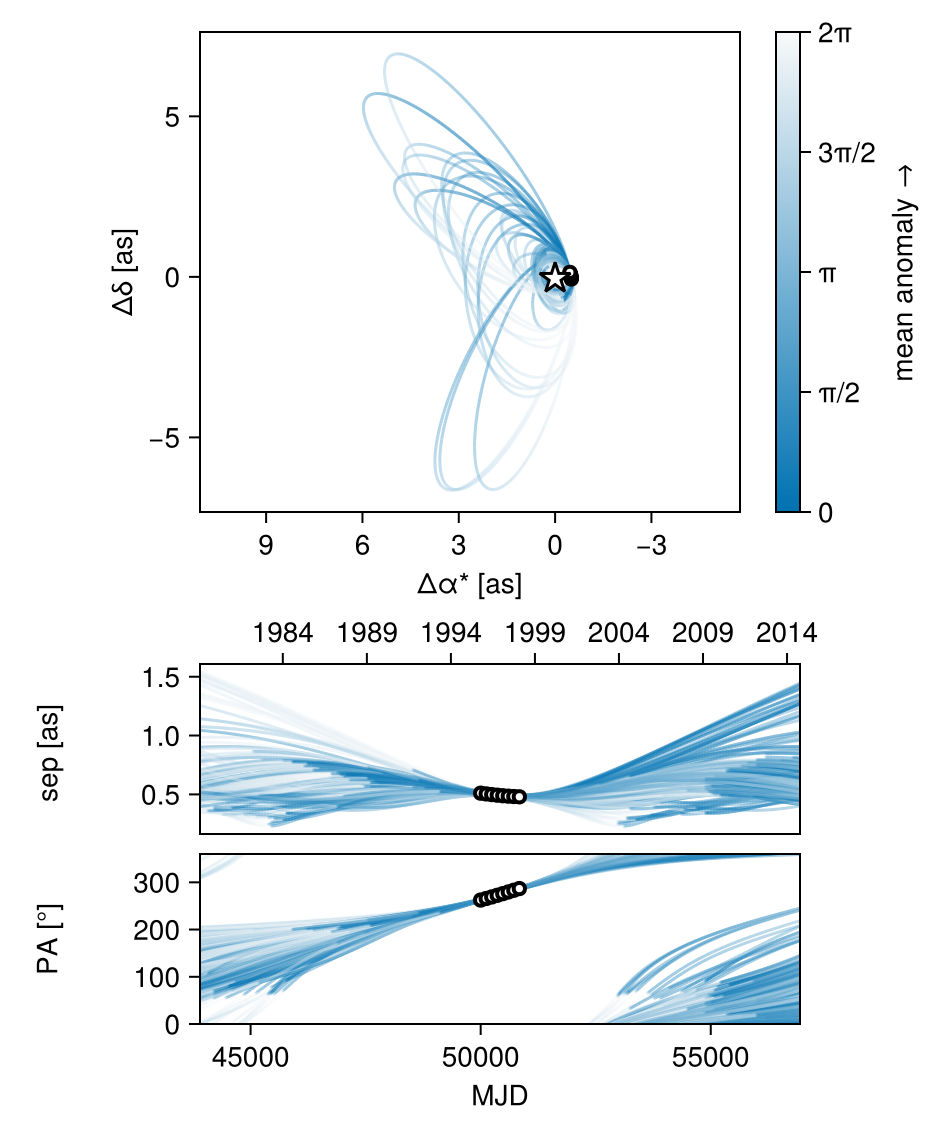

octoplot(model, chain_eccentric)

Circular Samples Only

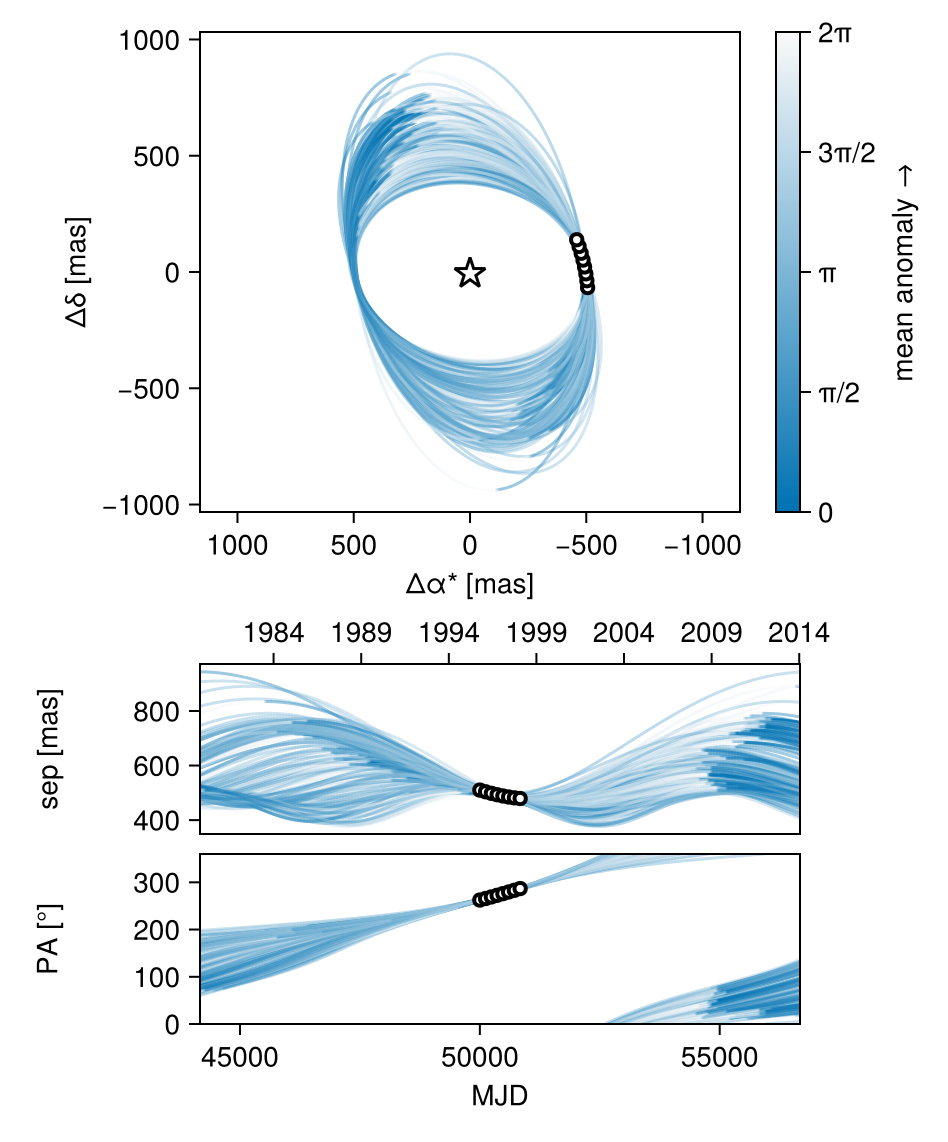

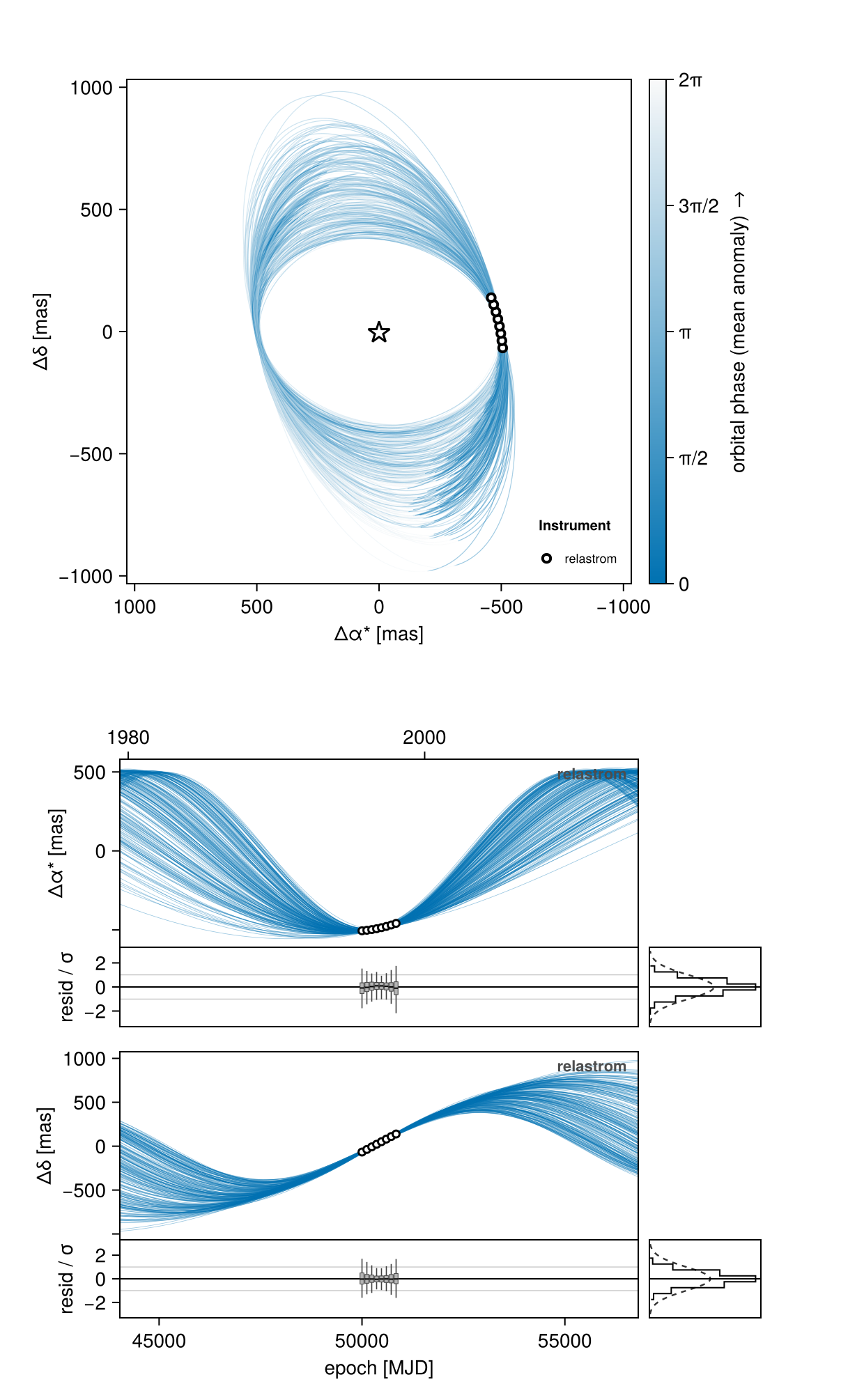

Similarly, we can plot only the circular orbit samples:

chain_circular = chain[chain[:b_eccentric][:] .== 0]
println("Number of circular samples: ", length(chain_circular))

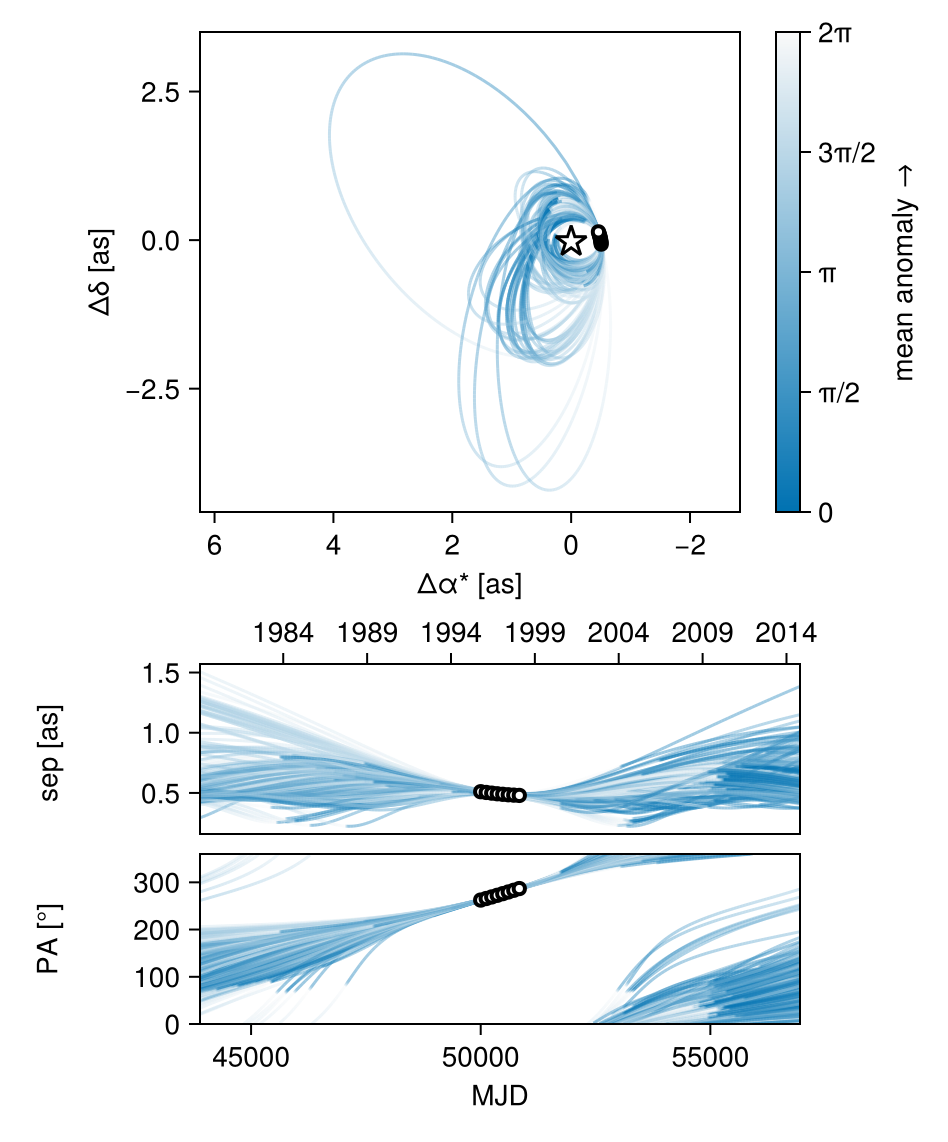

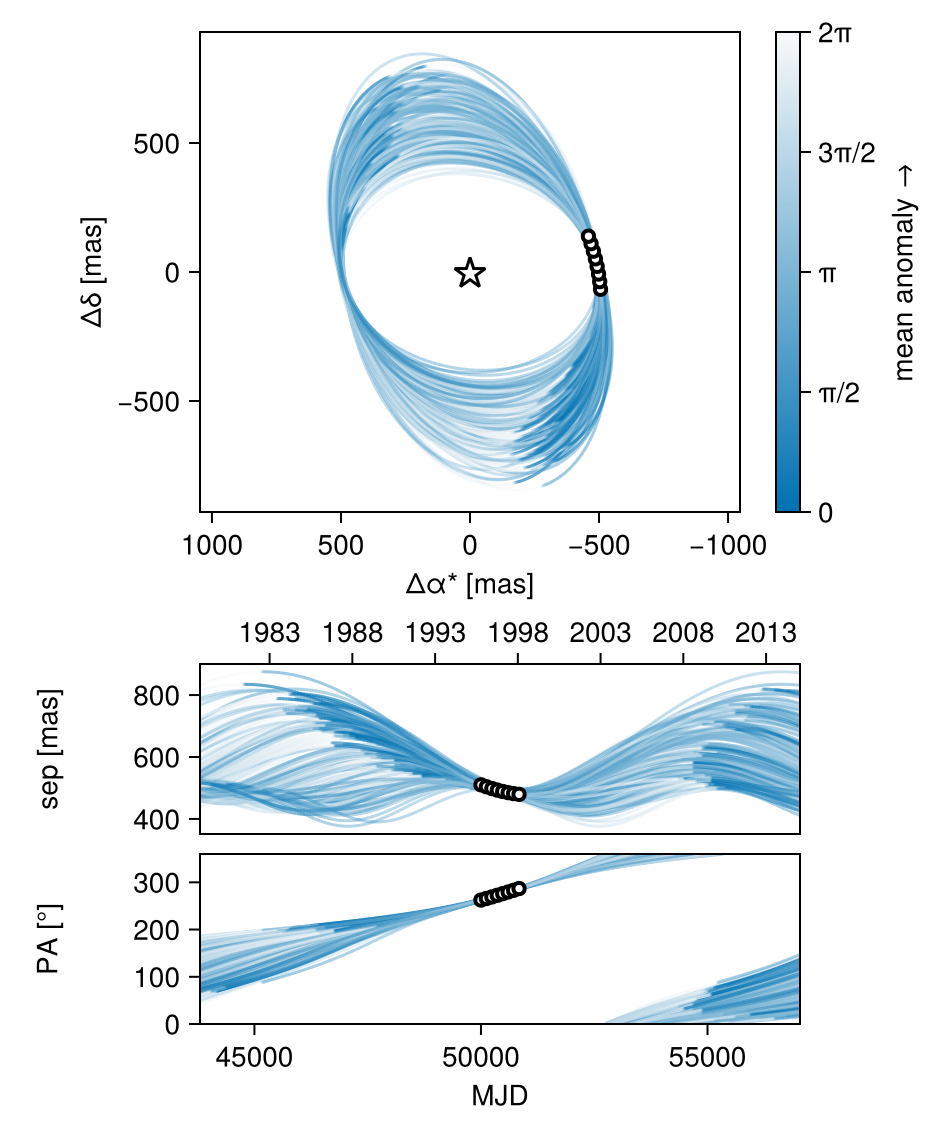

octoplot(model, chain_circular)

These subsetted plots help you visualize what each hypothesis predicts for your data.

Corner Plots

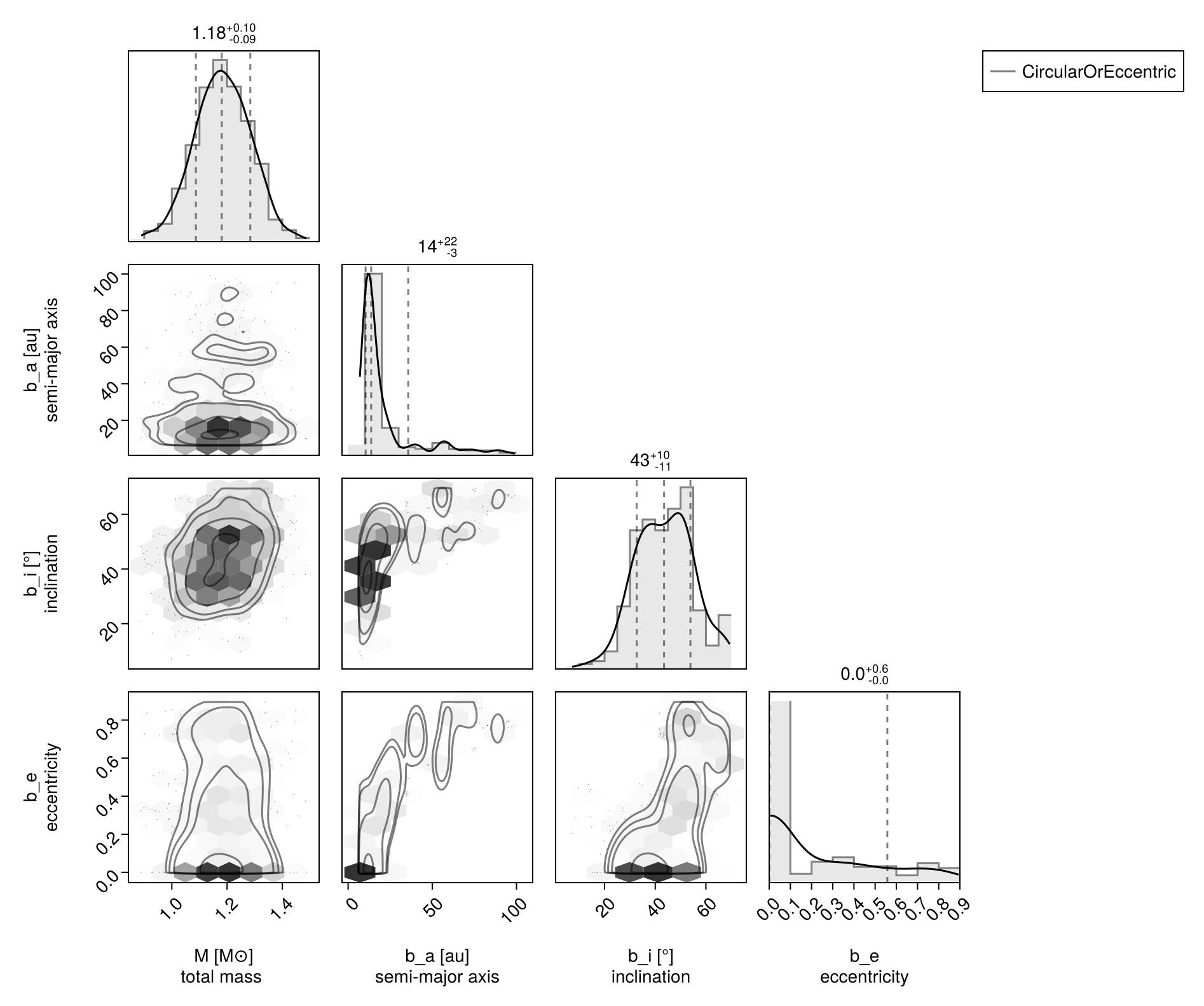

Let's examine the parameter correlations with a corner plot:

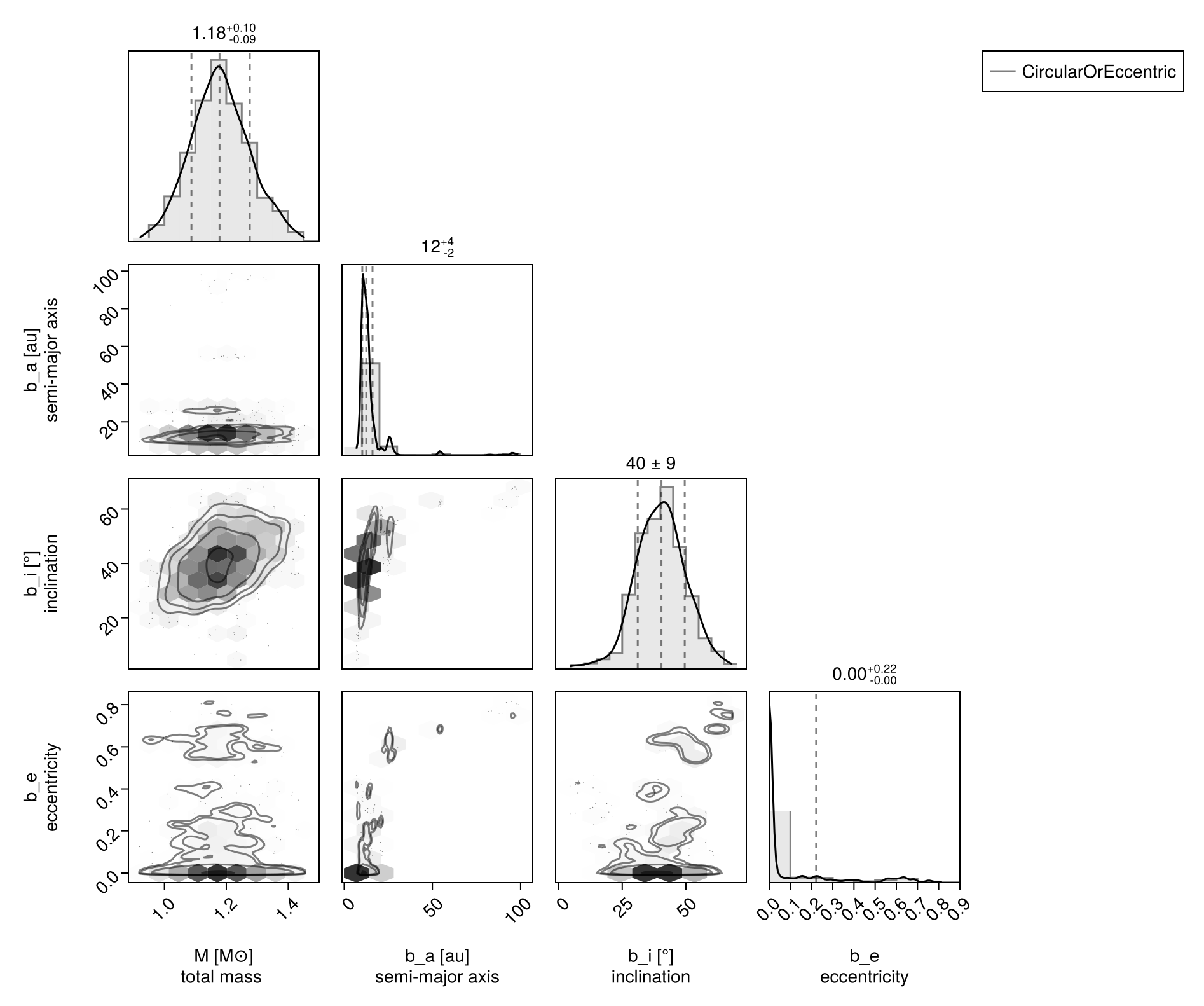

octocorner(model, chain, small=true)

Notice how the eccentricity parameter b_e has a spike at zero (circular orbits) and a continuous distribution above zero (eccentric orbits). This is the "spike and slab" structure!

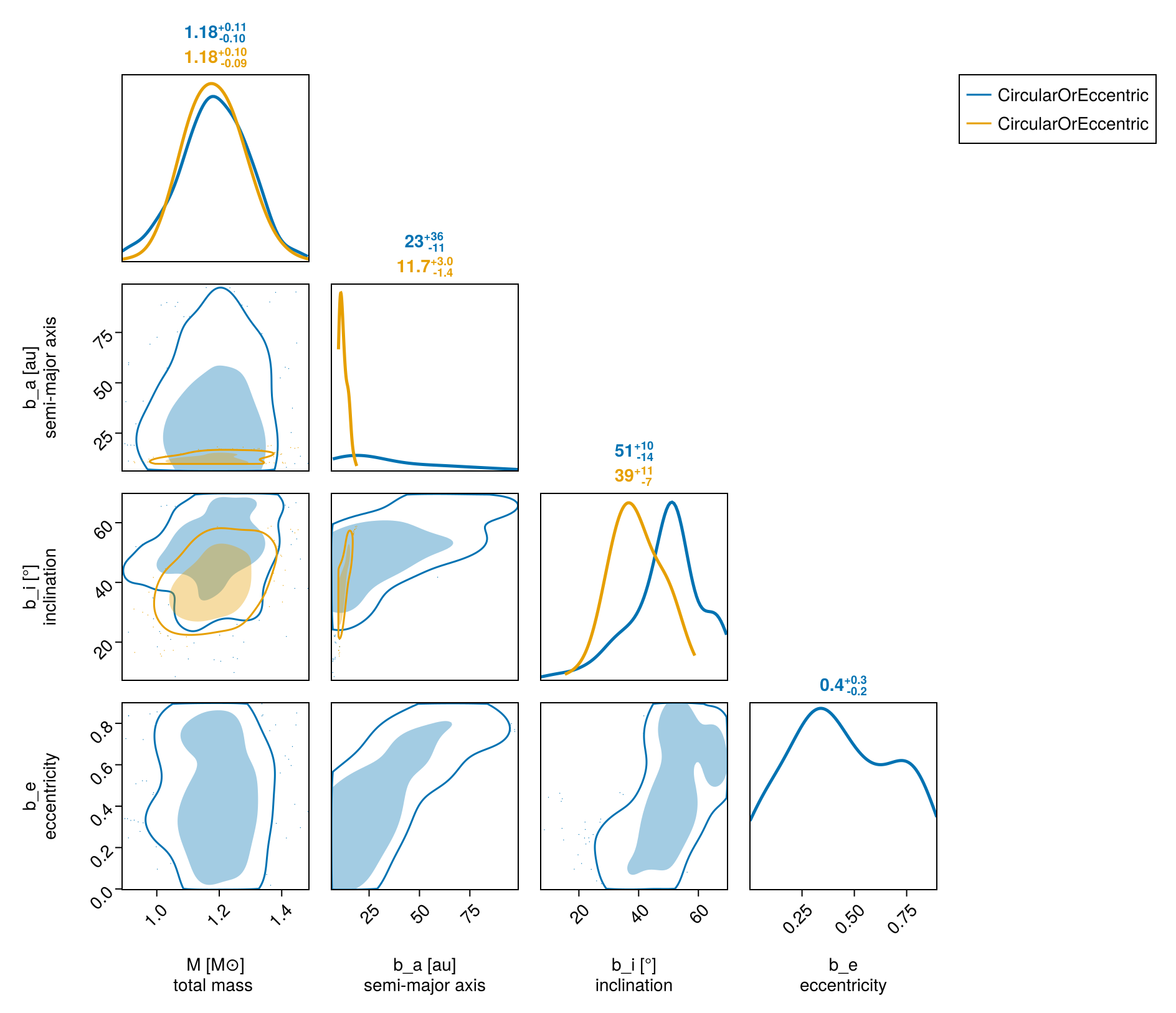

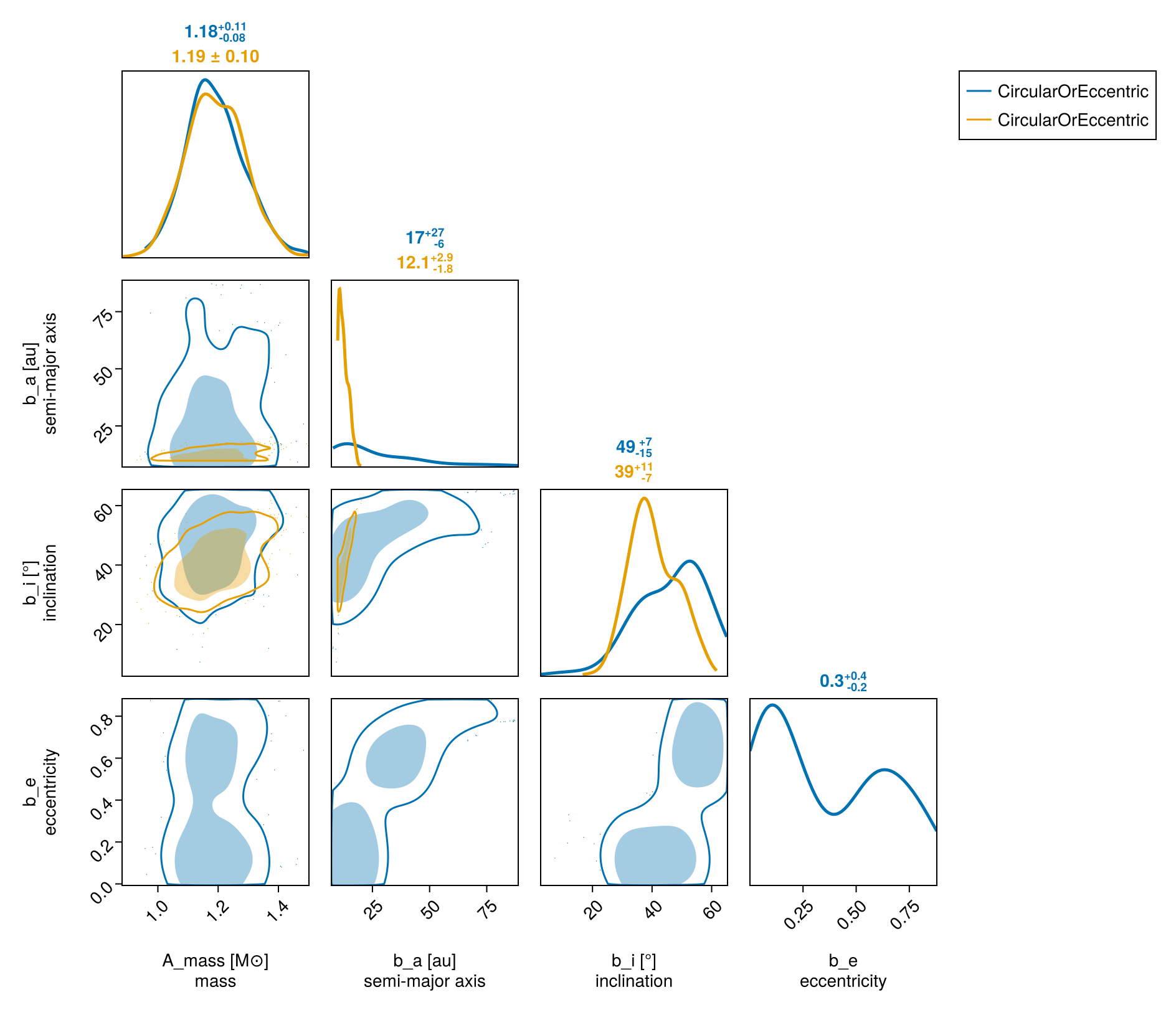

You can also compare the eccentric and circular subsets:

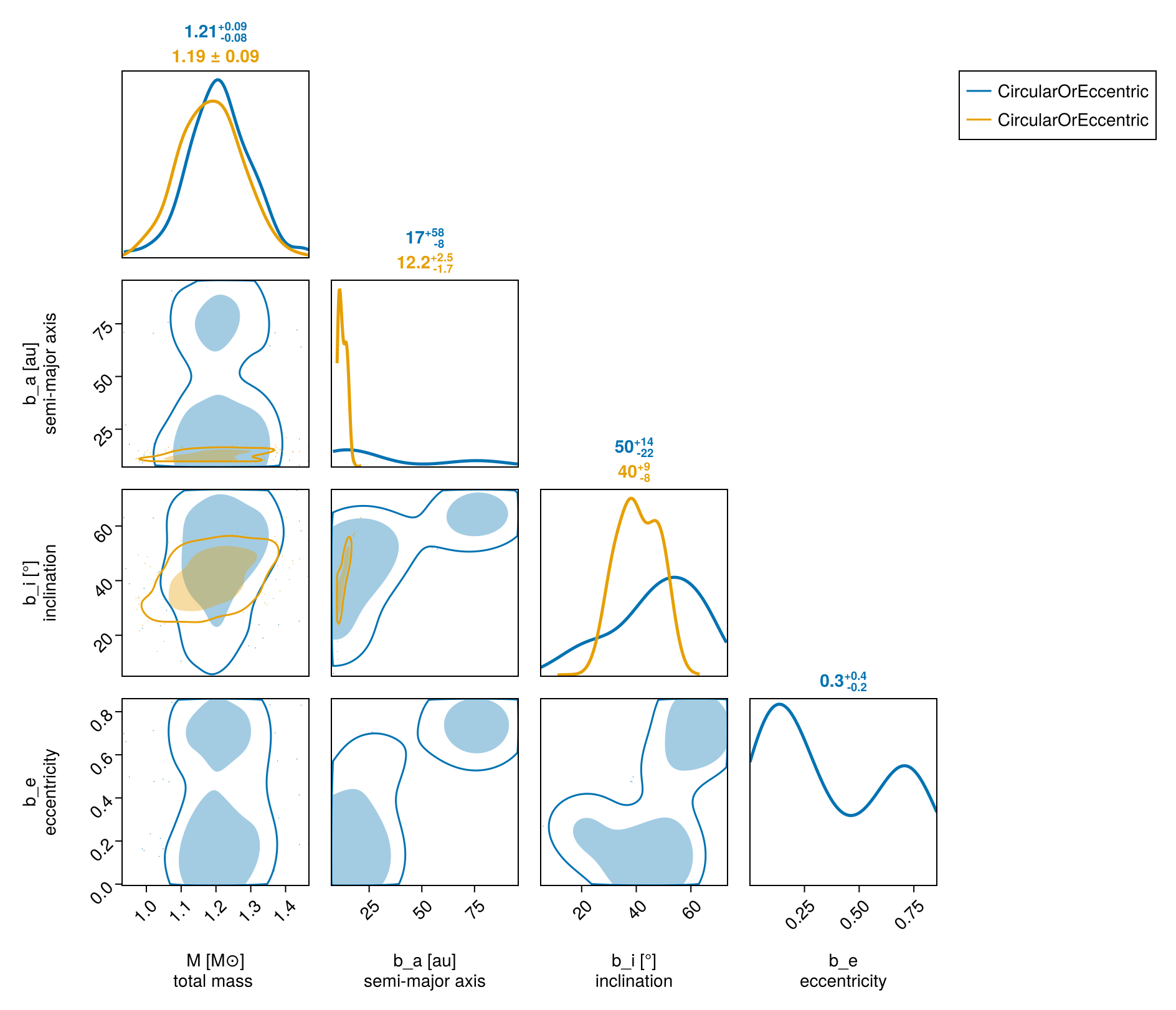

octocorner(model, chain_eccentric, chain_circular, small=true)

Generallization

1. Generalization: This technique can be extended to other discrete model choices, such as:
   • Coplanar vs non-coplanar multi-planet systems
   • Including vs excluding a Gaussian process for stellar activity
   • Different numbers of planets
